Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Voltage:
-
Customized
-
Power:
-
50w
-
Dimension(L*W*H):
-
450mm*650mm*1020mm
-
Weight (KG):
-
50
-
Powder Pipe:
-
3.5M
-
Cable Length:
-
2.5M
-
Weight:
-
25kg
-
Install location:
-
Customer Location
-
Control System:
-
button
-
Powder pump:
-
1
-
powder barrel:
-
1
-
Language:
-
English and Chinese
-
Installation:
-
video
-
spray gun:
-
1
Quick Details
-
Machine Type:
-
Powder Coating Machinery
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
circuit
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Voltage:
-
Customized
-
Power:
-
50w
-
Dimension(L*W*H):
-
450mm*650mm*1020mm
-
Weight (KG):
-
50
-
Powder Pipe:
-
3.5M
-
Cable Length:
-
2.5M
-
Weight:
-
25kg
-
Install location:
-
Customer Location
-
Control System:
-
button
-
Powder pump:
-
1
-
powder barrel:
-
1
-
Language:
-
English and Chinese
-
Installation:
-
video
-
spray gun:
-
1
2022 CE Best Performance Manual Powder Coating Machine
1-Specification
|
Part Name |
Quantity |
|

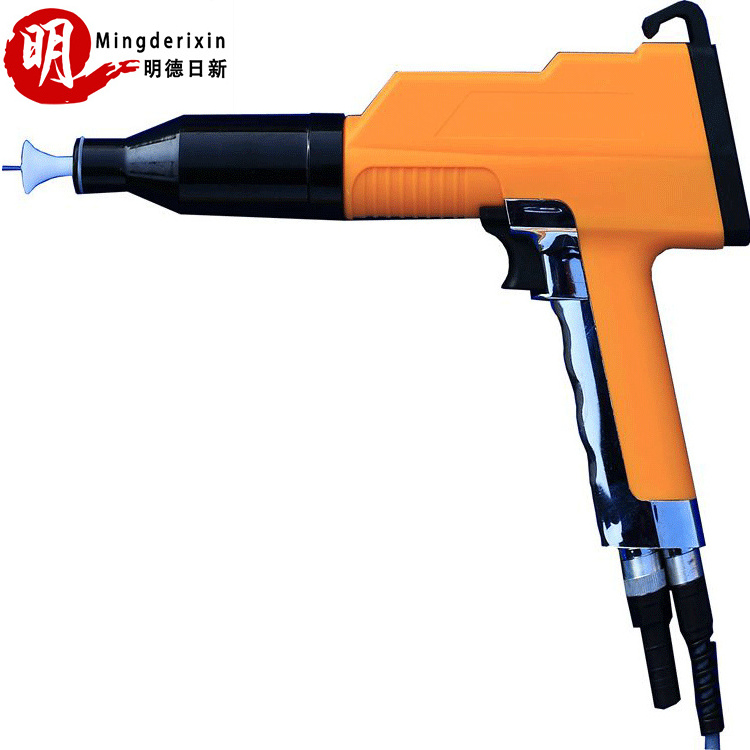

Gun |
1 SET |
|
Controller |
1 SET |
|
Low Temperature Soft Powder Pipe |
1 SET / 3.5Meters |
|
Vertical Powder Pump |
1 SET |
|
Stainless Steel Barrel |
1 SET / 40L |
|
Overflow Pipe |
1 SET |
|
Movable Trolley |
1 SET |
|
Oil and Water Separator |
1 SET |
|
Consumables |
Some |
2- Parameters
|
Electric Parameters |
||
|
1 |
Supply Voltage |
220-240V,customized |
|
2 |
Frequency |
50-60hz |
|
3 |
Power |
50W |
|
4 |
Security Grade |
IP54 |
|
5 |
Working Temperature |
0-40C |
|
Air Supply Parameters |
||
|
1 |
Compressed air of main interface diameters |
8meters |
|
2 |
Input air pressure |
4-8Bar |
|
3 |
Maximum Water Content |
1.3g/m3 |
|
4 |
Maximum Oil Content |
0.1mg/m3 |
|
Spraying Gun Parameters |
||
|
1 |
Maximum Output Voltage |
120kv |
|
2 |
Maximum Output Current |
120 µ A |
|
3 |
The length of Powder Tube |
3.5meters |
|
4 |
The length of Cable |
3.5meters |
|
5 |
The Maximum Powder Output |
650g/min |
|
Package ( Fumigation-free Wooden Box) |
||
|
1 |
Size |
650mm(L)*470mm(W)*950mm(H) |
|
2 |
Weight |
45.5KG |
3- One Year Consumables
|
|
||||
|
Mark NO. |
Parts Name |
Position |
Changing Frequency |
Quantity |
|
G-001 |
18mm nozzle |
Head of the gun |
High |
10pcs |
|
G-002 |
20mm nozzle |
Head of the gun |
High |
10pcs |
|
G-004 |
27mm nozzle |
Head of the gun |
High |
10pcs |
|
G-005 |
Flat nozzle |
Head of the gun |
Low |
1pcs |
|
G-008 |
Electrode holder |
Inside the gun |
Low |
4pcs |
|
G-009 |
Deflector |
Inside the gun |
Normal |
5pcs |
|
G-021 |
Powder pipe |
Inside the manual gun |
Normal |
2pcs |
|
P-001 |
Jet air drive pipe |
Inside the powder pump |
High |
10pcs |
|
P-019 |
Powder hose |
Connect the powder pump and manual gun |
Low |
1pcs |
4-Application
Advantage
1,Digital control system,display preset Voltage and currency at the same time.
2,Preset Voltage and currency be set by knobs, easy to operate.
3,Alarm automatically if over the preset parameters
4,Adjust the output static electricity automatically according the change of workpiece’s size and distance
5,Could supply large amount powder under low pressure.
6,The inside circuit region is Independent sea, avoiding the powder incoming.
7,Good quality pressure gauge
8,Good quality dust-proof powder switch
9,Control the useless power strictly,low heating value,work continuously and steadily.
