Quick Details
-
Weight:
-
200 KG
-
Name:
-
Extraction equipment
-
Material:
-
SUS304/316L
-
Application Industries:
-
Food/Drink
-
Main uses:
-
Industrial Distillation
-
Type:
-
Distillation Device
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online Support
-
Capacity:
-
10L-10000L
-
Sealing:
-
Machinery Seal
-
Package:
-
Wooden case
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RUIYUAN
-
Voltage:
-
220/380V
-
Weight:
-
200 KG
-
Name:
-
Extraction equipment
-
Material:
-
SUS304/316L
-
Application Industries:
-
Food/Drink
-
Main uses:
-
Industrial Distillation
-
Type:
-
Distillation Device
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online Support
-
Capacity:
-
10L-10000L
-
Sealing:
-
Machinery Seal
-
Package:
-
Wooden case
Product Description
Application
1.Essential oil distiller as a common product in producing Chinese tradition medicine, is often used to extract effective
ingredients from animals and plants and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.
2.Essential oil distiller is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, essential oil, fragrant oil composition of water distillation extraction process.
Structure

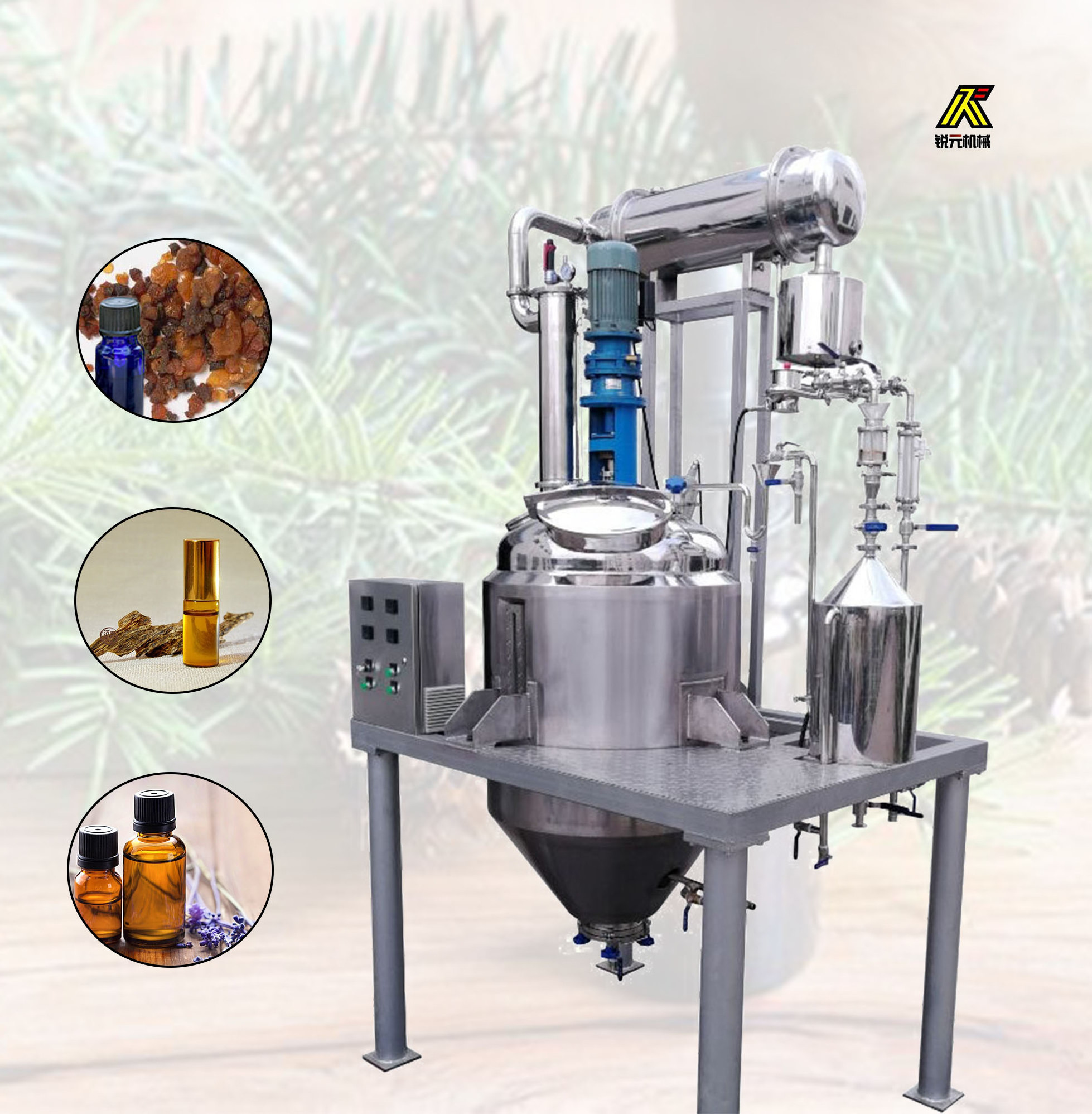

The device consists of distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.(Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.)
1.Essential oil distiller as a common product in producing Chinese tradition medicine, is often used to extract effective
ingredients from animals and plants and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.
2.Essential oil distiller is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, essential oil, fragrant oil composition of water distillation extraction process.
Structure
The device consists of distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.(Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.)
Specification
|
Parameter & Descprition
|
|
|
|
|
||||
|
Type
|
Volumn (L)
|
Heating Method
|
Cooling Area
|
Separator Volumn
|
||||
|
RY-JYTQ-50
|
50
|
Electricity or Steam
|
1
|
15
|
||||
|
RY-JYTQ-100
|
100
|
|
1.5
|
15
|
||||
|
RY-JYTQ-200
|
200
|
|
2
|
20
|
||||
|
RY-JYTQ-300
|
300
|
|
3
|
25
|
||||
|
RY-JYTQ-500
|
500
|
Steam
|
4
|
35
|
||||
|
RY-JYTQ-1000
|
1000
|
|
8
|
50
|
||||
|
RY-JYTQ-2000
|
2000
|
|
15
|
70
|
||||
|
RY-JYTQ-3000
|
3000
|
|
20
|
100
|
||||
|
RY-JYTQ-4000
|
4000
|
|
25
|
150
|
||||
|
RY-JYTQ-5000
|
5000
|
|
30
|
150
|
||||
