Quick Details
-
Max. Spindle Speed (r.p.m):
-
1000 r.p.m
-
Width of bed (mm):
-
330 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
600
-
Travel (X Axis)(mm):
-
450 mm
-
Travel (Z Axis)(mm):
-
680 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2000*1860*2600mm
-
Brand Name:
-
WOJIE
-
Model Number:
-
VTC630
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
4800
-
Marketing Type:
-
New Product 2022
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Spindle nose:
-
A2-8
-
X/Z axis travel:
-
450/680mm
-
X/Z Rapid traverse:
-
X:10 Z:10m/min
-
Function:
-
Machining Metal
-
Color:
-
Customers' Requirement
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
630
-
Year:
-
2022
-
Max. Spindle Speed (r.p.m):
-
1000 r.p.m
-
Width of bed (mm):
-
330 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
600
-
Travel (X Axis)(mm):
-
450 mm
-
Travel (Z Axis)(mm):
-
680 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2000*1860*2600mm
-
Brand Name:
-
WOJIE
-
Model Number:
-
VTC630
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
4800
-
Marketing Type:
-
New Product 2022
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Spindle nose:
-
A2-8
-
X/Z axis travel:
-
450/680mm
-
X/Z Rapid traverse:
-
X:10 Z:10m/min
-
Function:
-
Machining Metal
-
Color:
-
Customers' Requirement
Product Description
Product Application
This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.
This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.
Product main technical Specifications:
|
Specifications
|
VTC630
|
|
Max.Swing diameter
|
630mm
|
|
Max.Turning diameter
|
600 mm
|
|
Hydraulic chuck diameter
|
400mm
|
|
Spindle speed
|
50-1000rpm
|
|
Cutting feed rate
|
0.1-1000mm/min
|
|
Travel of toolpost
|
X:450mm Z:680mm
|
|
X axis rapid feed speed
|
15000mm/min
|
|
Z axis rapid feed speed
|
12000mm/min
|
|
Tool holder form
|
Tool holder (hydraulic tool holder)
|
|
Main motor power
|
15Kw 143NM
|
|
Feed motor power and torque
|
2.4 kW /15NM
|
|
Cooling pump motor power and flow
|
250W / 40L/min
|
|
Tool positioning accuracy
|
X:0.015mm Z:0.02mm
|
|
Tool reset accuracy
|
X:0.012mm Z:0.012mm
|
|
Weight
|
4800kg
|
|
Overall dimension of machine tool(L*W*H)
|
2000×1860×2600mm
|

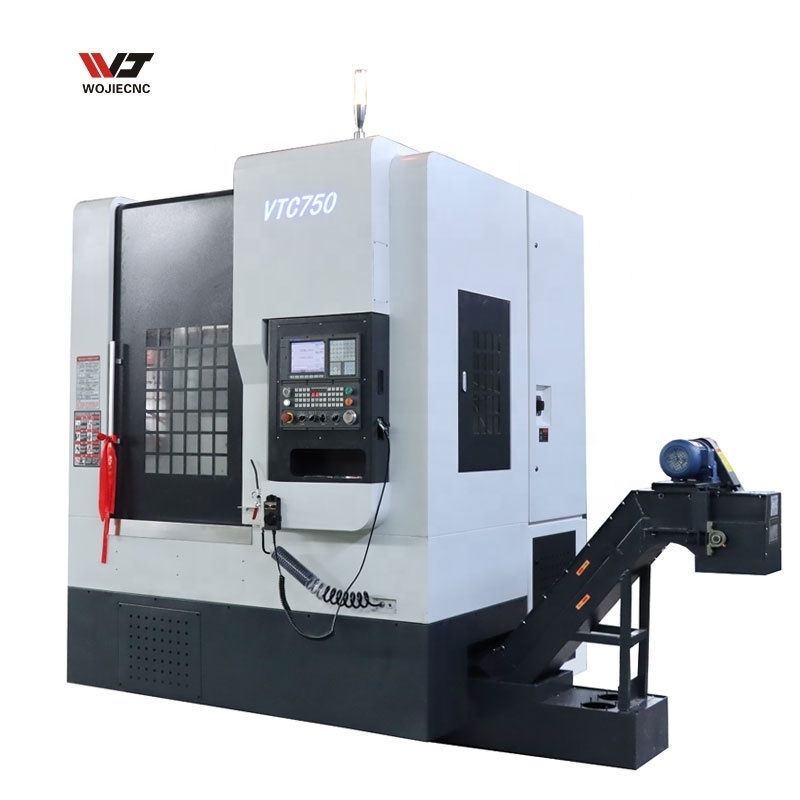

Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
