Quick Details
-
Application:
-
IPTV
-
Input:
-
HDMI
-
Output:
-
IP Output
-
Video encoding:
-
H.265/HEVC
-
Audio encoding:
-
MPEG-1 Layer 2
-
Protocol:
-
UDP RTP Protocol
-
Code Rate Control:
-
CBR
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5022F
-
Application:
-
IPTV
-
Input:
-
HDMI
-
Output:
-
IP Output
-
Video encoding:
-
H.265/HEVC
-
Audio encoding:
-
MPEG-1 Layer 2
-
Protocol:
-
UDP RTP Protocol
-
Code Rate Control:
-
CBR
Best Price Iptv HD Encoder H.264 Ip Video Cable Tv Digital Cable Encode
Outline

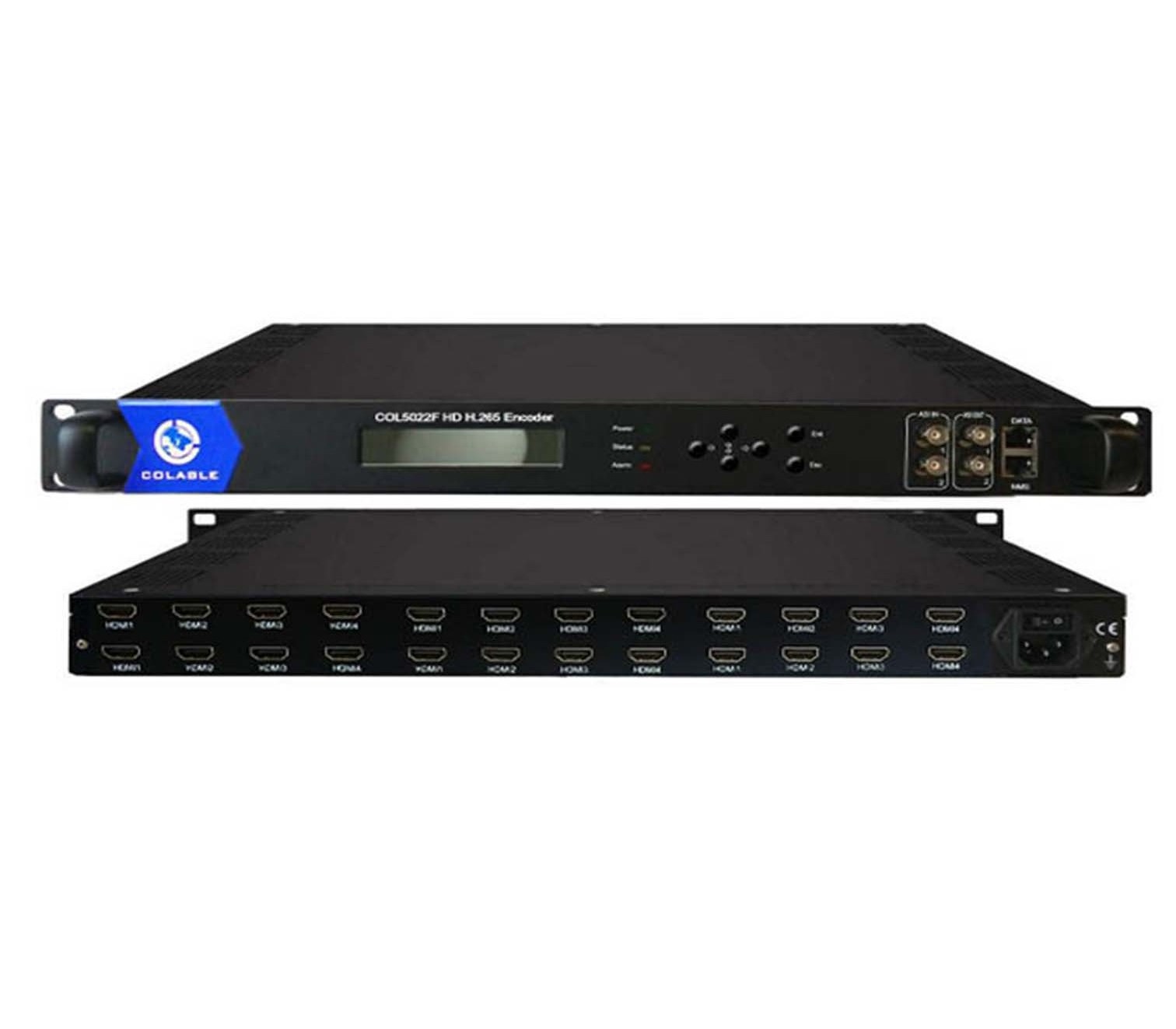

COL5022F HD H.265 encoder is a professional high integration device which includes encoding and multiplexing. It supports max 6 modules with each module 4CH HDMI input .Besides, 2 ASI and 1 GE input makes it be used in wider project solution . In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Main Features
ü Max 6 modules with each module 4CH HDMI input , HEVC /H.26 5 , MPEG4 AVC/H.264 video encoding format
ü 8/12/16/24 HDMI inputs with 8/12/16/24 SPTS an d 1 MPTS output , IP output over UDP and RTP protocol
ü 2 ASI inputs
ü 2 ASI Independent output (optional) as copy of 1 MPTS
ü Support AC3 audio encoding
ü Support “Null PKT Filter” function
ü Support PID Remapping/ PCR accurate adjustin g
Specification
|
input |
HD(8/12/16/24 HD) |
|
|
2 ASI inputs |
||
|
output |
2 ASI output |
|
|
IP output:8/12/16/24 HD inputs with 8/12/16/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol |
||
|
video |
Encoding |
MPEG-4 AVC/H.264 |
|
Resolution |
Input:1920× 1080_60P, 1920 × 1080_60i, 1920× 1080_50P, 1920 × 1080_50i, 1280× 720_60P, 1280 × 720_50P, 720× 576_50i,720 × 480_60i, |
|
|
Output:1920× 1080_30P,1920 × 1080_25P,1280 × 720_30P,1280 × 720_25P,720x576_25P,720x480_30P |
||
|
Bit-rate |
1Mbps~13Mbps( each channel) |
|
|
Rate Control |
CBR |
|
|
Audio |
Encoding |
MPEG1 Layer2 |
|
Sampling rate |
44.1KHz and 48Khz |
|
|
Bit-rate |
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps |
|
|
Resolution |
24-bit |
|
|
Audio Gain |
0-255 Adjustable |
|
|
Multiplexing |
Maximum PID Remapping |
180 output pids per channel |
|
Function |
PID remapping ( automatically or manually) |
|
|
Accurate PCR adjusting |
||
|
System function |
Network management(WEB) |
|
|
Chinese and English language |
||
|
Ethernet software upgrade |
||
|
Miscellaneous |
Dimension(W×L×H) |
483mm × 410mm × 44mm |
|
weight |
6kg |
|
|
Environment |
0~45℃ (work) ; -20~80 ℃ (storage) |
|
|
Power requirements |
AC100~240V, 50/60Hz Dual Power supply(optional) |
|
