- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YXMAP1013
-
Product name:
-

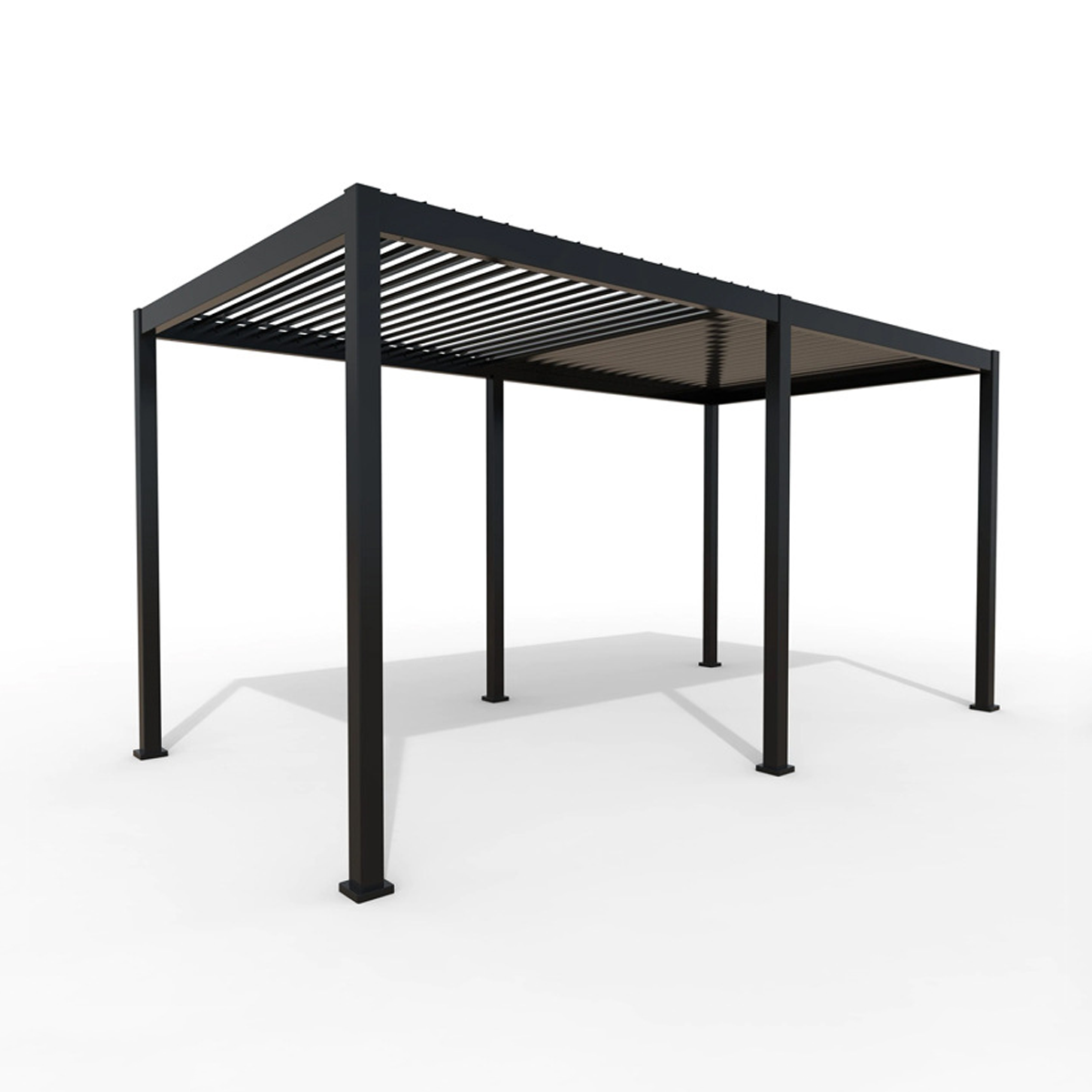

Motorized louvered pergola
-
Application:
-
Outdoor,Balcony,Garden Decorations
-
Color:
-
White,black,brown,grey
-
Style:
-
LED light pergola with zip screen blinds
-
Function:
-
UV Protection, Waterproof, Sunshade
-
Keyword:
-
Modern pergola
-
Accessories:
-
Zip Roller Blind
-
Bolts Structure:
-
3D Installation instructions Provided
-
Remote control:
-
Individual control or group control
Quick Details
-
Pressure Treated Wood Type:
-
NATURE
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
X-KPR
-
Model Number:
-
YXMAP1013
-
Product name:
-
Motorized louvered pergola
-
Application:
-
Outdoor,Balcony,Garden Decorations
-
Color:
-
White,black,brown,grey
-
Style:
-
LED light pergola with zip screen blinds
-
Function:
-
UV Protection, Waterproof, Sunshade
-
Keyword:
-
Modern pergola
-
Accessories:
-
Zip Roller Blind
-
Bolts Structure:
-
3D Installation instructions Provided
-
Remote control:
-
Individual control or group control
|
|
Blade
|
Beam
|
Post
|
||
|
Size
|
160 mm*33 mm
200 mm*25 mm
|
160 mm*120 mm
160 mm*202 mm
|
120 mm*120 mm
|
||
|
Thickness of material
|
2.0 mm
|
2.0 mm/3.0 mm
|
2.0 mm
|
||
|
Material
|
Aluminum alloy 6063 T5
|
|
|
||
|
Max safe span range
|
3000 mm
|
4000 mm
|
2800 mm or customized
|
||
|
Color
|
Dark Grey with Shiny Silver Traffic White and Customized Color According to
RAL Color Number
|
|
|
||
|
Motor
|
Motor only can be outside ( keep in 30 square meter)
|
|
|
||
|
LED
|
LED:Standard LED around,RGB can be optional
|
|
|
||
|
Typical Finished
|
Durable Powder Coated or PVDF Coating for Exterior Application
|
|
|
||
|
Motor Certification
|
IP67 testing report, TUV, CE, SGS
|
|
|
||
FAQ
Q: What is the material used for your pergola?
A: Our pergola is made from aluminum alloy 6063 T5 for the beam, post, and accessories. The accessories also include stainless steel 304 and brass h59.
Q: What is the maximum span of your louver blades?
A: The louver blades can span up to 4 meters without any sagging.
Q: Can it be wall-mounted?
A: Yes, our aluminum pergola can be attached to an existing wall.
Q: What color options are available?
A: We offer two standard colors, RAL 7016 anthracite grey and RAL 9016 traffic white. Customized colors are also available.
Q: What sizes of pergolas do you offer?
A: We are a factory, so we can custom-make pergolas in various sizes according to our customers' requests.
Q: What are the specifications for rainfall intensity, snow load, and wind resistance?
A: Rainfall intensity: 0.04 to 0.05 liters per second per square meter. Snow load capacity: Up to 200 kilograms per square meter. Wind resistance: The pergola can withstand winds of up to 12 when the blades are closed.
Q: What additional features can be added to the awning?
A: We offer an integrated LED lighting system, zip track blinds, side screens, heaters, and an automatic wind and rain sensor that will close the roof when it starts raining.
Q: What is your delivery time?
A: Our usual delivery time is 10-20 working days after receiving a 50% deposit.
Q: What are your payment terms?
A: We accept a 50% payment in advance, and the remaining 50% is due before shipment.
Q: How do you package your products?
A: We use wooden box packaging, which does not require logging or fumigation.
Q: What warranty do you offer for your products?
A: We provide an 8-year warranty for the pergola frame structure and a 2-year warranty for the electrical system.
Q: Do you provide detailed installation instructions or videos?
A: Yes, we will provide you with installation instructions and videos for your convenience.
