Quick Details
-
Product name:
-
2 wheel walking tractor mini tractor 12hp two wheel tractor
-
Rotary Tilling width:
-
600mm
-
Rated Power:
-
8.82kw 12HP
-
Name:
-
2 wheel walking tractor mini tractor 12hp two wheel tractor
-
Overall Size:
-
2150*960*1250mm
-
Steering system type:
-
All hydraulic front wheel steering
-
Implements:
-
Disc Plough Harrow Cultivator Fertilizer Harvester Rotary
-
Tire:
-
6.00-12
Quick Details
-
Brand Name:
-
ACME
-
Place of Origin:
-
Hubei, China
-
Weight:
-
340 KG
-
Product name:
-
2 wheel walking tractor mini tractor 12hp two wheel tractor
-
Rotary Tilling width:
-
600mm
-
Rated Power:
-
8.82kw 12HP
-
Name:
-
2 wheel walking tractor mini tractor 12hp two wheel tractor
-
Overall Size:
-
2150*960*1250mm
-
Steering system type:
-
All hydraulic front wheel steering
-
Implements:
-
Disc Plough Harrow Cultivator Fertilizer Harvester Rotary
-
Tire:
-
6.00-12
2 wheel walking tractor mini tractor 12hp two wheel tractor
|
Model |
AL131 |
|
Type |
KUBOTA type |
|
Dimension of Tractor |
Length: 2960mm Width(adjustable):1050/1200mm Height: 1220mm |
|
Engine pulley diameter(standard) |
140mm(5.5'') |
|
Transmission pulley diameter(standard) |
180mm(7'') |
|
Rubber wheel size |
7.50-16 |
|
Cage wheel diameter |
800mm |
|
Towing pin diameter |
26mm |
|
V-belt |
Length: 1880mm(74'') Qty.:2pcs |
|
Brake system |
Small-scale braking |
|
Clutch type |
Dry multiple disc clutch |
|
Lubricating Oil |
SAE90 |
|
Lubricating Oil Capacity |
5.5-6L |
|
Tractor max. speed |
23.5km/h |
|
Transmission ratio |
Low speed 1st Gear: 44:1 Mid speed 2nd Gear: 23:1 High speed 3rd Gear: 8:1
Reverse Gear: 56:1 |
|
Tractor Weight(without engine) |
210kgs |
|
diesels engine max.output |
12HP 14Hp |
If you want to know more details, Click " Send " on the right,Now!

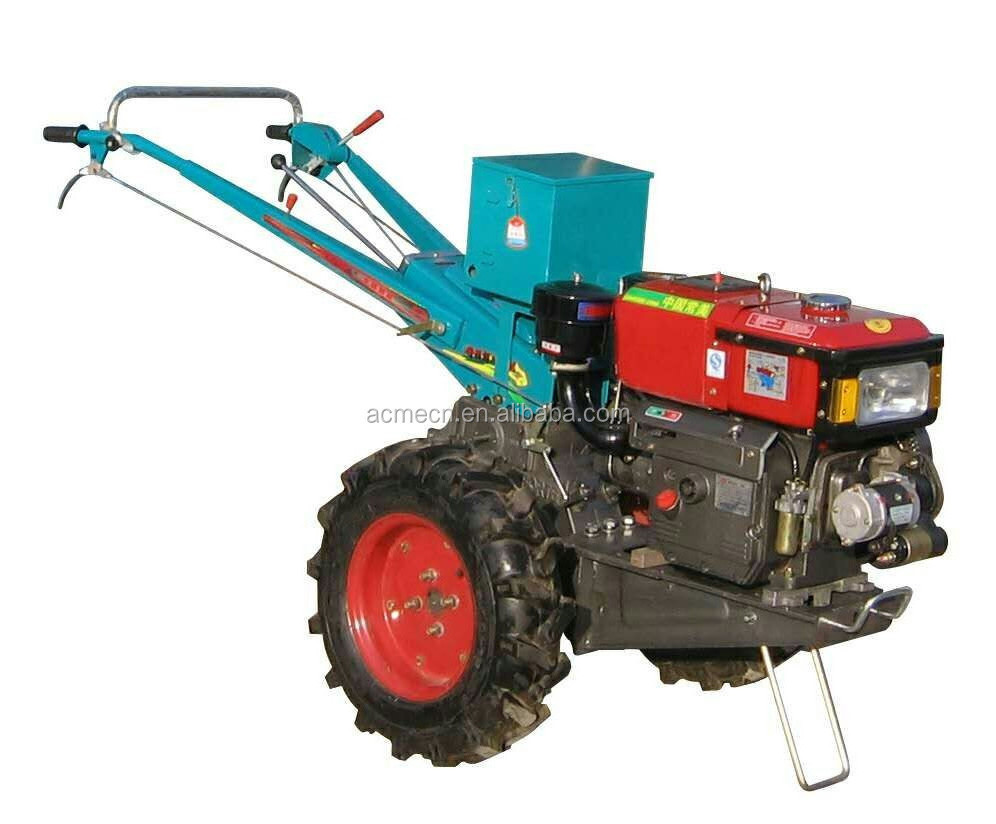

Detailed Tractor Picture View
