Quick Details
-
Voltage:
-
3.5KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lucky King
-
Dimension(L*W*H):
-
3200*900*1650
-
Weight:
-
900 KG
-
After-sales Service Provided:
-
Overseas service center available, Online support, Video technical support
-
Product name:
-
food packing cup filling and sealing machine
-
Filling speed:
-
2000-12000cups/Hour
-
Filling volume:
-
60-1000ml
-
Usage:
-
Beverage Packaging
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
4000BPH, 20000BPH
-
Packaging Material:
-
Plastic, Paper, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Voltage:
-
3.5KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lucky King
-
Dimension(L*W*H):
-
3200*900*1650
-
Weight:
-
900 KG
-
After-sales Service Provided:
-
Overseas service center available, Online support, Video technical support
-
Product name:
-
food packing cup filling and sealing machine
-
Filling speed:
-
2000-12000cups/Hour
-
Filling volume:
-
60-1000ml
-
Usage:
-
Beverage Packaging
-
Certification:
-
CE

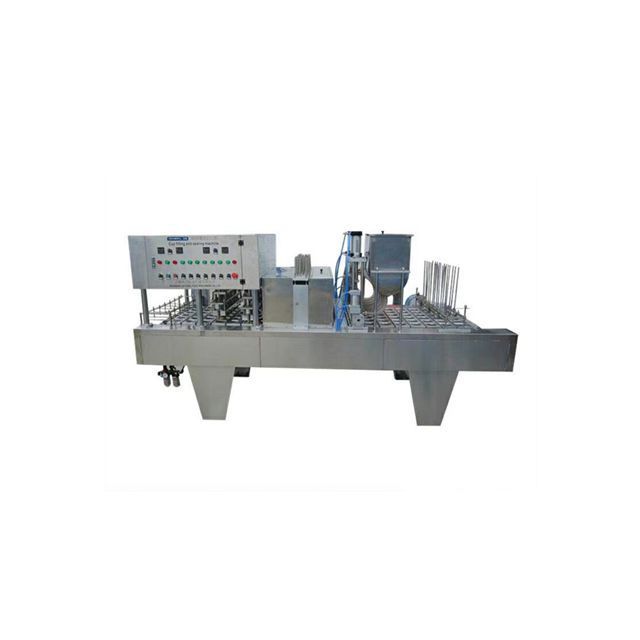

This machine is specially designed for liquid product (or other kinds of semi-liquid products, such as water, juice, yogurt, wine, milk etc. ) to be filled and sealed inside empty plastic cups. This filling and sealing machines applied with world famous electrical and pneumatic components. All the parts of machine contact with powder are made of stainless steel and food grade plastic tubes.
It is convenient and reliable. It is a kind of program-controlled machine that is universal and functional. Features are compact structure, high automation, easy to use, stable performance, simple maintenance, and high production efficiency and 24-hour continuous work. Components (e.g. Stainless steel, aluminum, copper and other corrosion-resistant) are in line with Food Hygiene Law.
Working process
Cup loading, filling, UV sterilization, foil loading, twice sealing, sealed cups output.
|
Work Process |
# Empty cup loading |
Cups stack together, loading one by one, pneumatic type, 4 columns in total. |
|
# Filling |
Piston filling type, volume can be adjusted easy, all parts contact with yogurt are made of SUS-304 and food grade tubes.. |
|
|
# UV sterilization |
Sterilize cups and products. |
|
|
# Foil loading |
Pick and place foils on filled cups by silicone suctions, 4 columns in total. |
|
|
# First sealing |
4 copper sealing heads, temperature can be adjusted, pneumatic sealing type. |
|
|
# Second sealing |
4 copper sealing heads, temperature can be adjusted, pneumatic sealing type. |
|
|
# Finished cups output |
Finished cups automatic dropping down. |
|
Technical parameters |
Model |
LK-86 |
|
Filling nozzle |
4 pieces |
|
|
Capacity |
4000 cups/hour |
|
|
Power |
3.5 kw |
|
|
Air |
0.65 m3/min |
|
|
Power source |
Custom build |
|
|
Temperature |
0-400 degree centigrade |
|
|
Weight |
900 kg |
|
|
Dimension |
(L)3200*(W)900*(H)1650 mm |
|
|
Wooden |
(L)3300*(W)1000*(H)1800 mm |
|
|
Material: The frame made of U-steel and antirust paint, then cover by SUS-304. |
||
