Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYUN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
Free spare parts
-
certificate:
-
ISO9001:2008
-
standards:
-
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
-
The strength specifications:
-
160N/mm-800N/mm
-
Belt width:
-
100-3000mm
-
Thickness:
-
5-20mm
-
Fabric Material:
-
ep/polyester
-
plies:
-
2-10ply
-
tensile Strength:
-
9-25MPA
-
application:
-
coal mine, cement industry, power plant ETC
Quick Details
-
Power:
-
0.4kW - 22kW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500-2000mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYUN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
Free spare parts
-
certificate:
-
ISO9001:2008
-
standards:
-
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
-
The strength specifications:
-
160N/mm-800N/mm
-
Belt width:
-
100-3000mm
-
Thickness:
-
5-20mm
-
Fabric Material:
-
ep/polyester
-
plies:
-
2-10ply
-
tensile Strength:
-
9-25MPA
-
application:
-
coal mine, cement industry, power plant ETC
polyester rubber conveyor belt,polyester abrasion resistant conveyor belt
Our standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc

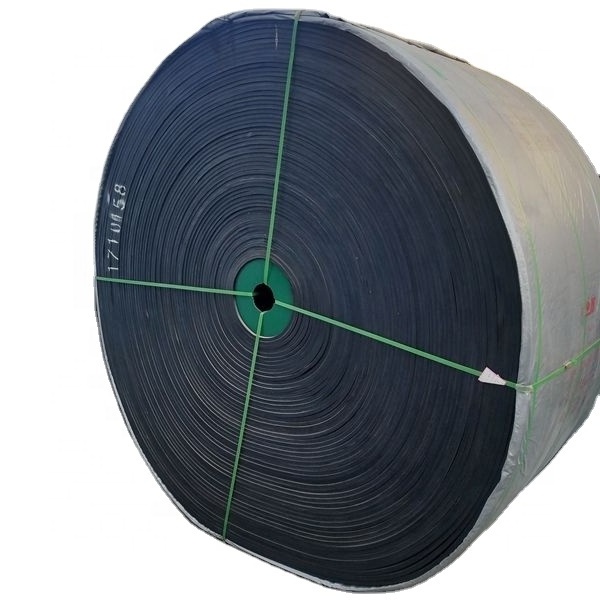

EP conveyor belt: ( polyester conveyor belt ) is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and
good elasticity. Conveying small and not large massiveness materials and biscuit materials. Applicable
for conveying long and not very long distance materials, weight materials and materials that is vey long and its sliding rate is very fast.
Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric
conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Conveyor belt,rubber belt,rubber sheet,EP belt,steel belt,steel conveyor belt,cotton belt,nylon belt,nylon rubber belt,nylon conveyor belt,steel cord conveyor belt.
Structure:
It uses polyester canvas as carcass, its structure is the same as General-used Conveyor Belt.
Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
types:
Besides General-used EP Belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type,
Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,
High-grade type and etc.
| fabric | fabric structure | fabric type | fabric thickness (mm/p) | strength(N/mm) | cover thickness(mm) | ||||||
|
warp |
weft |
2ply | 3ply | 4ply | 5ply | 6ply |
top
cover |
bottom cover | |||
|
polyester (EP) |
polyester |
polyamide |
EP100 | 0.85 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 |
| EP125 |
0.90 |
250 | 375 | 500 | 625 | 750 | |||||
|
EP150 |
1.00 |
300 | 450 | 600 | 750 | 900 | |||||
|
EP200 |
1.10 |
400 | 600 | 800 | 1000 | 1200 | |||||
|
EP250 |
1.15 |
500 | 750 | 1000 | 1250 | 1500 | |||||
|
EP300 |
1.25 |
900 | 1200 | 1500 | 1800 | ||||||
|
EP400 |
1.45 |
1600 | 2000 | 2400 | |||||||
|
EP500 |
1.55 |
2000 | 2500 | 3000 | |||||||
Polyster Conveyor Belt workshop
High Quality Control
Application
Metallurgy, building materials, power, ports, mining, quarries, sandpits, etc.
the belt can be made into endless belt, the convering rubber can be made into pit, chevron, horizontal, etc.
Package & Transport
kinds of our conveyor belt you can choose
About US
Besides we can manufacture the conveyor rollers and conveyor idlers according to the buyers' requirements
