Touch screen & PLC control
LCD display
Frequency converter of high efficiency to control roll speed;
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
180 KG
-
Number of spindles:
-
2
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or Wool
-
Twist range:
-
50~250twists/meter
-
Output capacity:
-
0.25~0.5kg/h
-
Roll diameter:
-
25mm
-
Output speed:
-
Max. 12m/min
-
Flyer speed:
-
Max.600rpm
-
Power supply:
-
AC220V 50Hz, 3KW
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
lab
-
Production Capacity:
-
500
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
180 KG
-
Number of spindles:
-
2
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or Wool
-
Twist range:
-
50~250twists/meter
-
Output capacity:
-
0.25~0.5kg/h
-
Roll diameter:
-
25mm
-
Output speed:
-
Max. 12m/min
-
Flyer speed:
-
Max.600rpm
-
Power supply:
-
AC220V 50Hz, 3KW
Product Description

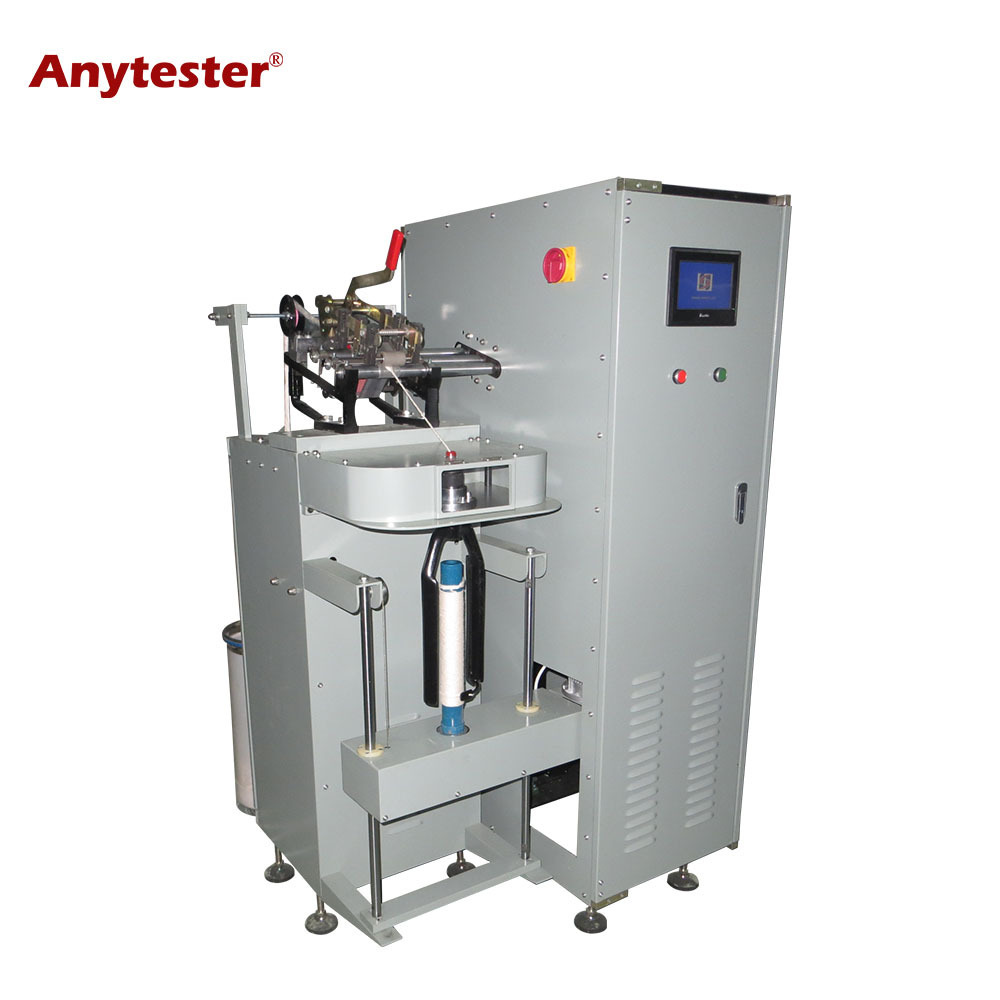

AT205 Laboratory Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT205 Laboratory Roving Machine is used to make roving from drawn sliver.
Feature
Easy to operate
Skilled design
Pressurizing system :spring pressure cradle
Three-up-three-down drafting structure;
Specification
|
Model
|
|
AT205
|
|
||
|
Number of spindles
|
|
1,2, 4 or customized
|
|
||
|
Fiber type
|
|
Cotton or cotton-type chemical fibers
|
|
||
|
Customized for wool
|
|
Customized for wool
|
|
||
|
Twist range
|
|
50~250twists/meter
|
|
||
|
Draft range
|
|
Approx. 2~50
|
|
||
|
Output capacity
|
|
0.25~0.5kg/h
|
|
||
|
Roll diameter
|
|
¢25mm
|
|
||
|
Output speed
|
|
Max. 12m/min
|
|
||
|
Flyer speed
|
|
Max.600rpm
|
|
||
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Contacting us
Packing & Delivery
|
Packaging
|
|
|
|
Size(cm)
|
73 (L) * 72 (W) * 168.5 (D)
|
|
|
Weight
|
260 Kg
|
|
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
30~40 days after receiving payment for one container
|
|
|
||
