The cassette seals are generally made up of a sleeve, sealing lip with a spring and several anti-dust lips integrated into a
labyrinth system to protect against external pollution, and are distinguished by greater system reliability and longevity.
Furthermore, their friction surface, which has been adjusted and finished beforehand, does not require any shaft maintenance
during replacement.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Customization
-
Product name:
-
cassette oil seal
-
Material:
-
Custom Compound
-
Application:
-
Industry
-
Color:
-
Customers Required
-
Feature:
-
Oil Resistance
-
Type:
-
TC TB SB SC TA.etc.
-
Certificate:
-
ISO
-
Standard or Nonstandard:
-
Customizable Acceptable
-
Model:
-
6000itms
-
Service:
-
Customize Special Sizes
Quick Details
-
Size:
-
Standard size
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YD
-
Model Number:
-
Customization
-
Product name:
-
cassette oil seal
-
Material:
-
Custom Compound
-
Application:
-
Industry
-
Color:
-
Customers Required
-
Feature:
-
Oil Resistance
-
Type:
-
TC TB SB SC TA.etc.
-
Certificate:
-
ISO
-
Standard or Nonstandard:
-
Customizable Acceptable
-
Model:
-
6000itms
-
Service:
-
Customize Special Sizes
Product Description

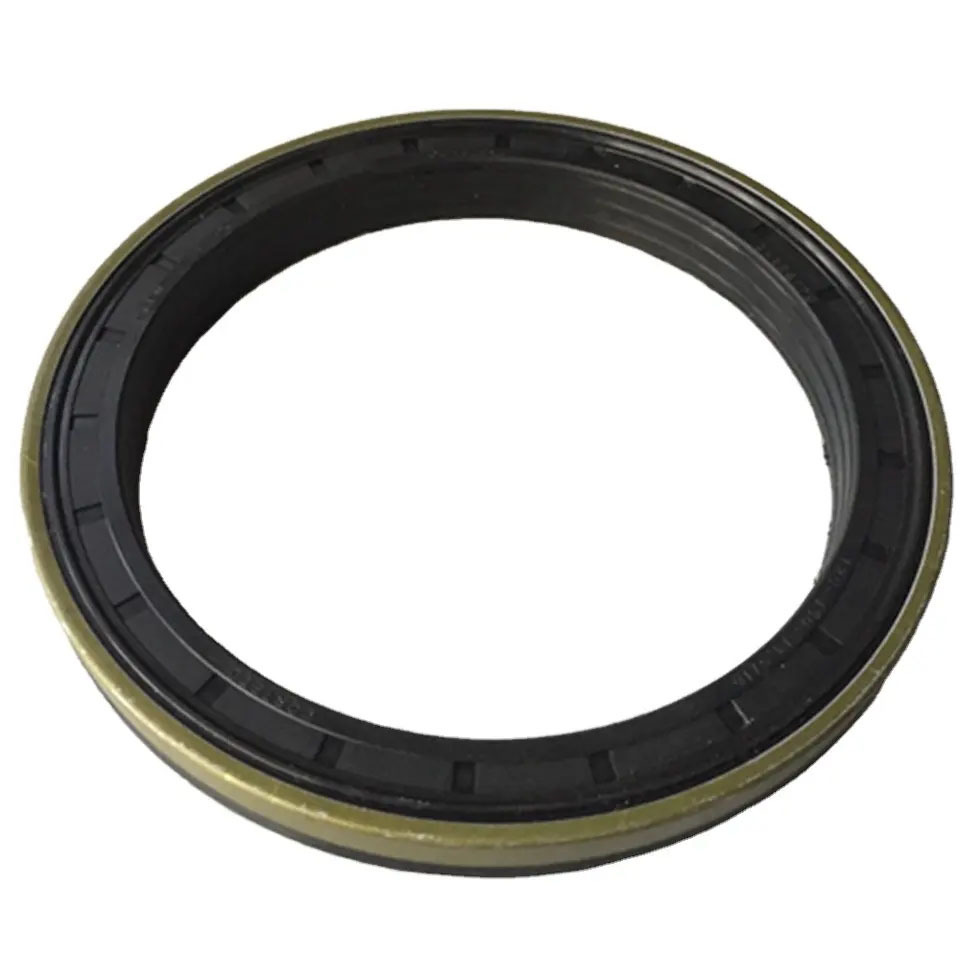

cassette seals
Characteristic:01.Design:special types on enquiry
02.Outer casing:elastomer/sheet metal
03.Spring-loaded sealing lip
04.Additional dust lips
05.High resistance to dirt ingress
06.Robust solutiom
02.Outer casing:elastomer/sheet metal
03.Spring-loaded sealing lip
04.Additional dust lips
05.High resistance to dirt ingress
06.Robust solutiom
Advantages:
01.Lengthening of maintenance interval for individual units
02.Shaft must not be hardened or ground
03.Old solution can usually be reploced by simmerring cassette seal without change to housing
04.The shaft must not be machined on maintenance or seal relacement
01.Lengthening of maintenance interval for individual units
02.Shaft must not be hardened or ground
03.Old solution can usually be reploced by simmerring cassette seal without change to housing
04.The shaft must not be machined on maintenance or seal relacement
|
MATERIAL
|
TEMP
|
ADANTAGES
|
LIMITATION
|
|
Nitrile Rubbrt
(NBR) |
-40~125℃
|
■Good oil and fuel resistance■High tensile strength
■Low swelling in water |
■Poor weather and ozine resistance■Poor resistance against polar lkuids
■Poor resistance against clhydrocarbon ■Poor resistance against aromatic fluids |
|
Fluorinated Rubber
(FKM) |
-20~250℃
|
■The resistance against oil and fuels is better than other types■The only highly elastic rubber whice is resistance to aromatci
and chlornated hydrocarbons ■Exccllcent hcat resistance ■Exccllcent weather and ozonc resistance ■Exccllcent acid resistance ■Low swelling in water |
■Limited cold flexibliity■Limited tensile and tear strength
■Limited wear resistance ■High compression set in hot water ■Poor resistance to polaric solvents |
|
Polyacrylate Rubber
(ACM) |
-25~150℃
|
■Good oil and fuels resistance■Good weater and ozone resistance
|
■Not usable in contact with water and water solutions
■Limited cold flexibility ■Limited tensile strength and tear resistance ■Poor wear reisistance ■Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
Silicone Rubber
(VQM) |
-60~225℃
|
■Best heat resistance of all rubber types
■Excellent low temp resistance of all rubber types ■Excellent weather and ozone resistance |
■Poor tensile and tear strength
■Poor wear resistance ■Sensitive to hydrolysis ■Poor resistance against aromatic oils and oxidized mineral oils ■Poor diffusion resistance |
Specification
|
item
|
value
|
|
Size
|
Length: 239.15mm
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
YD
|
|
Model Number
|
Customized
|
|
Product name
|
cassette oil seal
|
|
Material
|
NBR FKM
|
|
Application
|
Agricultural machinery construction machinery
|
|
Feature
|
Oil resistance and pressure resistance
|
|
Standard or Nonstandard
|
Customizable Acceptable
|
|
Advantage
|
Factory Directly supply
|
|
Service
|
OEM .ODM .Customized
|
|
Hardness
|
FKM 70 - 75 Shore A NBR 70 - 75 Shore A
|
|
Place of Origin
|
Hebei, China
|
|
Size
|
189.5*203*15.5/17
|
Packing & Delivery
TIPS
If you want another model, Please contact me.
We Can Supply various Of Cylinder Seal Kit, Welcome Your Inquiry!
|
50*65*9
|
70*80*6
|
80*93*10
|
95*110*10
|
110*125*10
|
70*85*12
|
|
50*63*10
|
70*80*8
|
80*95*9
|
95*115*12
|
110*130*10
|
75*90*12
|
|
55*68*10
|
70*83*10
|
80*95*10
|
100*115*9
|
115*130*9
|
80*95*12
|
|
55*70*9
|
70*85*9
|
85*100*9
|
100*115*10
|
115*130*10
|
115*135*16
|
|
55*75*12
|
70*85*10
|
85*100*10
|
100*120*12
|
120*135*9
|
75*95*12
|
|
60*73*10
|
75*85*6
|
85*105*12
|
105*120*9
|
120*140*10
|
30*40*8
|
|
60*75*9
|
75*88*10
|
90*105*9
|
105*120*10
|
130*145*9
|
40*55*10
|
|
65*75*6
|
75*90*9
|
90*105*10
|
105*125*12
|
55*70*12
|
40*60*12
|
|
65*78*10
|
75*90*10
|
90*110*12
|
105*125*15
|
60*75*12
|
55*65*6
|
|
65*80*9
|
80*90*6
|
95*110*9
|
110*125*9
|
65*80*12
|
80*100*12
|
