Quick Details
-
Product name:
-

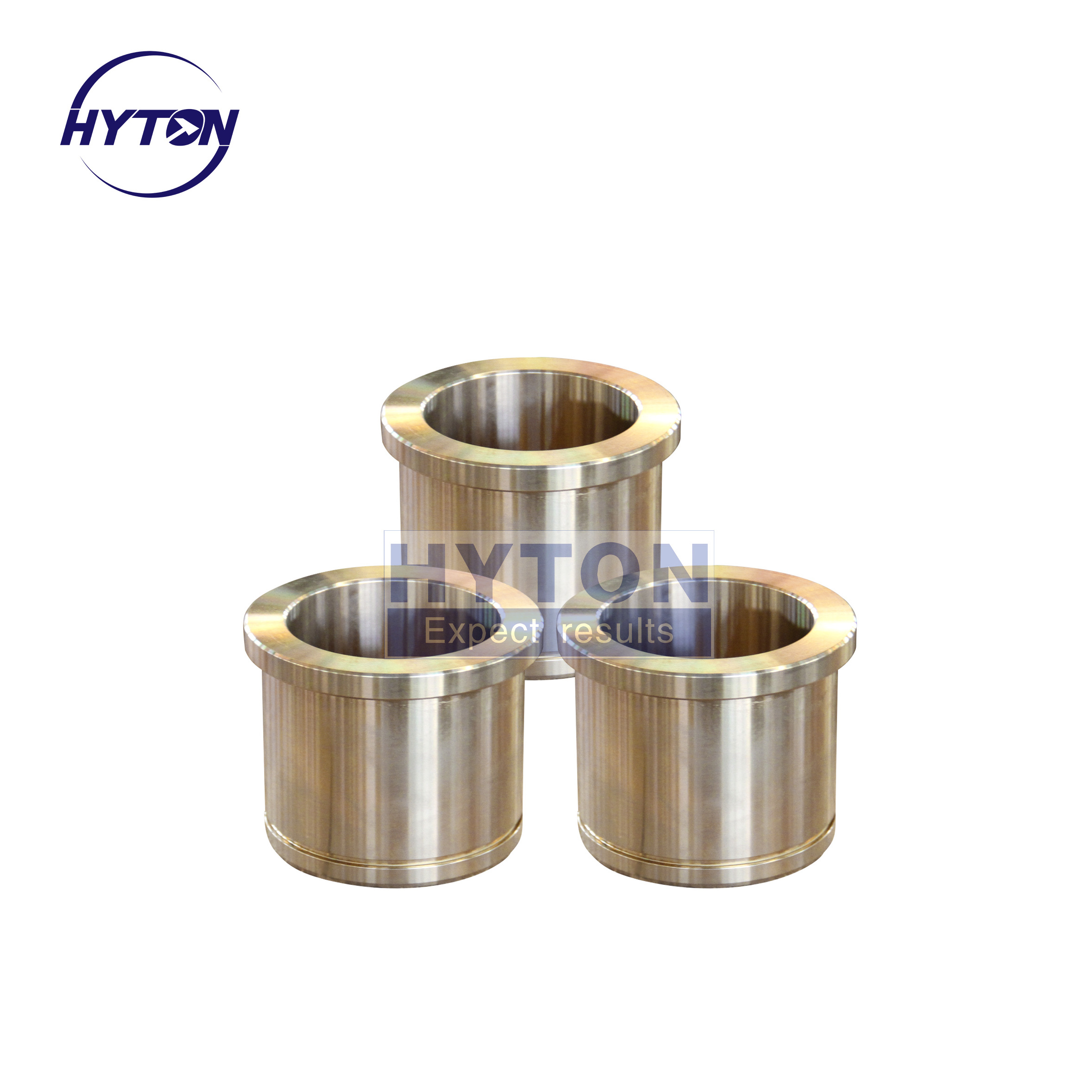

Main Frame Pin Bushing
-
Surface Treatment:
-
Polishing
-
Manufacturing Process:
-
Casting
-
Application:
-
stone crusher
-
HS CODE:
-
84749000
Quick Details
-
Weight (KG):
-
3
-
Place of Origin:
-
China
-
Brand Name:
-
hyton
-
Product name:
-
Main Frame Pin Bushing
-
Surface Treatment:
-
Polishing
-
Manufacturing Process:
-
Casting
-
Application:
-
stone crusher
-
HS CODE:
-
84749000
Product Description
Crusher bronze parts are used in cone crusher, jaw crusher, gyratory crusher and impact crushing equipments. such as eccentric bushing, frame bushing, socket liner, head bushing, countershaft bushing,upper thrust bearing. Hyton focus on supplying precision bronze parts for different kinds of equipments.
Production Capacity
|
Unit weight:
|
0.5-5000 kg per piece
|
|
Size:
|
OD (Eccentric and Concentric): 50-2000 mm
|
|
Models Available:
|
GP100 GP200 GP300 GP500 GP11F GP220 GP550 GP100S GP200S GP300S GP500S
HP100 HP200 HP300 HP400 HP500 HP700 HP800 HP4 HP5 HP6
CH420 CH430 CH440 CH660 CH870 CH880 CS420 CS430 CS440 CS660
C-1540 C-1540R C-1545 C-1545P C-1550 C-1550P C-1554
T300 T400 T500 T900
TP260 TP350 TP450 TP600 TP900
3FT,4FT,5FT,7FT,4 1/2FT,5 1/4FT
|
|
Documents for to be provided
|
Material inspection report:Prefer to provide Element Percentage of C, Si, Mn, P, S, etc and Physical/Machanical Properties of the material.
Dimension inspection report: including roughness, size etc
Hardness report
|
Available Materials
|
Material grade
(GB)
|
Main features
|
Applications
|
|
|
ZCuPb10Sn10
|
Lubrication performance, wear resistance and corrosion resistant performance is good, suitable for bimetal casting materials
|
Surface pressure is high, and there is the lateral pressure of the sliding bearing, such as rolling rolling, vehicle use bearing,load peaks 60 mpa hit parts, as well as the highest peak of 100 mpa bimetallic bearing bush of the internal combustion engine, and the piston pin sets, lining, etc.
|
|
|
ZCuPb15Sn8
|
Under the condition of lack of lubricant and use water quality lubricants, sliding and lubricating, free cutting, casting
performance is poor, for dilute sulfuric acid corrosion resistant performance is good |
Surface pressure is high, and the lateral pressure of bearing, copper cooling pipe can be made from cold rolling mill, impact resistance load of up to 50 mpa parts, internal combustion engines of bimetallic bearing, mainly used for the biggest load of 70 mpa of piston pin set, acid-proof accessories
|
|
|
ZCuPb20Sn5
|
At higher sliding performance, in the absence of a lubricating medium and water as medium are particularly good self-lubricating performance suitable for bimetal casting material, sulfuric acid corrosion resistance, easy cutting, casting performance is poor
|
High sliding speed of the bearing, and crusher, water pump, cold rolling mill bearings, piston pin load of 70 mpa
|
|
|
ZCuPb30
|
Have good self-lubrication, free cutting, casting performance is poor, easy to produce the gravity segregation
|
High sliding velocity of bimetallic bearing shell, wearing parts, etc.
|
|
|
ZCuZn25Al6Fe3Mn3
|
With high mechanical properties, the casting performance is good, good corrosion resistance, has a tendency to stress corrosion
|
Suitable for high strength, wear parts, such as bridge plate, nut, screw, wear-resistant plate, the slider, and worm gear, etc
|
|
|
ZCuZn26Al4Fe3Mn3
|
With high mechanical properties, the casting performance is good, in the air, water, and seawater corrosion resistance is good can be welded
|
Require high strength, corrosion resistant parts
|
|
|
ZCuZn38Mn2Pb2
|
Have higher mechanical properties and good corrosion resistance, abrasion resistance, good cutting performance
|
General purpose structure, ship, instrument appearance, simple casting using such as sleeve, sleeve, bearings, slider, etc
|
|
|
ZCuZn40Mn3Fe1
|
With high mechanical properties, good casting properties and machinability, and in the air, water, and water has good corrosion resistance, has a tendency to stress corrosion cracking
|
Seawater corrosion parts, pipe fittings and under 300 °C, manufacturing and other large Marine propeller castings
|
|
|
ZCuZn33Pb2
|
Structural material, feed temperature is 90 °C when good oxidation resistance, electrical conductivity of about 10 ~ 14 ms/m
|
The shell of gas and water supply equipment,machinery
manufacturing, electronics, precision instruments and optical instruments
of component parts |
|
|
Other standard and material
|
ASTM, JIS, AISI, EN, BS;
Manganese brass: C86300 and etc.; Tin bronze: C83600, C93200, CuSn12, CuSn7Zn4Pb7 and etc.; Aluminum Bronze: C62900, C95400, C95500, CuAl10Fe5Ni5 and etc.. |
|
|
