Quick Details
-

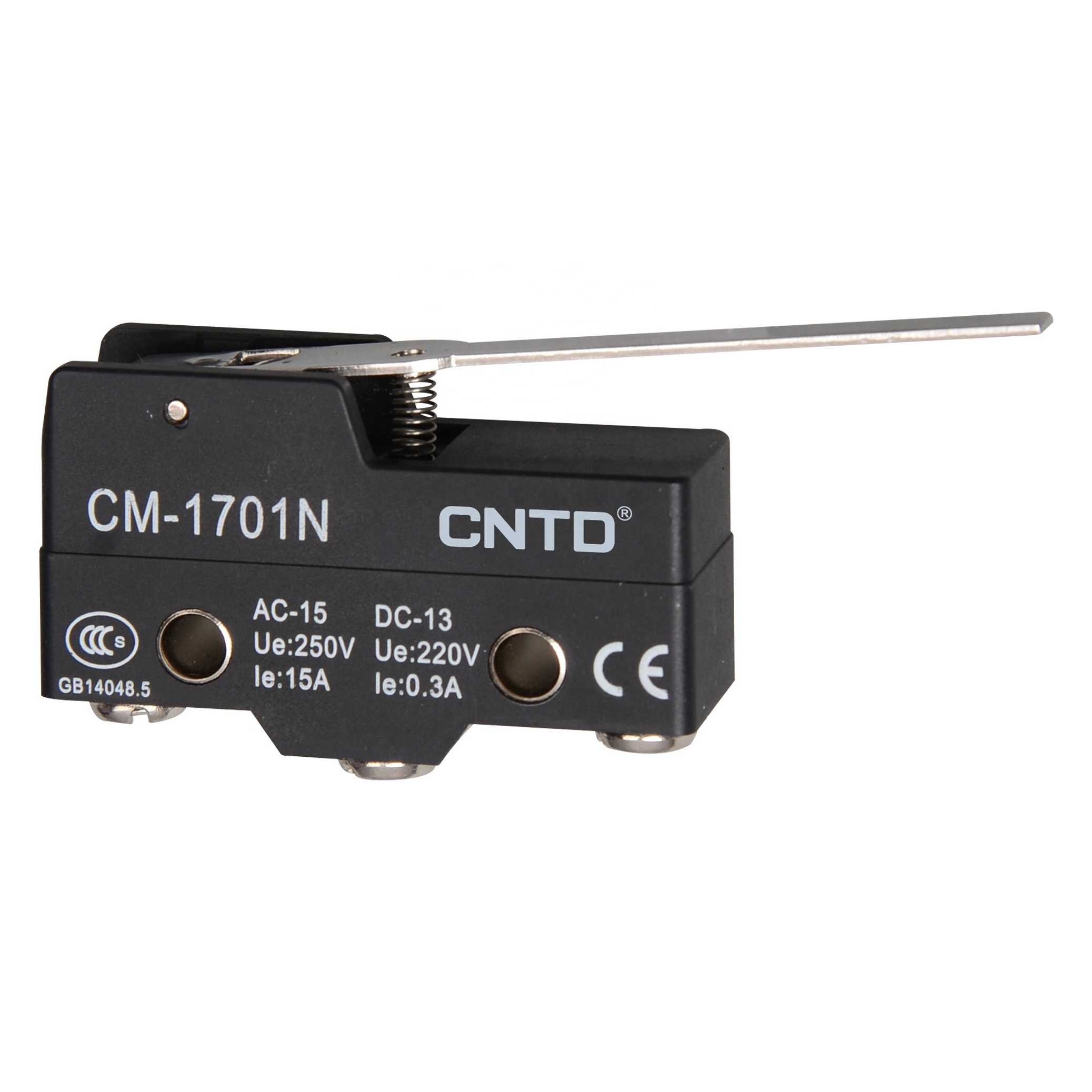

Model Number:
-
CM-1701N
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-20~+80℃(With no icing)
-
Max. Current:
-
10A
-
Name:
-
limit switch
-
Operating Speed:
-
0.05mm-1m/s(Plunger type)
-
Operating Frequency:
-
Electical: 20 operations/min
-
Contact Resistance:
-
15mΩ max. (initial value)
-
Insulation Resistance:
-
100mΩ min. (at 500VDC)
-
Ambient temperature:
-
Using: -20~+80℃ (With no icing)
-
Humidity:
-
General purpose type: 85% RH max., Sealed type: 95% RH max.
-
Electrical life:
-
500,000 operations above
-
Weight:
-
About 22 to 58g
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CM-1701N
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-20~+80℃(With no icing)
-
Max. Current:
-
10A
-
Name:
-
limit switch
-
Operating Speed:
-
0.05mm-1m/s(Plunger type)
-
Operating Frequency:
-
Electical: 20 operations/min
-
Contact Resistance:
-
15mΩ max. (initial value)
-
Insulation Resistance:
-
100mΩ min. (at 500VDC)
-
Ambient temperature:
-
Using: -20~+80℃ (With no icing)
-
Humidity:
-
General purpose type: 85% RH max., Sealed type: 95% RH max.
-
Electrical life:
-
500,000 operations above
-
Weight:
-
About 22 to 58g
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
Various actuators and some with adjustable opersting position (such as CM1701)
High accuracy wide range of operation speed
Contact Form
Specifications
|
Operation Speed
|
0.05mm-1m/s (Plunger type)
|
|
Operating Frequency
|
Electrical: 20 operations/min
|
|
Contact Resistance
|
15mΩ max. (initial avalue)
|
|
Insulation Resistance
|
100mΩ min. (at 500VDC)
|
|
Dielectric Strength
|
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
|
|
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
|
Vibration
|
(＊10 to 20 Hz): 1.5Vibration amplitude action duration: 10 to 55 Hz
|
|
Shock
|
Mechanical durable: 1,000m/Sec² (about 100G'S)
Malfunction: 100m/Sec² (about 30G'S)
|
|
Ambient temperature
|
Using: -20~+80℃ (With no icing)
|
|
Humidity
|
General purpose type: 85% RH max., Sealed type: 95% RH max.
|
|
Electrical Life
|
500,000 operations above
|
|
Weight
|
About 22 to 58g
|
Ratings
|
Rated Voltage
|
Noninductive Load (A)
|
|
|
|
Inductive Load (A)
|
|
|
|
|||||||
|
|
Resistance Load
|
|
Lamp Load
|
|
Inductive Load
|
|
Motor Load
|
|
|||||||
|
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
NC
|
N0
|
|||||||
|
125VAC
|
15
|
|
3
|
1.5
|
15
|
|
5
|
2.5
|
|||||||
|
250VAC
|
15
|
|
2.5
|
1.25
|
15
|
|
3
|
1.5
|
|||||||
|
500VAC
|
3
|
|
1.5
|
1.5
|
2.5
|
|
1.5
|
0.75
|
|||||||
|
8VDC
|
15
|
|
3
|
1.5
|
15
|
|
5
|
2.5
|
|||||||
|
14VDC
|
15
|
|
3
|
1.5
|
10
|
|
5
|
2.5
|
|||||||
|
30VDC
|
6(2)
|
|
3
|
1.5
|
5
|
|
5
|
2.5
|
|||||||
|
125VDC
|
0.4
|
|
0.4
|
0.4
|
0.05
|
|
0.05
|
0.05
|
|||||||
|
250VDC
|
0.2
|
|
0.2
|
0.2
|
0.03
|
|
0.03
|
0.03
|
|||||||
|
Inrush Current
|
N.C: 30A max., N.O: 15A max.
|
|
|
|
|
|
|
|
|||||||
