- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Nail Making Machine
-
Application:
-
Nail Making
-
Raw material:
-
Low Carbon Steel Wire
-
Keyword:
-
Wire Nail Machine
-
Nail Diameter:
-
0.9-1.6MM
-
Nail Length:
-
9-25mm
-
Capacity:
-
450pcs/min
-
Nail type:
-
Round Steel Nails
-
Operation type:
-
Easy
-
Package:
-
Plywood Carton
Quick Details
-
Place of Origin:
-
Hebei, China
-
Power (kW):
-
1.5KW
-
Weight (KG):
-
450 KG
-
Product name:
-
Nail Making Machine
-
Application:
-
Nail Making
-
Raw material:
-
Low Carbon Steel Wire
-
Keyword:
-
Wire Nail Machine
-
Nail Diameter:
-
0.9-1.6MM
-
Nail Length:
-
9-25mm
-
Capacity:
-
450pcs/min
-
Nail type:
-
Round Steel Nails
-
Operation type:
-
Easy
-
Package:
-
Plywood Carton
Product Overview

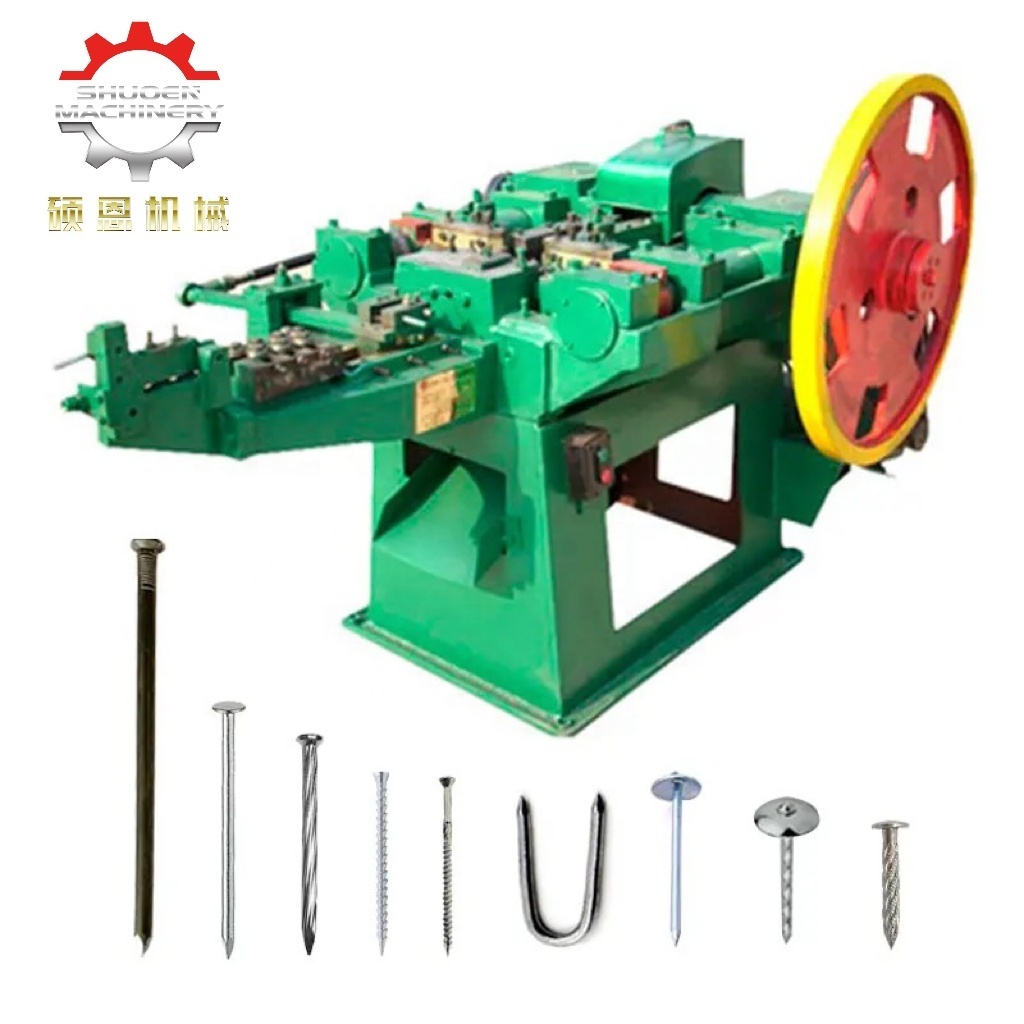

Z94 Type Nail Making Machine
This Nail making machine can help you to produce good quality common nails with high speed and low noise,
C type automatic nail making machine can produce a variety of common steel nail, rivets, cement steel nails and other
round nails, especially to manufacturing high quality, used for high speed welding nail machine and shoot nail gun with roofing nails and other special-shaped nails.
FEATURES AT A GLANCE
*The nail produced by our nail making machine will be high quality , there will be no long and short nails, partial caps, different sizes of nail caps, aircraft heads, and bent nails.
*Easy to operation. there is no dislocation, material blocking, over-temperature, and material shortage.
*Long service life and safety , the stability of the nail making machine equipment is high.
PRODUCT SPECIFICATIONS
|
Item
|
Nail Making Machine
|
|
|
|
|
|
|
||||||
|
Name and Modle
|
Z94-1c
|
Z94-2c
|
Z94-3c
|
Z94-4c
|
Z94-5c
|
Z94-6c
|
Z94-8c
|
||||||
|
Capacity
|
450
|
350
|
280
|
220
|
200
|
160
|
60-90
|
||||||
|
Max Dia of Nail
|
1.6mm
|
2.8mm
|
3.4mm
|
5.0mm
|
5.0mm
|
8.0mm
|
8.0mm
|
||||||
|
Min Dia of Nail
|
0.9mm
|
1.2mm
|
2.0mm
|
3.4mm
|
3.4mm
|
3.4mm
|
3.0mm
|
||||||
|
Max length of Nail
|
25mm
|
50mm
|
80mm
|
110mm
|
180mm
|
220mm
|
330mm
|
||||||
|
Min length of Nail
|
9mm
|
16mm
|
40mm
|
70mm
|
70mm
|
70mm
|
100mm
|
||||||
|
Weight
|
450kgs
|
760kgs
|
1050kgs
|
2000kgs
|
2200kgs
|
4400kgs
|
5600kgs
|
||||||
|
Power
|
1.5KW
|
3KW
|
3KW
|
4KW
|
5.5KW
|
7.5KW
|
11KW
|
||||||
The selection of nail making generally depends on the diameter and length of the nail row.
PRODUCTION PROCESS
The whole production process of Nail
Automatic nail making machine can make different kinds of nails,such as common nails, steel nails, concrete nail, roofing nail etc.
The nail making process is simple as below:
Scrap or new steel wire→ Wire drawing machine→Nail making machine→ Nail polishing machine → Finishing nails
PACKING
COMPANY PROFILE
We,
Tangshan Shuoen
is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
FAQ
Q:Where is your factory located?
A:Our factory is located in Hebei Province of China. The nearest airport is Beijing airport and Tianjin airport. Nearest seaport is Tianjin port.
Q: How many years are your company engaged in the nail making machines?
A: More than 25 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
