Quick Details
-
Cooling Capacity:
-
10ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dachang
-
Voltage:
-
380V
-
Power:
-
9000
-
Dimension(L*W*H):
-
5915*5915*2300mm
-
Weight:
-
800 KG
-
Warranty:
-
one year
-
Product name:
-
Cold Storage Room
-
power supply:
-
solar system
-
steel sheet:
-
color steel/stainless steel/embossed aluminum
-
density:
-
43kg/m3
-
heating conductivity:
-
0.024w/m.k
-
connection type:
-
cam lock
-
standard panel width:
-
1183mm
-
Panel:
-
polyurethane panel
-
panel thickness:
-
50/75/100/150/200mm
Quick Details
-
Temperature:
-
+5/-18 ℃
-
Compressor brand:
-
Copeland, Bitzer
-
Panel Thickness:
-
100mm, 200mm, 120mm, 150mm
-
Cooling Capacity:
-
10ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dachang
-
Voltage:
-
380V
-
Power:
-
9000
-
Dimension(L*W*H):
-
5915*5915*2300mm
-
Weight:
-
800 KG
-
Warranty:
-
one year
-
Product name:
-
Cold Storage Room
-
power supply:
-
solar system
-
steel sheet:
-
color steel/stainless steel/embossed aluminum
-
density:
-
43kg/m3
-
heating conductivity:
-
0.024w/m.k
-
connection type:
-
cam lock
-
standard panel width:
-
1183mm
-
Panel:
-
polyurethane panel
-
panel thickness:
-
50/75/100/150/200mm

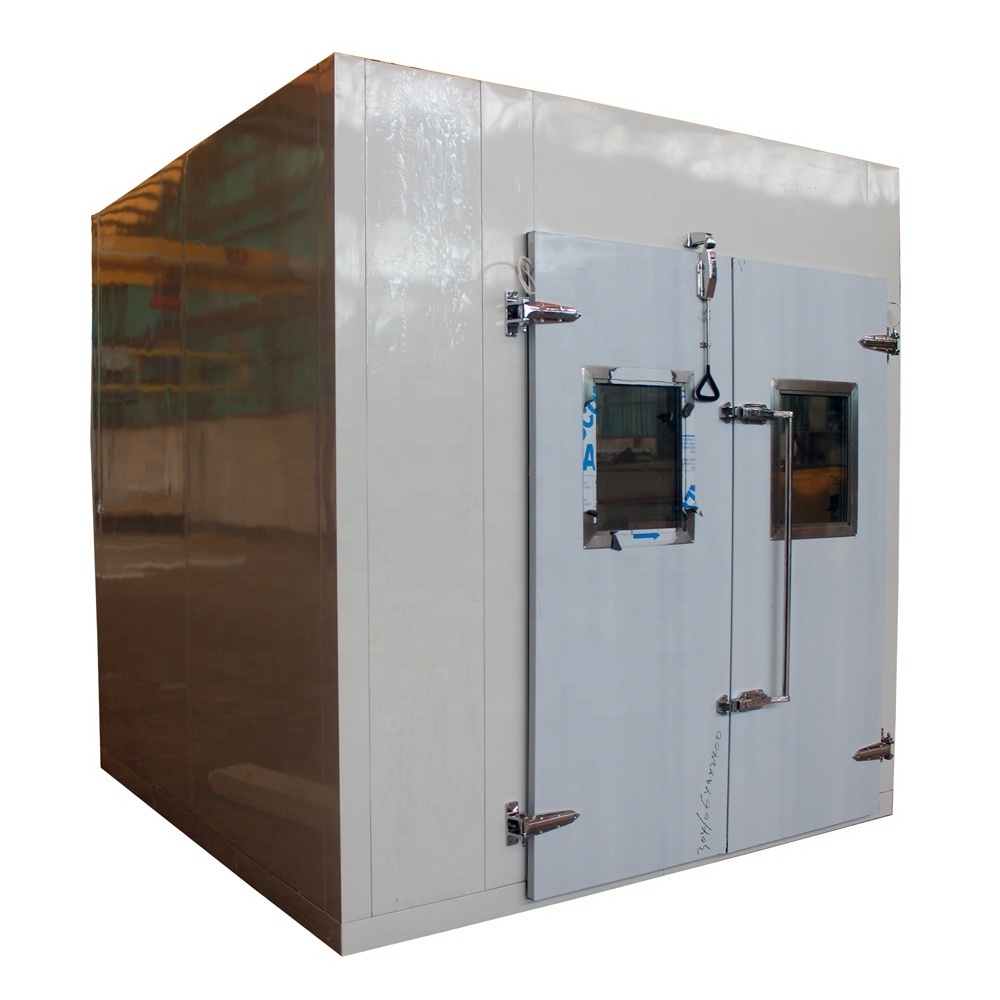

Solar modular cold storage
Feature
1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)white color painted galvanized steel finish
3)convex door,heavy duty.It can be changed to hinge door base on customer's requirement.
4)Copeland brand compressor,durable to use,with good refrigeration.
5)Necessary parts are included.
6)Environmentally friendly refrigerant R404a
| Model | DCWF-68 | DCWR-68 |
| Storage volume(m) | 68 | 68 |
|
Exterior dimensions(mm) |
5915mmW*5915mmL*2300mmH | 5915mmW*5915mmL*2300mmH |
| Interior dimensions(mm) | 5715mmW*5715mmL*2100mmH | 5715mmW*5715mmL*2100mmH |
| refrigeration unit model/power | DC-100FLG/9000W | DC-80FHG/7500W |
| Cooler model/power | DD80/1100W | DL80/1100W |
| Refirgeration size/weight | 940mmW*340mmL*1240mmH/1100kg | (920mmW*320mmL*850mmH/53kg)*2 |
| Cooler size/weight | 1330mmW*605mmL*630mmH/65kg | (1580mmW*425mmL*465mmH/49kg)*2 |
| panel sheet | Grey-white painted galvanized mild steel polyurethane insulation panel | Grey-white painted galvanized mild steel polyurethane insulation panel |
| Temperature | -20 degree c | 5 degree c |
| Liquid conduit/txachea(mm) | 12mm/19mm | 10mm/16mm*2 |
| Copper pipe and preservation | 5m | 5m |
