Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Power or OEM
-
Dimension(L*W*H):
-
510*470*560mm
-
Weight:
-
44KG
-
Rated power/speed:
-
10HP/3600RPM
-
Color:
-
Yellow/Black/Red/Green/Others
-
Output Shaft Type:
-
Keyway shaft/Thread shaft/Taper shaft/Spline shaft
-
Speed(rpm):
-
3000/3600rpm
-
BORE*STROKE:
-
86*72mm
-
Fuel Oil Tank Volume:
-
5.5L
-
OEM:
-
Yes
-
Certification:
-
ISO9001:2008; CE
Quick Details
-
Displacement:
-
418CC
-
Emission Standard:
-
EURO 5
-
Power:
-
10HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Power or OEM
-
Dimension(L*W*H):
-
510*470*560mm
-
Weight:
-
44KG
-
Rated power/speed:
-
10HP/3600RPM
-
Color:
-
Yellow/Black/Red/Green/Others
-
Output Shaft Type:
-
Keyway shaft/Thread shaft/Taper shaft/Spline shaft
-
Speed(rpm):
-
3000/3600rpm
-
BORE*STROKE:
-
86*72mm
-
Fuel Oil Tank Volume:
-
5.5L
-
OEM:
-
Yes
-
Certification:
-
ISO9001:2008; CE

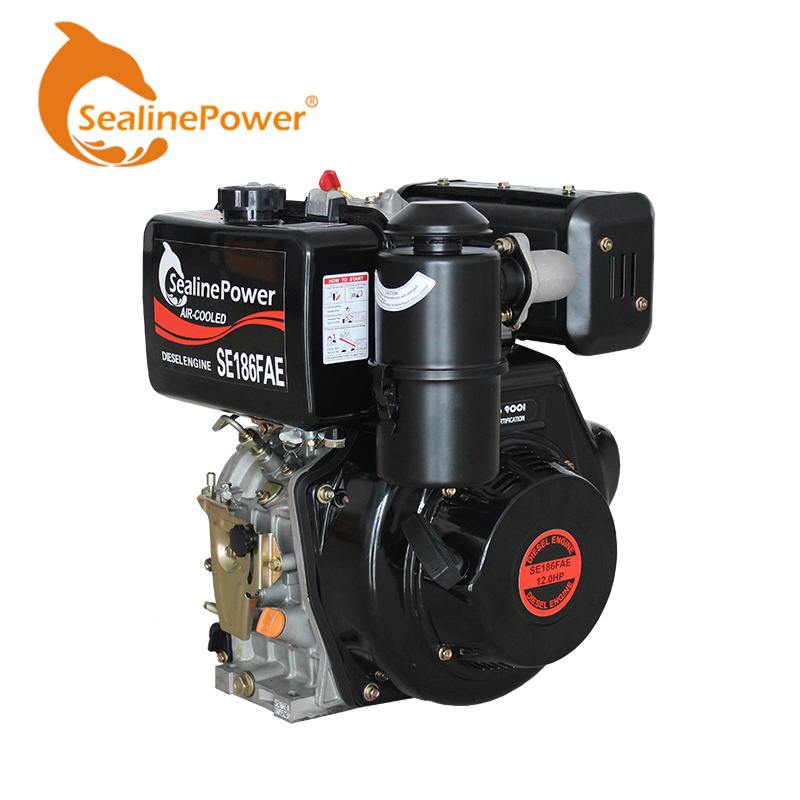

186FA 10hp Air-cooled diesel engine specification
| Model | SE186FA |
| Combustion System | Direct Injection |
| Bore*Stroke(mm) | 86*72 |
| Displacement Capacity(cc) | 418 |
| Speed(rpm) | 3000/3600 |
| Max Output | 10 |
| Rated Output | 12 |
| Fuel Oil Tank Volume(L) | 5.5 |
| Lubrication Oil Volume(L) | 1.65 |
| Fuel Oil Consumption Rate(g/kw*h) | 280 |
| Starting System | Recoil or Electric |
| Dimension(mm) | 510*470*560 |
| Net Weight(kg) | 44 |
| 20FT QTY | 220 |
1.Modern workshops have advanced production lines with whole set of inspection, testing equipment. 2.Skilled assemblers is vital to promise high quality production.
3.Flow card to record each details carefully.
4.Test engine at least 45mins to adjust the best state.
Pack with 7 layer corrugated carton box and wooden pallet to ensure safty during transportation.
ISO9001-2008, CE
