Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTC
-
Model Number:
-
Z30132
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
5817*2000*5120
-
Power (kW):
-
18.5
-
Weight (KG):
-
29000 KG
-
After-sales Service Provided:
-
Overseas service center available
-
machine type:
-
pillar drilling machine
-
feature:
-
high precision,strength
-
application:
-
drilling,counterboring,reaming,tapping
-
price:
-
economical
-
quality:
-
long life
-
Max. drilling diameter:
-
132mm
-
Max.distance from spindle to column:
-
4000mm
-
Max.distance from nose to surface:
-
2500mm
-
warranty period:
-
1 year
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
132
-
Range of Spindle Speed(r.p.m):
-
6.3 - 800 r.p.m
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTC
-
Model Number:
-
Z30132
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
5817*2000*5120
-
Power (kW):
-
18.5
-
Weight (KG):
-
29000 KG
-
After-sales Service Provided:
-
Overseas service center available
-
machine type:
-
pillar drilling machine
-
feature:
-
high precision,strength
-
application:
-
drilling,counterboring,reaming,tapping
-
price:
-
economical
-
quality:
-
long life
-
Max. drilling diameter:
-
132mm
-
Max.distance from spindle to column:
-
4000mm
-
Max.distance from nose to surface:
-
2500mm
-
warranty period:
-
1 year
Related products
Products
Recommended
Product Description
Main Function & Features

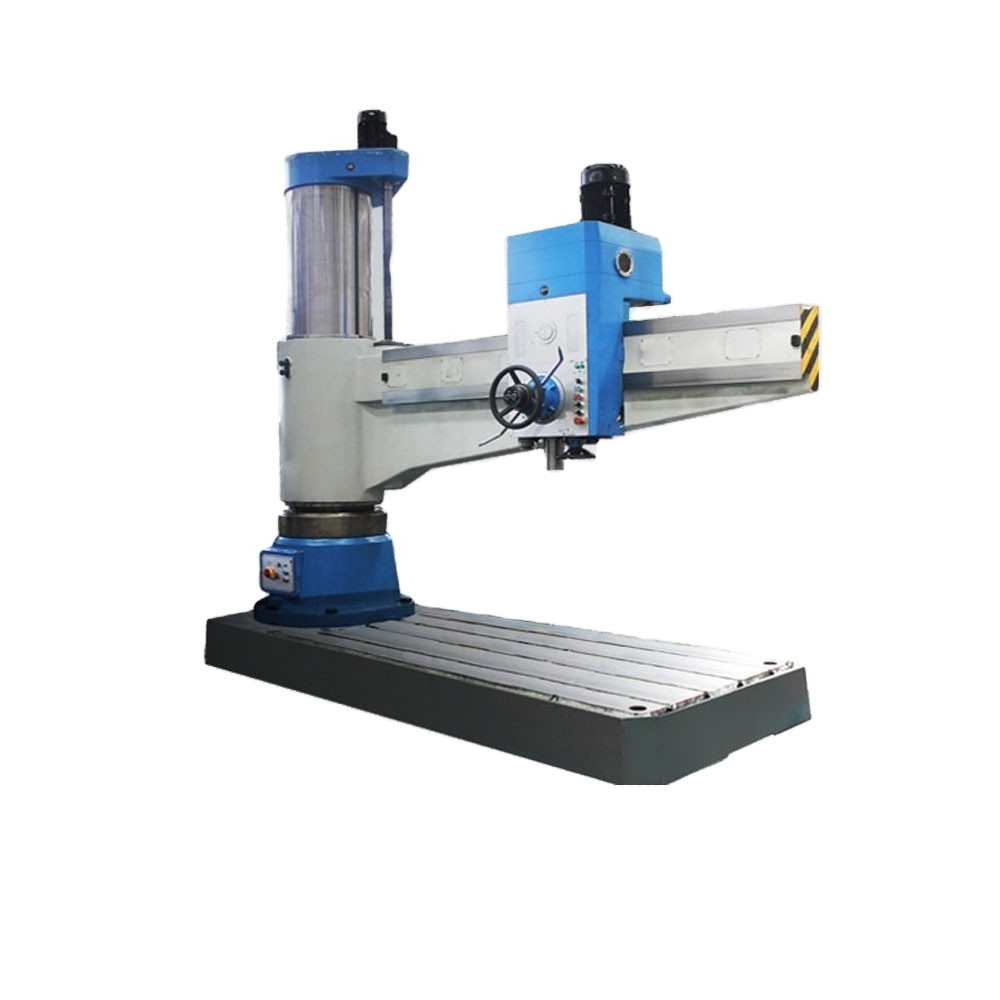

* Bench radial drilling machine
* Optimum design conforming to international standard.
* Key precisely machined parts precision machining
* Flexible reliable; perfect feature.
* High precision; high strength.
* Economical cutting; long life.
* Drilling, counterboring, reaming, boring, spotting,tapping.
* Optimum design conforming to international standard.
* Key precisely machined parts precision machining
* Flexible reliable; perfect feature.
* High precision; high strength.
* Economical cutting; long life.
* Drilling, counterboring, reaming, boring, spotting,tapping.
|
Item
|
|
Unit
|
Z30132×40
|
|
|
Max. drilling diameter
|
|
mm
|
100
|
|
|
Distance from spindle center to column surface
|
Max.
|
mm
|
4000
|
|
|
|
Min.
|
mm
|
600
|
|
|
Distance from spindle nose to base surface
|
Max.
|
mm
|
2500
|
|
|
|
Min.
|
mm
|
750
|
|
|
Spindle travel
|
|
mm
|
560
|
|
|
Taper of spindle bore (Morse)
|
|
No
|
Metric80
|
|
|
Spindle speed
|
|
r/min
|
6.3-800
|
|
|
Spindle speed series
|
|
|
16
|
|
|
Spindle feed rate series
|
|
mm/r
|
0.06-3.2
|
|
|
Table size
|
|
mm
|
800*1250
|
|
|
Headstock horizontal distance
|
|
mm
|
3400
|
|
|
Main power
|
|
kw
|
18.5
|
|
|
Weight
|
Net
|
Kg
|
28500
|
|
|
|
Gross
|
Kg
|
31500
|
|
|
Dimensions
|
L
|
mm
|
5817
|
|
|
|
W
|
Mm
|
2000
|
|
|
|
H
|
mm
|
5120
|
|
Our Advantages
Company Introduction
Dalian Dahui Machinery Equipment Co.
, Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like:
CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories
. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.
Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.
Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
