Quick Details
-
Model Number:
-
DC-800Kgrolling door motor with ISO standard
-
lift force:
-
800kg
-
color:
-
red,blue etc,but mainly depend on your requirement
-
Adaptable Voltage:
-
AC220V±10%
-
bracket size:
-
depend on your order
-
bracket type:
-
standard bracket/anti-drop bracket
-
horsepower:
-
380w
-
remote controller:
-
learning code/fix code/rolling code/DIP
-
Adaptable frequency:
-
50Hz
-
Output Speed:
-
3.9r/min
Quick Details
-
Type:
-
Automatic Door Operators
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HAOSHENG rolling shutter motor/rolling door motor
-
Model Number:
-
DC-800Kgrolling door motor with ISO standard
-
lift force:
-
800kg
-
color:
-
red,blue etc,but mainly depend on your requirement
-
Adaptable Voltage:
-
AC220V±10%
-
bracket size:
-
depend on your order
-
bracket type:
-
standard bracket/anti-drop bracket
-
horsepower:
-
380w
-
remote controller:
-
learning code/fix code/rolling code/DIP
-
Adaptable frequency:
-
50Hz
-
Output Speed:
-
3.9r/min

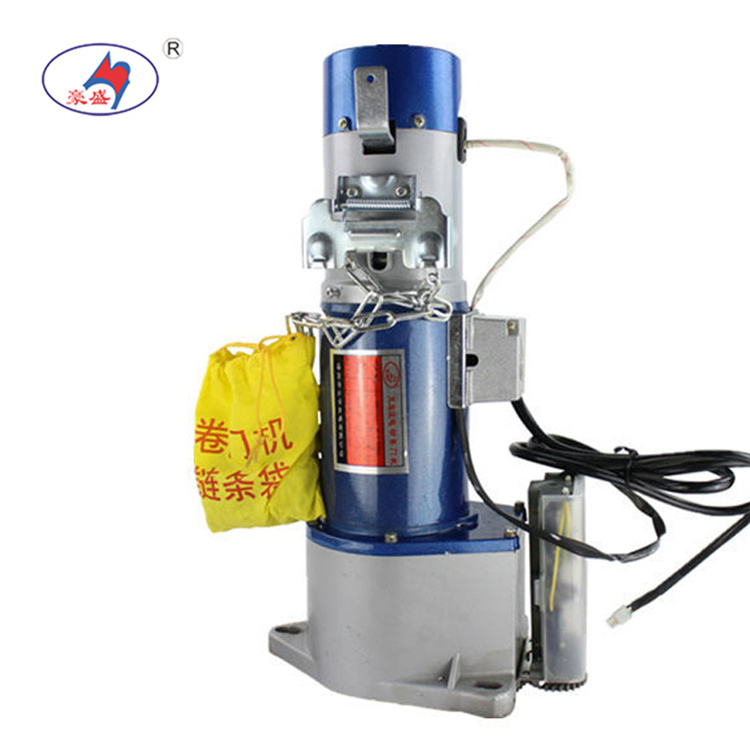

This kind of rolling door motor / rolling shutter motor / roller door motor / roller shutter motor use optional power , that in normal power supply sistuation , motor drive with power by utility . If have power off for its electrical automatic power reserves, and can ensure door motor run out 20 times in normal.
- Attractive appearance , advanced structure , horsepower strong ;
- Configuration high- power low koss ring transformer, utility can direct drive motor;
- Low noise , small vibration , low consumption;
- Light weight , small size , convenient installation , long life and reliable performance ;
- With convenient , stabke function of remote control , can distance remote operation;
- Reserve power supply on the market used batteries for universal product (4.5Ah / 24 V);
- Controller of energy conservation and environmental protection lighting , delay cabin 3 minutes .
Insert the host machine into the side sheet , no more drive chain needs , so it saves time and power . The electric control panel is designed of inserting style , so it is easy to change the components.
It is always available to drive doors of garages , shops , malls , museums , factories , warehouses and so on .
| No. | Name | No. | Name |
| 1 | Cap | 5 | Limit Switch |
| 2 | Brake Systerm | 6 | Reduction Gear Box |
| 3 | Manual Chain | 7 | Gear |
| 4 | Motor | 8 | Bracket |
♦Ambient air temperature changes with the season.
♦ Related humidity is less than 90%.
♦ Short - term operated , can not continuous operation for more than 10 minutes.
|
Roller Door Motor/Roller Shutter Motor/Rolling Door Motor/Rolling Shutter Motor |
|||||||
| Type |
Adaptable Voltage |
Rated Power(W) |
Ratedload |
Standard Barrel Dim(Inch) |
Sproket Motor/Barrel |
||
|
Lifting Force(Kg) |
Max Height( m) |
Output Speed(r/m) |
|||||
| JMJ168/3.7-DC-I(300Kg) |
DC24V |
150 |
300 |
4 | 3.7 | 4 | 9T/45T |
| JMJ168/4.9-DC-(300Kg) | 200 | 300 | 5 | 4.9 | 5 | 9T/47T | |
| JMJ168/4.6-DC-(500Kg) | 240 | 500 | 5 | 4.6 | 5 | 9T/47T | |
| JMJ168/4.2-DC-(600Kg) | 240 | 600 | 5 | 4.2 | 5 | 9T/54T | |
| JMJ168/3.9-DC-(800Kg) | 380 | 800 | 5 | 3.9 | 5 | 9T/54T | |
| JMJ168/5.2-1P-I(300Kg) |
220V 50Hz |
180 | 300 | 6 | 5.2 | 4 | 9T/55T |
| JMJ168/5.5-1P-(300Kg) | 250 | 300 | 6 | 5.2 | 4 | 9T/55T | |
| JMJ168/5.9-3P(300Kg) | 180 | 300 | 6 | 5.2 | 4 | 9T/55T | |
| JMJ345/6.2-1P-(500Kg) | 370 | 500 | 7 | 6.2 | 5 | 9T/47T | |
| JMJ345/6.2-3P-(500KG) | 250 | 500 | 7 | 6.2 | 5 | 9T/47T | |
| JMJ412/5.2-1P-(600KG) | 370 | 600 | 6 | 5.2 | 5 | 9T/54T | |
| JMJ412/5.2-3P-(600KG) | 250 | 600 | 6 | 5.2 | 5 | 9T/54T | |
| JMJ650/3.4-1P-(800KG) | 400 | 800 | 10 | 3.4 | 6 | 9T/54T | |
| JMJ650/3.4-3P-(800KG) | 300 | 800 | 10 | 3.4 | 6 | 9T/54T | |
| JMJ810/4.2-1P(1000KG) | 800 | 1000 | 10 | 4.2 | 6 | 9T/50T | |
| JMJ810/4.2-3P(1000KG) | 400 | 1000 | 10 | 4.2 | 6 | 9T/50T | |
| JMJ1050/4.2-3P(1300KG) | 600 | 1300 | 13 | 4.2 | 6 | 9T/50T | |
| JMJ1220/3.8-1P(1500KG) | 1200 | 1500 | 13 | 3.8 | 6 | 9T/57T | |
| JMJ1220/3.6-3P(1500KG) | 800 | 1500 | 13 | 3.8 | 6 | 9T/57T | |
| JMJ2450/3.8-3P(2000KG) | 1200 | 2000 | 13 | 3.6 | 8 | 8T/51T | |
In order to provide better service to ensure that the user's personal life and the service life of the product , please be sure to detailed instructions before installation . The customers must stictly abide by the safety standards :
♦The roller shutter motor/roller door motor/rolling door motor/rolling shutter motor is using 220V (can adjust to your country's need) . Installation and wiring must in accordance with the construction standards and electrical standards . The power supply must be received good outlet on the ground , not allowed to take out the power cord grounding lead , socket should be 1.3 meters from the ground , so as to prevent children from playing.
♦The controller should be installed within the scope of operation , the distance from the ground should not less than 1.5 meters, so as to prevent childern touching . The controller should be far away from all movement objects around door .
♦The external power line from controller to roller shutter motor/roller door motor/rolling door motor/ rolling shutter motor is not allowed to lengthen authorization .
♦Don't let the children operate and play controller , please put the remote controller away from the children's taking .
♦When use the remote control to control the roller shutter motor / roller door motor / rolling shutter motor / rolling door motor , please sure than the door is closed than leave.
♦Not allowed to stand or across below the door when the roller shutter motor / roller door motor / rolling shutter motor / rolling door motor is working.
♦Not allowed to put your hands on the link of door plank or near the guide rail.
♦Check the power systerm of roller shutter motor / roller door motor / rolling door motor / rolling shutter motor at regular intervals , in order to ensure its moving will not be blocked.
♦If the door has the big problems , please contact with proffessional maintenance.
♦When the remote distance is getting close , change the batteries of transmitter please .
♦If the roller shutter motor/roller door motor / rolling shutter motor / rolling door motor is broken ,please do not tear open at will ,contact with the proffessional mantainance .
♦Pay attention to whether the rolling door motor / roller shutter motor / rolling shutter motor / roller door motor have input power supply (control box of the indicator light) when installation .Not allowed installation with power on.
♦Not allowed to wear a ring , a watch ,or wear loose clothes when installation . And use strong wooden ladder please .
