Quick Details
-
Color:
-
Frame plating silver,surface:Grey
-
Power / Current:
-
DC5~16V
-
Waterproof:
-
Waterproof IP65,Solid Epoxy potted
-
Material:
-
ABS+PC
-
Output format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Application:
-
all kinds of access control system
-
Dimension:
-
76*45*15(mm)
-
Weight:
-
0.14kg
Quick Details
-
Place of Origin:
-
China
-
Type:
-
WG26 EM Card Reader
-
Standard Functions:
-
Buzzer,Double Color LED(Red and Green)
-
Color:
-
Frame plating silver,surface:Grey
-
Power / Current:
-
DC5~16V
-
Waterproof:
-
Waterproof IP65,Solid Epoxy potted
-
Material:
-
ABS+PC
-
Output format:
-
Wiegand 26bits(default)/34bits, RS485/232 can be customized)
-
Application:
-
all kinds of access control system
-
Dimension:
-
76*45*15(mm)
-
Weight:
-
0.14kg

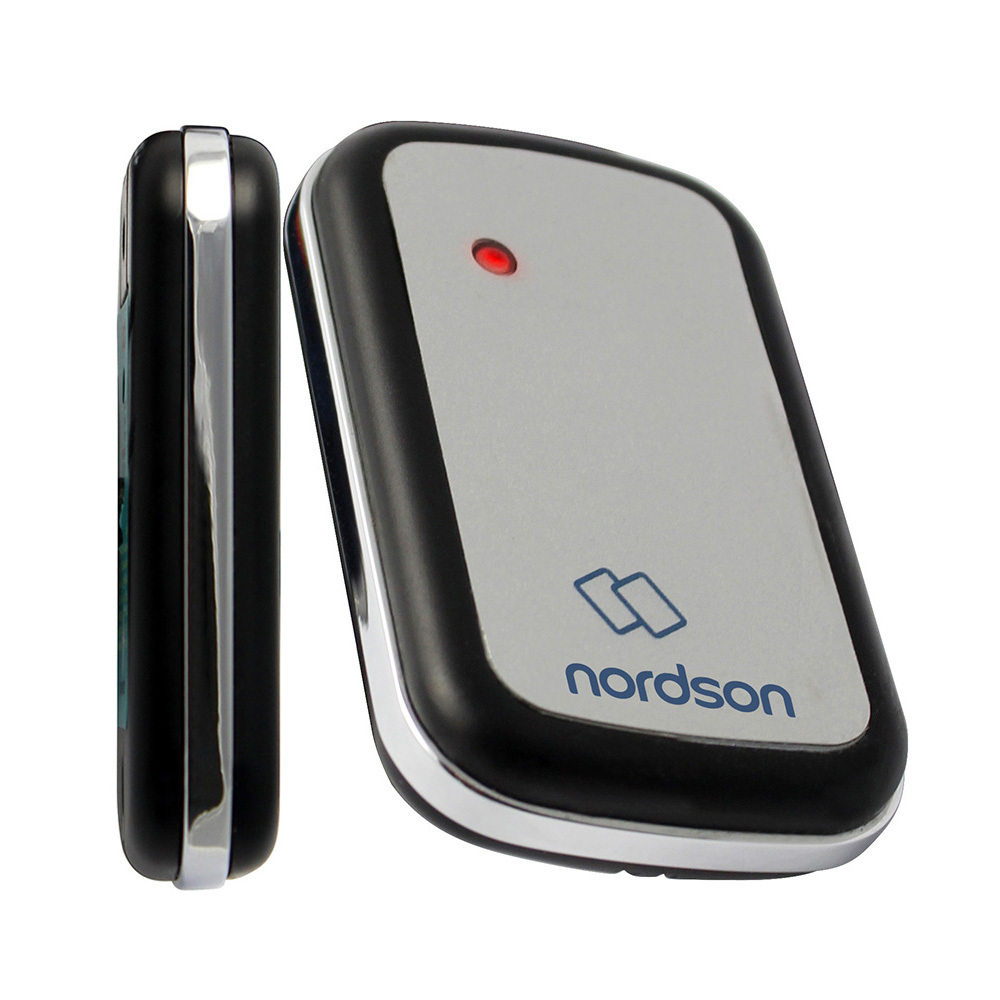

Waterproof elevator access control system proximity rfid smart card reader
2. with Double color LED.
3. with Buzzer.
4. Waterproof IP65,Solid Epoxy potted.
5. Output Format: Wiegand 26bits(default)/34bits,RS485/232 can be customized.
6. Suitable for all kinds of access control system.
1. Patent Design
2. Fit Multi-Voltages,High Stability and High anti-interference,Patent design ,Competitive price.Indeed a best choice for you.
3. Specification:Card Type EM-ID
4. Output Format: Wiegand 26 (default)
5. Input: 6-16VDC/20-50mA
6. Dimension: 76*45*15(mm)
7. Weight: 0.16kg
| Model | NK-RF160S WG26 EM Card Reader |
| RFID Card Type | NK-RF160S/EM:EM-ID 125kHz |
| NK-RF160S/MF:Mifare IC 13.56MHz | |
| Standard Functions | Buzzer,Double Color LED(Red and Green) |
| Output Format | Wiegand 26bits(default)/34bits, RS485/232 can be customized) |
| Reading Time (Card) | ≤300ms |
| Color | Frame plating silver,surface:Grey |
| Power / Current | DC5~16V |
| Material | ABS+PC |
| Current | ≤100mA |
| Index of Protection | IP65 |
| Reading Range | 5~15CM |
| Comunication Distance | WG≤100M,RS485≤1200 |
| Size | 76*45*15(mm) |
| Weight | 0.14kg |
