Quick Details
-
Weight:
-
0.8kg±5%
-
Color:
-
Black
-
Working Voltage:
-
12VDC±5%
-
Input Voltage Range:
-
10.8-13.2VDC
-
Communicate Interface:
-
Wiegand26, 9600bit/s(default)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHD
-
Dimension:
-
230mm*41mm*67mm±5%
-
Weight:
-
0.8kg±5%
-
Color:
-
Black
-
Working Voltage:
-
12VDC±5%
-
Input Voltage Range:
-
10.8-13.2VDC
-
Communicate Interface:
-
Wiegand26, 9600bit/s(default)

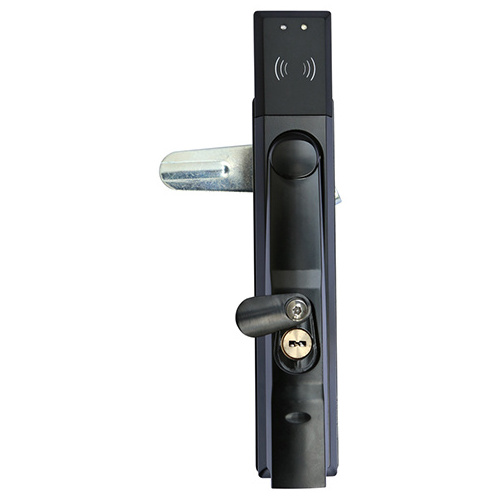

Integration EM Reader Remote Cabinet Lock CHD2100-J3WR
What is the details of our
Integration EM Reader Remote Cabinet Lock?
CHD2100-J3WR integration reading card cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader with the cabinet lock . It uses electronic intelligent technology to control, proximity smart card to open lock, safety and reliable. The special function is: easy to install, easy to update, having keys and manual to open is available, Grade III lighting protection, SMT technologies etc..
What is the Specifications of
Integration EM Reader Remote Cabinet Lock?
|
Dimension
|
230MM (L) X 41MM (W) X 67MM (H) ±5 % ; |
|
Weight
|
0.80Kg±5 % |
|
Material
|
hand shankd, base and baseplate are zinc alloy; |
|
Color
|
Black; |
|
Working Voltage
|
12VDC±5 % ; |
|
Input Voltage Range
|
1 0.8VDC - 13.2VDC ; |
|
Static Working Current
|
less than 250mA ; |
|
Minimum Current
|
1000mA / 12VDC when input; |
|
W orking environment
|
- 10 ~ 50 ℃ , 20 ~ 90 % (With no icing or condensation) ; |
|
Storage
|
-20 ~ 60 ℃ , 20 ~ 90 % (With no icing or condensation) ; |
|
Immunity index : ESD
|
contact discharge ±6KV air discharge ±8kV |
|
Support Card Type |
EM cards, better to use key fobs |
|
RF working frequency
|
125KHZ±5% |
|
S wiping card distance
|
1 0- 3 0 mm |
|
Communicate Interface
|
Wiegand26, 9600bit/s( default ) |
|
Lock open method
|
Electric control to open and manual to open, power on to open lock, power off to be locked;
|
|
W orking status |
legal to open, green light blink once, illegal to open, red light blinks
|
|
Working Time
|
more than 350 thousand times |
What is the Applications of our Integration EM Reader Remote Cabinet Lock?
Usually used in the IDC cabinet, NONE People on duty integration base station, database room etc.
