Quick Details
-
Model Number:
-
DYLY103
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CALT
-
Theory:
-
resistant sensor
-
Output:
-
analog sensor
-
Capacity:
-
100KG 200KG
-
Rated output:
-
2.0±0.05mV/V
-
Non-linearity:
-
≤±0.03% F.S
-
Creep:
-
0.03%FS/30min
-
Input resistance:
-
350±20Ω
-
Output resistance:
-
350±5Ω
-
Working Temperature Range:
-
-20℃~80℃
-
Zero balance:
-
≤±1.0%F.S
-
Safe Overload:
-
≤150% F.S
Quick Details
-
Usage:
-
force sensor
-
Mounting Type:
-
manual
-
Description:
-
weighbridge load cell, load cell
-
Model Number:
-
DYLY103
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CALT
-
Theory:
-
resistant sensor
-
Output:
-
analog sensor
-
Capacity:
-
100KG 200KG
-
Rated output:
-
2.0±0.05mV/V
-
Non-linearity:
-
≤±0.03% F.S
-
Creep:
-
0.03%FS/30min
-
Input resistance:
-
350±20Ω
-
Output resistance:
-
350±5Ω
-
Working Temperature Range:
-
-20℃~80℃
-
Zero balance:
-
≤±1.0%F.S
-
Safe Overload:
-
≤150% F.S

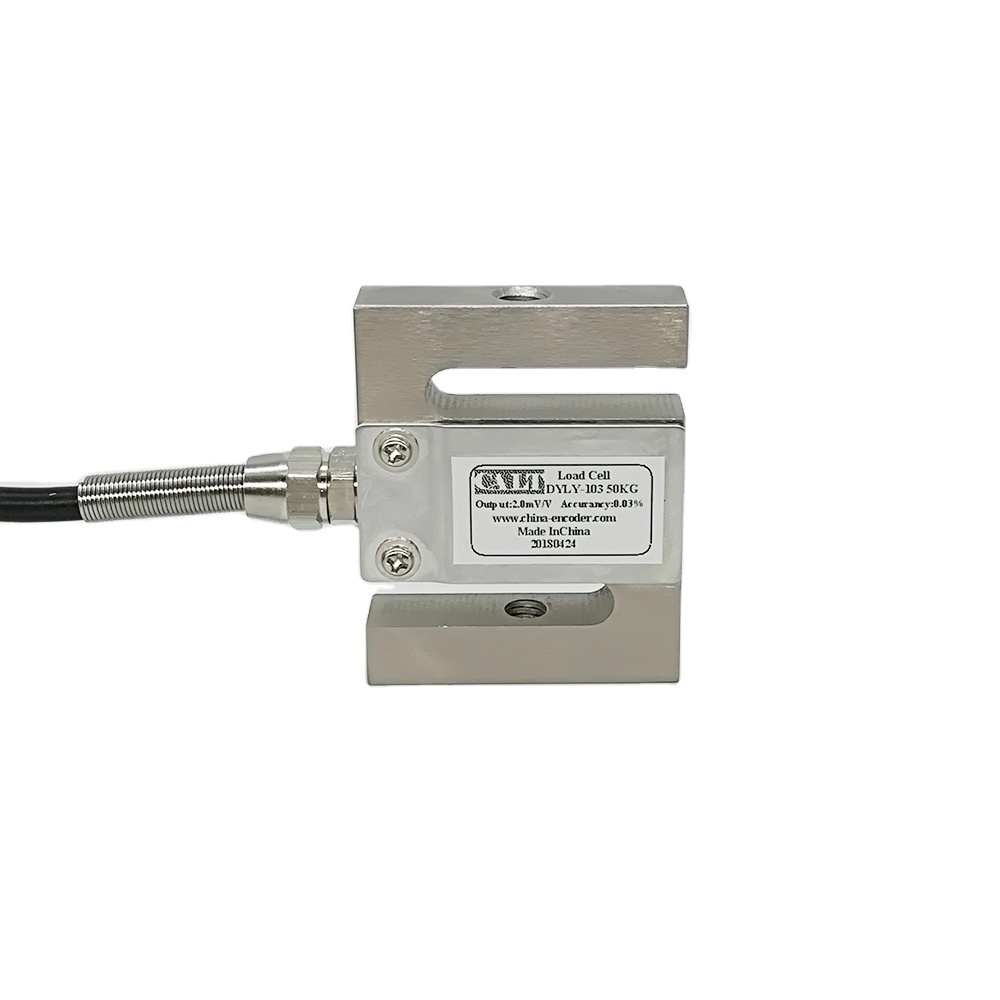

micro S Beam compression load cell weighbridge load cell
Range:
5kg/10kg/20kg/30kg/50kg/100kg/200kg/500kg/1T/1.5T/2T/5T OPTIONAL
High-precision S-beam structure, widely used in concrete mixing plant, batching scales, hopper scales, pull pressure testing machine, and supporting the transmitter 4-20MA, 0-5V, 0-10V output and other standard signal PLC, acquisition connected to the system also can be directly supporting display instrument display force value.
Characteristics & Usage:
Using S-type structure, tension and compression can be used. High accuracy, good stability, good output
symmetry.
Widely used in belt scales, hopper scales, mechanical and electrical integration scales, universal testing
machine, hook scales and various engineering devices force measurement systems.
