Quick Details
-
Place of Origin:
-
Chongqing, China
-
Shaking Speed:
-
20-300rpm
-
Speed Precision:
-
±1 rpm
-
Temperature rising time:
-
D26mm
-
Standard Configuration for Flasks:
-
100ml*9
-
Max. Volume:
-
50ml*5, 100ml*5, 250ml*4, 500ml*3
-
Timing Range:
-
1~9999min
-
Temperature Range:
-
4~60℃ (cooling)
-
Temperature Precision:
-
±1℃
-
Power Supply:
-
AC220V ±10% 50~60HZ
-
Display:
-
LCD
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-SI-200B
-
Place of Origin:
-
Chongqing, China
-
Shaking Speed:
-
20-300rpm
-
Speed Precision:
-
±1 rpm
-
Temperature rising time:
-
D26mm
-
Standard Configuration for Flasks:
-
100ml*9
-
Max. Volume:
-
50ml*5, 100ml*5, 250ml*4, 500ml*3
-
Timing Range:
-
1~9999min
-
Temperature Range:
-
4~60℃ (cooling)
-
Temperature Precision:
-
±1℃
-
Power Supply:
-
AC220V ±10% 50~60HZ
-
Display:
-
LCD

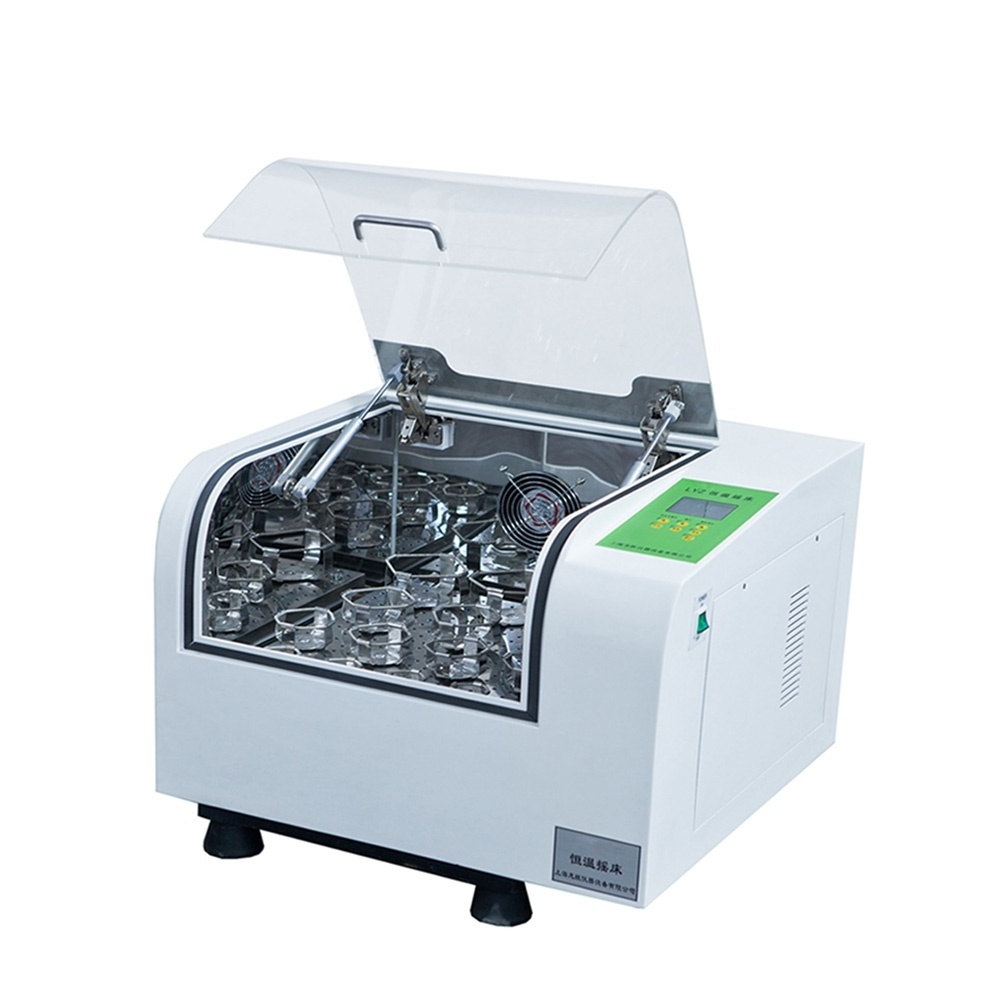

20L 50L 70L Orbital Shaker Incubator For Sample Mixing Laboratory Shaking Incubator
Structural Features:
1. Integrated with incubator and shaker to save space and cost.
2. High quality steel shell, polished stainless steel chamber.
3. Large LCD screen to display temperature and shaking speed.
4. With operation data memory function to eliminate faulty operation.
5. Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
6. Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7. Equipped with leakage protection.
DW-SI-100/200 type:
1.ABS engineering plastic shell and stainless steel chamber.
2.DC brushless motor, stable and reliable.
DW-SI--211/111 type:
1.Big torque motor, more reliable.
2.UV disinfection function.
|
Model
|
DW-SI-103B
|
DW-SI-100B
|
DW-SI-200B
|
DW-SI-211B
|
|
Shaking Speed
|
20-300rpm
|
20-300rpm
|
20-300rpm
|
20-300rpm
|
|
Speed Precision
|
±1 rpm
|
±1 rpm
|
±1 rpm
|
±1 rpm
|
|
Swing Amplitude （mm）
|
φ26mm
|
φ26mm
|
φ26mm
|
φ26mm
|
|
Standard Configuration for Flasks
|
100ml×9
|
50ml×4, 100ml×4, 250ml×3, 500ml×3
|
50ml×5, 100ml×5, 250ml×4, 500ml×3
|
500ml×28
|
|
Max. Volume
|
50ml×12,100ml×9
|
50ml×20, 100ml×16, 250ml×12, 500ml×9
|
100ml×20, 250ml×16, 500ml×12, 1000ml×5, 2000ml×4
|
250ml×36, 500ml×28, 1000ml×18
|
|
Tray Size(mm)
|
295×253
|
400×370
|
450×410
|
920×510
|
|
Timing Range
|
1~9999min
|
1~9999min
|
1~9999min
|
1~9999min
|
|
Temperature Range
|
RT+5~60℃ (RT:25℃)
|
RT+5~60℃
|
4~60℃ (cooling)
|
4~60℃ (cooling)
|
|
Temperature Precision
|
±0.1℃(constant temperature)
|
±0.1℃(constant temperature)
|
±0.1℃(constant temperature)
|
±0.1℃(constant temperature)
|
|
Temperature Precision
|
±1℃
|
±1℃
|
±1℃
|
±1℃
|
|
Outer Size(cm)
|
44×41×39
|
60×58×51
|
78×68×56
|
120×74×80
|
|
N.W/G.W（kg）
|
31/41
|
72/88
|
100/125
|
174
|
|
Chamber Volume (L)
|
20
|
48
|
70
|
970×565×280(155L)
|
|
Power Consumption
|
220W
|
320W
|
580W
|
866W
|
|
Power Supply
|
AC220V ±10% 50~60HZ
|
AC220V ±10% 50~60HZ
|
AC220V ±10% 50~60HZ
|
AC220V ±10% 50~60HZ
|
|
Display
|
LCD
|
LCD
|
LCD
|
LCD
|
|
Model
|
DW-SI-111B
|
DW-SI-211C
|
DW-SI-111C
|
|
Shaking Speed
|
20-300rpm
|
20-300rpm
|
20-300rpm
|
|
Speed Precision
|
±1 rpm
|
±1 rpm
|
±1 rpm
|
|
Swing Amplitude （mm）
|
φ26mm
|
φ26mm
|
φ26mm
|
|
Standard Configuration for Flasks
|
500ml×28
|
2000ml×12
|
2000ml×12
|
|
Max. Volume
|
250ml×36, 500ml×28, 1000ml×18
|
1000ml×18, 2000ml×12, 3000ml×8, 5000ml×6
|
1000ml×18, 2000ml×12, 3000ml×8, 5000ml×6
|
|
Tray Size(mm)
|
920×510
|
920×510
|
920×510
|
|
Timing Range
|
1~9999min
|
1~9999min
|
1~9999min
|
|
Temperature Range
|
RT+5~60℃ (RT:25℃)
|
4~60℃
|
RT+5~60℃ (RT:25℃)
|
|
Temperature Precision
|
±0.1℃(constant temperature)
|
±0.1℃(constant temperature)
|
±0.1℃(constant temperature)
|
|
Temperature Precision
|
±1℃
|
±1℃
|
±1℃
|
|
Outer Size(cm)
|
120×74×80
|
120×74×100
|
120×74×100
|
|
N.W/G.W（kg）
|
160
|
183
|
168
|
|
Chamber Volume (L)
|
970×565×280(155L)
|
970×565×480(265L)
|
970×565×480(265L)
|
|
Power Consumption
|
570W
|
951W
|
676W
|
|
Power Supply
|
AC220V ±10% 50~60HZ
|
AC220V ±10% 50~60HZ
|
AC220V ±10% 50~60HZ
|
|
Display
|
LCD
|
LCD
|
LCD
|
