Quick Details
-
Brand Name:
-
Armagh
-
Product name:
-
transfer cart
-
Load Capacity:
-
customized
-
Keyword:
-
transfer cart;electric flat car
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1800
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Armagh
-
Product name:
-
transfer cart
-
Load Capacity:
-
customized
-
Keyword:
-
transfer cart;electric flat car
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square
Product Description

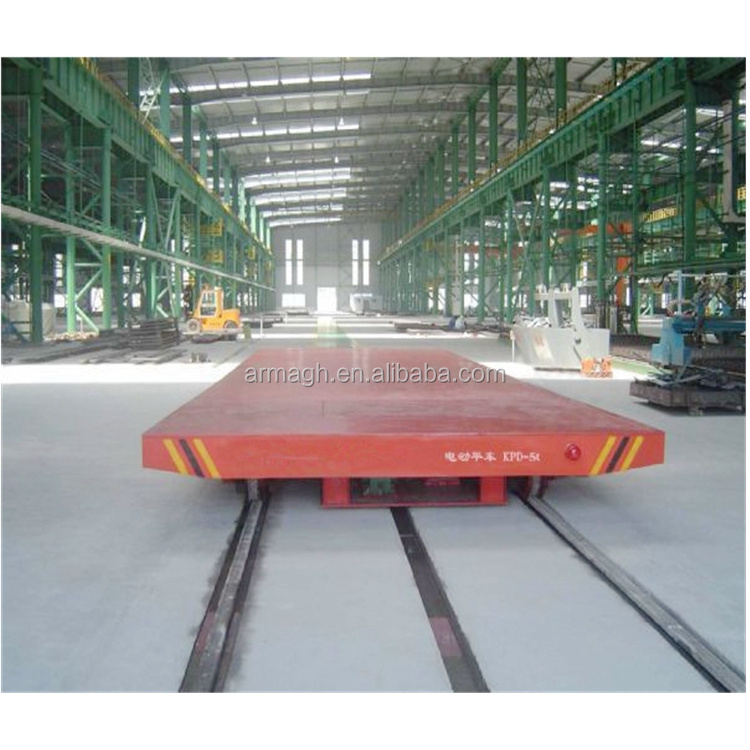

Flat Electric Transfer cart , also known as electric flat car, electric flat car, trolley car, crossover car, electric rail car, ground climbing car, etc., is a kind of in-plant electric rail transport vehicles, first of all, it is a rail-type transport vehicles, the need to lay tracks on the ground, track is generally i-shaped surface contact rail; Secondly, it is an electrically driven vehicle that runs automatically under the drive of motor reducer. Thirdly, it is a flat car with a flat surface and no hatchcover. Under special circumstances, it can be non-flat but no hatchcover.This kind of vehicle has simple structure, convenient use, large carrying capacity, not dirty not to hit, easy maintenance, long service life, etc, because of its convenience, husky, economic, practical, easy to clean, and many other advantages, become the enterprise internal and factory and factory of choice for short distance between the fixed point often carry heavy transport.
The series flat electric transfer cart can be suitable to be used in the bad environment, such as, high-temperature and anti-explosion condition. Compared with the KPX series, the using is not linited; Compared with KPD series, it is not so strict limitation for the construction of the railway. The load capacity is not limited and if the running distance is more than 50m, a cable arranger should be installed to arrange the cables, the runnimg distance of KPJ series can reach to 200m.
transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
Andvantages of flat electric transfer car
- High temperature and explosion proof;
- The Dragged cable powered flat bed trailer for material transfer With simple structure and low price;
- The hydraulic can be installed on the flat carts;
- The Dragged cable powered flat bed trailer's using time is not limited;
- The flat bed trailer for material transfer has no strict requirement on the rail’s construction;
- Running on the straight railways or on the ‘S’ and arc-shaped railways.
transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
Technical date&type of flat electric transfer car
|
Model
|
KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-50T | KPT-100T | KPT-150T | |
| Rated load (T) | 2 | 5 | 10 | 16 | 20 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P43 | QU100 | QU100 | |
transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
