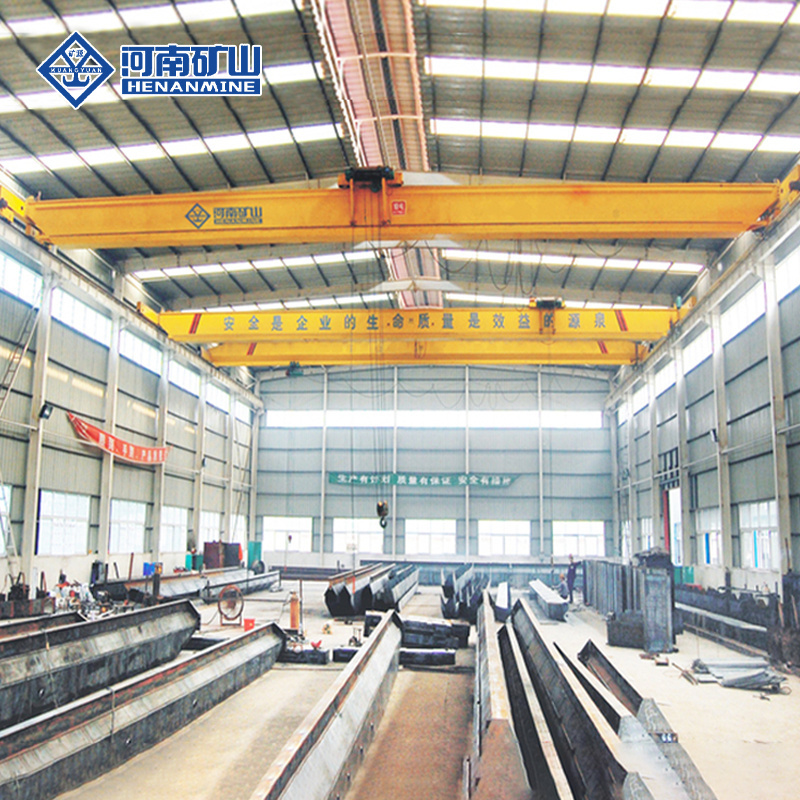

LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane
LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane

LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane

FOB Reference Price: Get Latest Price
≥1 Sets
US $2500
≥5 Sets
US $1850
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
kuangyuan
Weight (KG):
1930 kg
Product Name:
Single Girder Overhead Crane
Lifting height:
9~ 30m
Lifting Capacity:
1t-20t
Electric Current:
380V 50HZ Three-phaze
Lifting speed:
8/0.8m/min
Work Duty:
A3
Crane type:
LDA
Control:
Ground or remote control
Color:
customizable
After Warranty Service:
provided

Quick Details

Max. Lifting Height:
25M, 10M, 6m, 20M, Other, customized
Span:
7.5~31.5M
Place of Origin:
Henan, China
Brand Name:
kuangyuan
Weight (KG):
1930 kg
Product Name:
Single Girder Overhead Crane
Lifting height:
9~ 30m
Lifting Capacity:
1t-20t
Electric Current:
380V 50HZ Three-phaze
Lifting speed:
8/0.8m/min
Work Duty:
A3
Crane type:
LDA
Control:
Ground or remote control
Color:
customizable
After Warranty Service:
provided
PRODUCTS DESCRIPTION

LD Bridge Crane Mobile Travelling Heavy Duty Electric 5 ton 10 ton Single Girder Overhead Crane

The single-girder overhead crane is a lifting equipment that is horizontally mounted over workshops, warehouses and stockyards for material hoisting. Because its two ends sit on tall concrete columns or metal supports, it is shaped like a bridge. The bridge frame of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated on both sides, which can make full use of the space under the bridge frame to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of hoisting machinery.

Contact us for more LDA details.
FEATURES AT A GLANCE
Lift weight
1-5T
10T
20T
Lift hieght
6.9.12.18.24.30
9.12.18.24.30
9.12.18.24.30
Span
7.5-28.5
7.5-25.5
Lifting Machanism
model of electric hoist
CD 1 /MD 1
CD 1 /MD 1
CD 1 /MD 1
Lifting speed(m/min）
8  8/0.8
7 7/0.7
3.5  3.5/0.35
Traveling speed(m/min)
20
20
20
Working class
A3
electric current
380V 50HZ
1. The structure: hoist, single girder, end girders, electric control system, low height, small size, light weight, small pressing wheels;
2. The operation mode: cable operation, wireless remote control;
3. Advanced design concept the crane with outstanding distribution and performance, also at the maximum level of narrowing the lifting hook the operating limit of interval, effectively improves the space utilization, also make the customer may reduce the plant investment costs.
4. High performance braking system with anti-dust device can be automatically adjusted, safe service life more than 1000000 times.
PRODUCT CONFIGURATION
1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
running.
3). Siemens main electric parts are used for durable and safe operation
Main Girder
Structure: Welding structure of steel plate and I-steel
Technology: One-off forming U shaped groove.
Electric Hoist
Model: CD, MD Capacity: 0.25-32t Lifting height: >3m Usage: Workshop, mines, habour etc.
End Girder
The end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.

Hook

Capacity: 1-450t Type: Single hook, double hook
Material: forging
Usage: Lifting various objects

Wireless Remote Control

Model: F21 F23 F24
Speed: Single speed, double speed. VFD control
Usage: For overhead crane, gantry crane, electric hoist etc.

Wheels

Process: Casting, rough machining, QT, finish machining
Material: forging
Usage: Crane Travelling
PRODUCT SPECIFICATIONS
Safety device:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Lifting limit switch and traveling limit switch.
4. Emergency stop system.
5. Zero voltage protection.
6. Phases protection device and so on.
Click to customize your parameters!
COMPANY PROFILE
CUSTOMER CASE
Bridge Cranes For Construction Of Pakistan Railway
Smart Coke Tank Crane ( Overcome technical difficulties such as high temperature,
red coke heat radiation and flame baking)
Dust-free Workshop Bridge Crane
Unmanned grab crane
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
