Quick Details
-
Brand Name:
-
YTL
-
Model Number:
-
D524001
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380V
-
Operating Temperature:
-
-20-55℃
-
Dimensions:
-
220.4*168.8*63.5mm
-
Impulse constant:
-
1000imp/kW.h
-
Frequency:
-
50Hz
-
Display:
-
LCD 6+2
-
Power loss:
-
≤1W, 1VA
-
Average humidty:
-
≤75%
-
Start current:
-
0.4 %IB
-
Communication:
-
IR, RS485
-
Certificate:
-
CE ISO9001
-
Standard:
-
IEC62052-11/IEC62053-21
-
Installation method:
-
Suspension type
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
5(80)A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YTL
-
Model Number:
-
D524001
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380V
-
Operating Temperature:
-
-20-55℃
-
Dimensions:
-
220.4*168.8*63.5mm
-
Impulse constant:
-
1000imp/kW.h
-
Frequency:
-
50Hz
-
Display:
-
LCD 6+2
-
Power loss:
-
≤1W, 1VA
-
Average humidty:
-
≤75%
-
Start current:
-
0.4 %IB
-
Communication:
-
IR, RS485
-
Certificate:
-
CE ISO9001
-
Standard:
-
IEC62052-11/IEC62053-21
-
Installation method:
-
Suspension type
Products Description

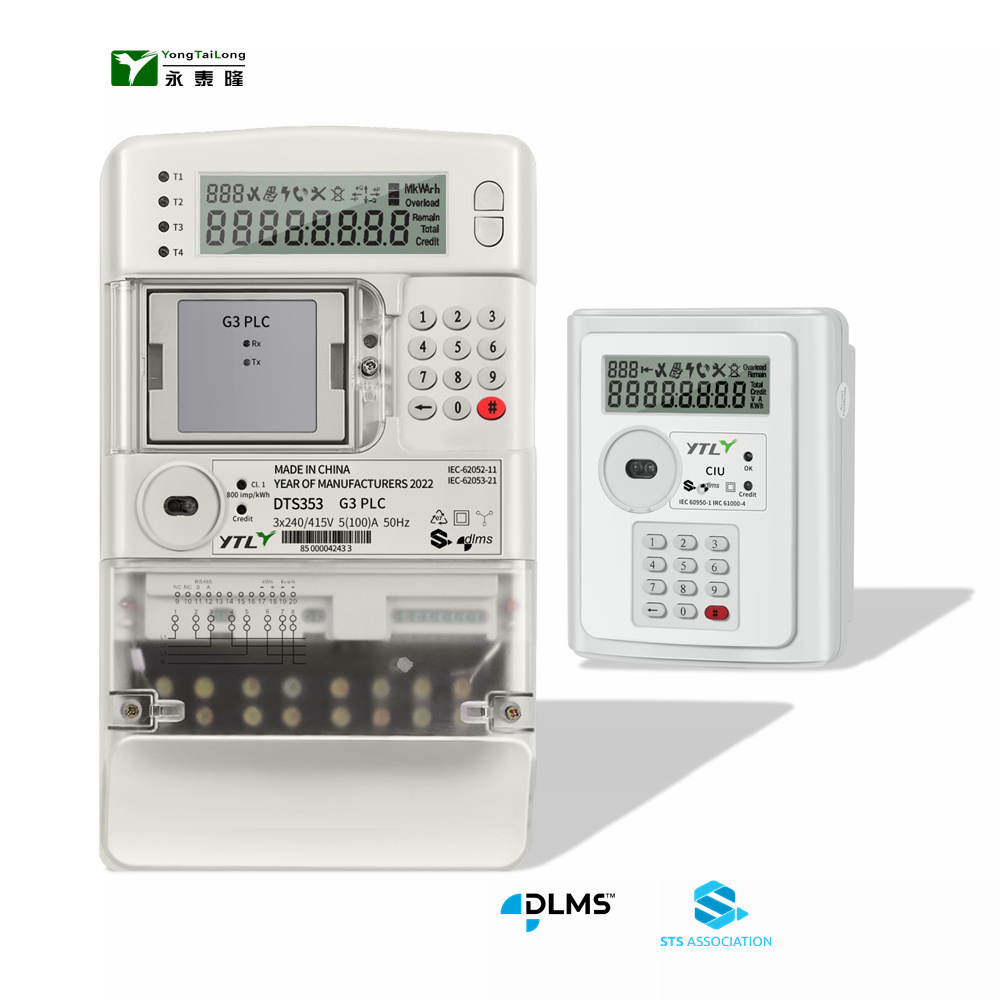

It is three phase four wire prepayment keypad meter with multi-functions, which measure forward and reverse power, total active power,remain credit and consumption credit etc. Inner meter use credit to calculate for managing well.Meanwhile, the prepayment meter has many communication options like RS485 ,LORA, G3 PLC and GPRS communication.
Technical Paramenters
|
Parameter
|
Description
|
|
type
|
3-phase 4-wire:
Direct type Indirect type |
|
Accuracy class
|
1.0 (or better)-active energy
2.0-Reactive Energy |
|
Voltage
|
230VAC
|
|
Frequency |
50Hz
|
|
Ib/Imax
|
Direct type: 10/100A;
Indirect type:1.5(6)A; |
|
Min Starting Current
|
Class 1:40mA
Class 2: 50mA |
|
Over-voltage rating
|
Withstand 420VAC for 48 hours
|
|
LCD
|
LCD with back light;
Display voltage of L1,L2L3; Display phase current flow direction; Active tariff indication; Load-switch status; Operational mode; Tamper status; Communications status to DCU; Token acceptance status; Overload; Remaining credit; Volts; Amps; kWh; kVArh; Cyclic display of data on LCD-configurable; Manual scrolling data display using scroll keys; |
|
Measurement
|
Each phase and neutral current measurement
|
|
Alarm
|
PF;
voltage dip/Low voltage; Temperature near terminal block |
|
Tamper inputs
|
Meter cover open;
Terminal cover open; Comms module cover open; Strong magnetic field tamper |
|
Communications
|
RS485
IR (always present) Plug-in module: PLC (G3) GPRS LoRa Protocol: DLMS |
|
Tariff
|
Multi tariff
|
|
Maximum demand
|
Configurable integration period-with auto reset on the
1st of every month.Manual reset must also be possible via secure short code method.MD to be part of scroll display |
|
Load management
|
Support second configurable load limit threshold that
becomes active during configurable periods |
|
Standards compliance
|
IEC62052-11
IEC62053-21 IEC62056-46 IEC62056-61 IEC62053-61 |
