Quick Details
-
Brand Name:
-
KLS
-
Model Number:
-
KLS7-TS6601
-
Certificate:
-
CE ROHS
-
Model number:
-
selectable
-
Operating Force:
-
180gf/250gf
-
Rating:
-
50mA 12VDC
-
size:
-
6x6mm
-
Operating temperature:
-
-40℃~+85℃
Quick Details
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KLS
-
Model Number:
-
KLS7-TS6601
-
Certificate:
-
CE ROHS
-
Model number:
-
selectable
-
Operating Force:
-
180gf/250gf
-
Rating:
-
50mA 12VDC
-
size:
-
6x6mm
-
Operating temperature:
-
-40℃~+85℃
Dear valued customer:
KLS ELECTRONIC is a wholesale manufacture and full range components supplier. we
cooperate with many big distributors in many countries. sorry, our order have limit for
USD500/order,or will add extra documents cost. sample order welcome.Thank you!
KLS7-TS6601
|
ELECTRICAL
1.Rating: 50mA 12VDC
2.Contact Resistance : 50mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC
9.Operating temperature:-40ºC~+85ºC |

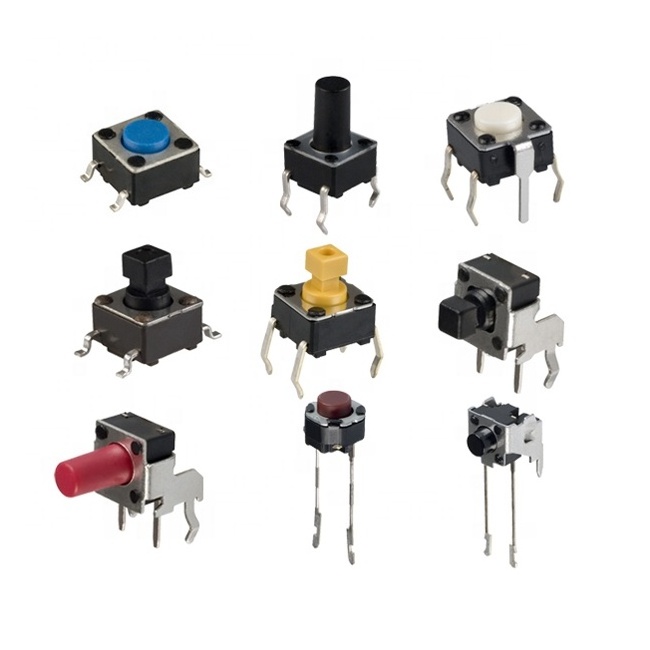

More 6x6 KLS tact switch
| Model number | Height(MM) |
|
KLS7-TS6601 |
11/12/13/15/17/18/20/22/26/4.3/5/7/7.3/7.5/8/9.5 |
| KLS7-TS6602 | 4.3/5/6/7/8 |
| KLS7-TS6603 | 7.3 |
| KLS7-TS6604 | 4.3/5/6/7/8 |
| KLS7-TS6605 | 4.3/5/6/7/8/9.5 |
| KLS7-TS6606 | 4.3/5/6/7/8/13 |
| KLS7-TS6607 | 4.3/5/6/7/8 |
| KLS7-TS6608 | 2.5/2.7/3.1/3.7/5.1 |
| KLS7-TS6611 | 1.5/1.7/1.9 |
| KLS7-TS6612 | 2.6 |
| KLS7-TS6613 | 4.3/5 |
| KLS7-TS6616 |
3.4/5.1 |
