Quick Details
-
Brand Name:
-
REACH
-
Model Number:
-
RH-008
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
700kg
-
Max.wheel width:
-
600mm
-
Rim diameter:
-
13" - 26"
-
Hydraulic pump motor:
-
1.1kw
-
G.W.:
-
580kg
-
Gearbox motor:
-
1.1kw
-
Max.tyre diameter:
-
1300mm
-
Thick of van:
-
≤160mm
-
Min.width of inner van:
-
1650mm
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
Quick Details
-
Motor Power:
-
1.1kw
-
Power Supply:
-
220V/400V/ 50/60HZ/ 1P/3P
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REACH
-
Model Number:
-
RH-008
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
700kg
-
Max.wheel width:
-
600mm
-
Rim diameter:
-
13" - 26"
-
Hydraulic pump motor:
-
1.1kw
-
G.W.:
-
580kg
-
Gearbox motor:
-
1.1kw
-
Max.tyre diameter:
-
1300mm
-
Thick of van:
-
≤160mm
-
Min.width of inner van:
-
1650mm
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
Product Description
Model : RH-008
Features

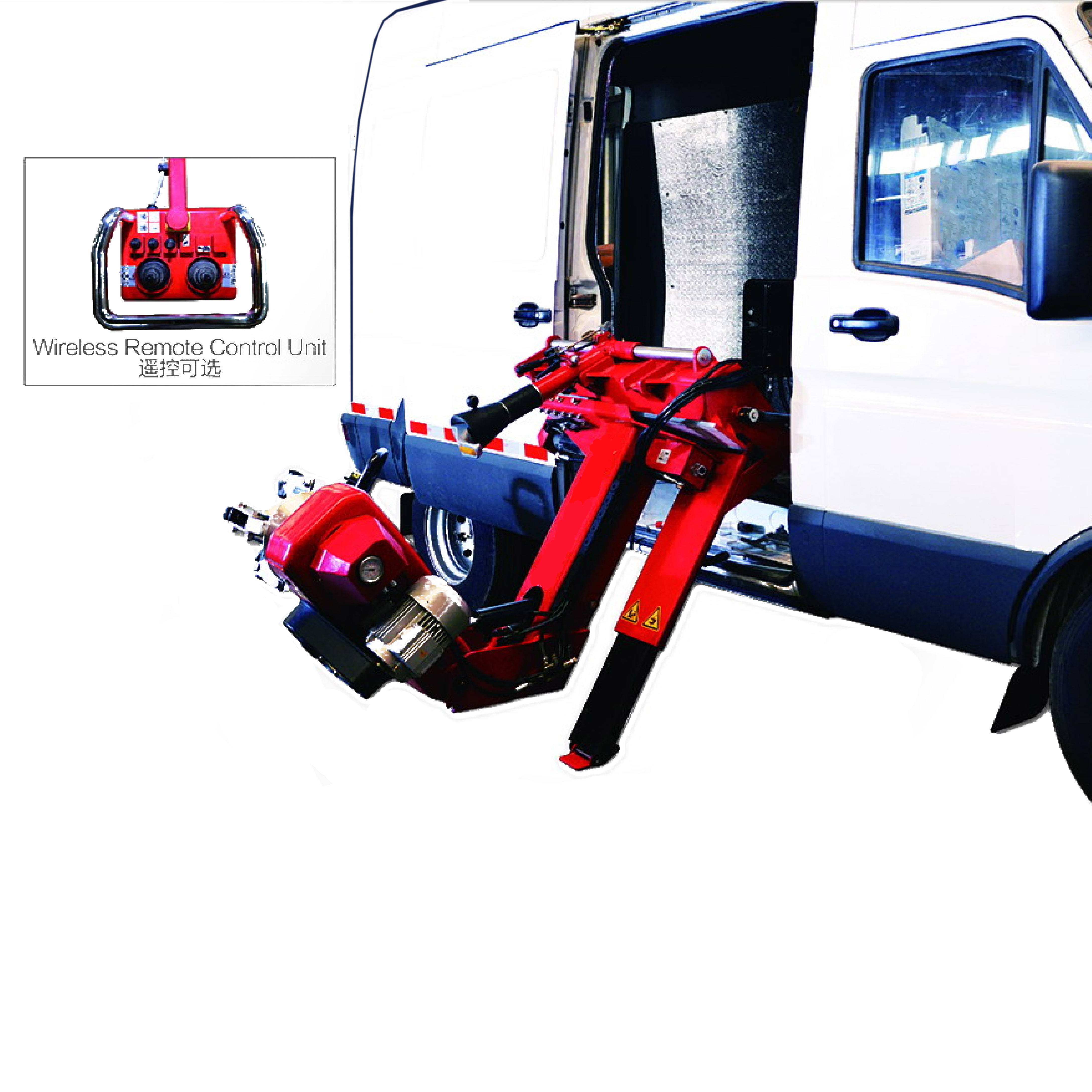

1. RH-008 is an electro hydraulic tyre changer for trucks,buses and tractors.
2. Equipment with a power generator optional.
3. RH-008 can be runin the workshop and is suitable for mobile service.
4. Italian pump optional.
Specification
| Rim diameter |
13"-26" |
|
Max.wheel weight |
700kg |
| Max.wheel width | 600kg |
| Max.tyre diameter | 1300mm |
| Hydraulic pump motor | 1.1kw |
| Gearbox motor | 1.1kw |
| Bead breaker force | 2500kg |
| Power | 220/400v 50/60hz 1/3p (Optional) |
|
Min.Height of machines chassis to the top of the door |
1450mm |
| Min.width of inner van | 1650mm |
| Min.width of door | 980mm |
| Thick of van | ≤160mm |
| Chassis of the van to floor | ≈700mm |
Details Description
Standard Accessories
Optional Accessories
