- Product Details
- {{item.text}}
Quick Details
-
Production Capacity (kg/h):
-
8000 - 10000 kg/h
-
Brand Name:
-
Wanlong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Variable
-
Power (kW):
-
30
-
Weight (T):
-
5
-
Name:
-
Shaft Waste Tire Rubber Plastic Metal Scraps Shredder Cutting Machine
-
Color:
-
Client's Requirements
-
Usage:
-
Scrap Shredding
-
Final product:
-
Small Scraps
-
Lifetime:
-
Years
-
Service:
-
24h Online
-
Keyword:
-
plastic mill
-
Application:
-
Recycled Industry
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
Quick Details
-
Max.Production Capacity (kg/h):
-
8000
-
Place of Origin:
-
Henan, China
-
Machine Type:
-
plastic mill
-
Production Capacity (kg/h):
-
8000 - 10000 kg/h
-
Brand Name:
-
Wanlong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Variable
-
Power (kW):
-
30
-
Weight (T):
-
5
-
Name:
-
Shaft Waste Tire Rubber Plastic Metal Scraps Shredder Cutting Machine
-
Color:
-
Client's Requirements
-
Usage:
-
Scrap Shredding
-
Final product:
-
Small Scraps
-
Lifetime:
-
Years
-
Service:
-
24h Online
-
Keyword:
-
plastic mill
-
Application:
-
Recycled Industry
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE ISO
Products Description

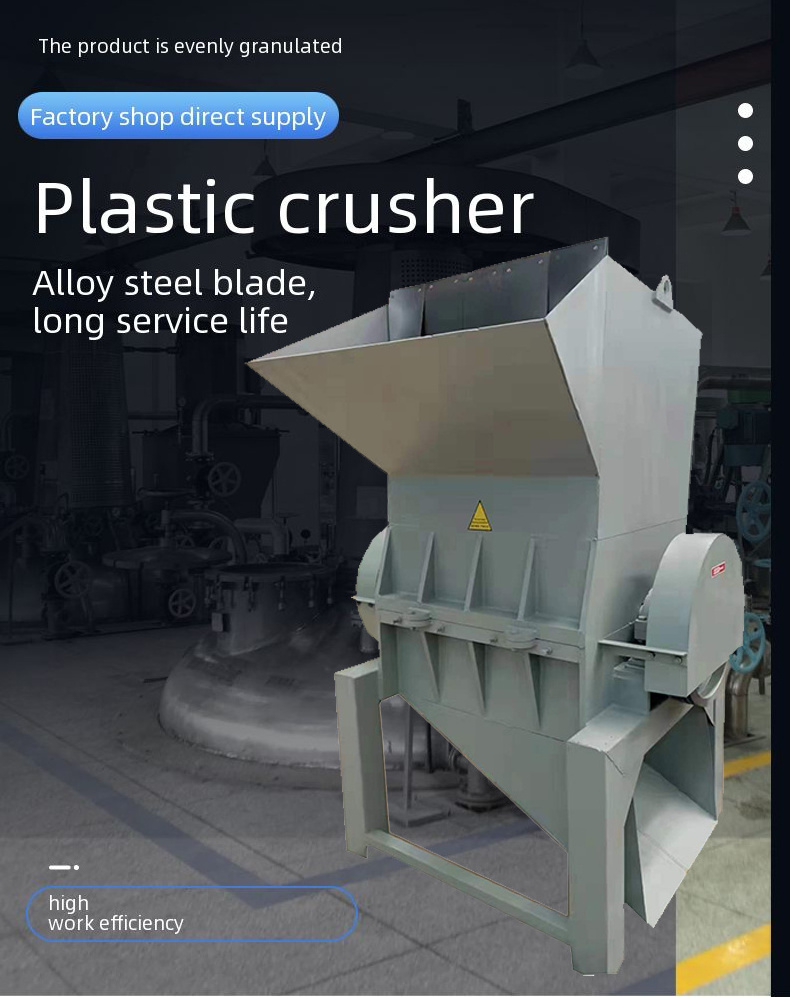

Plastic crusher refers to crushing all kinds of plastic plastics and rubber, such as plastic profiles, pipes, rods, wires, films, waste rubber products. Granular materials can be directly extruded as raw materials for production.
This kind of machine adopts alloy steel blade, with long service life; at the same time, the machine adopts separate design, easy maintenance and cleaning, and has a double-layer structure, equipped with sound insulation materials, with low noise. The knife shaft seat has been strictly balanced test, and the machine base is equipped with four wheels, so it is easy to move.
Product Paramenters
|
Model
|
Motor power
(kw）/(HP)
|
Spindle speed
（r/min)
|
Spindle diameter
(mm)
|
Number of moving knives
|
Fixed number of knives
|
work efficiency(kg/h)
|
|
QL300
|
5.5/7
|
610
|
72
|
9
|
2
|
150-200
|
|
QL400
|
7.5/10
|
580
|
72
|
12
|
2
|
250-400
|
|
QL500
|
11/15
|
600
|
78
|
15
|
2
|
300-500
|
|
QL600
|
15/20
|
506
|
82
|
18
|
4
|
500-600
|
|
QL700
|
22/30
|
493
|
110
|
21
|
4
|
600-700
|
|
QL800
|
30/40
|
440
|
110
|
24
|
4
|
700-800
|

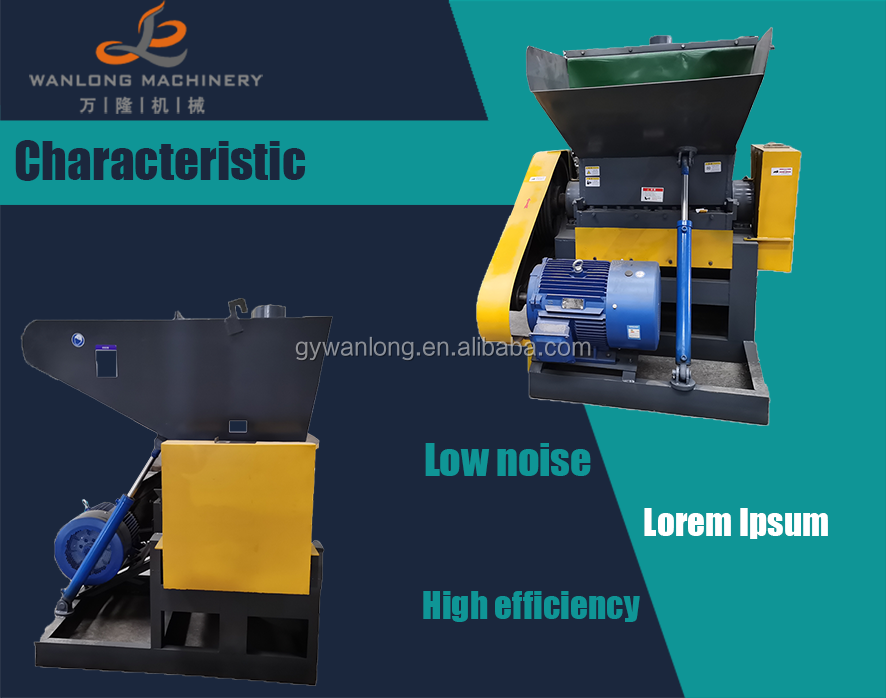

Characteristic
Main Body:
The double shaft crusher adopts high quality steel welding to eliminate stress treatment and overall processing to ensure long-term stability of the machine.
Flake cutter blades are suitable for recycling and restoring of conventional sheets,
tube plastics, profiles, packing plastics,
extrusion mold products and runners, etc.
extrusion mold products and runners, etc.

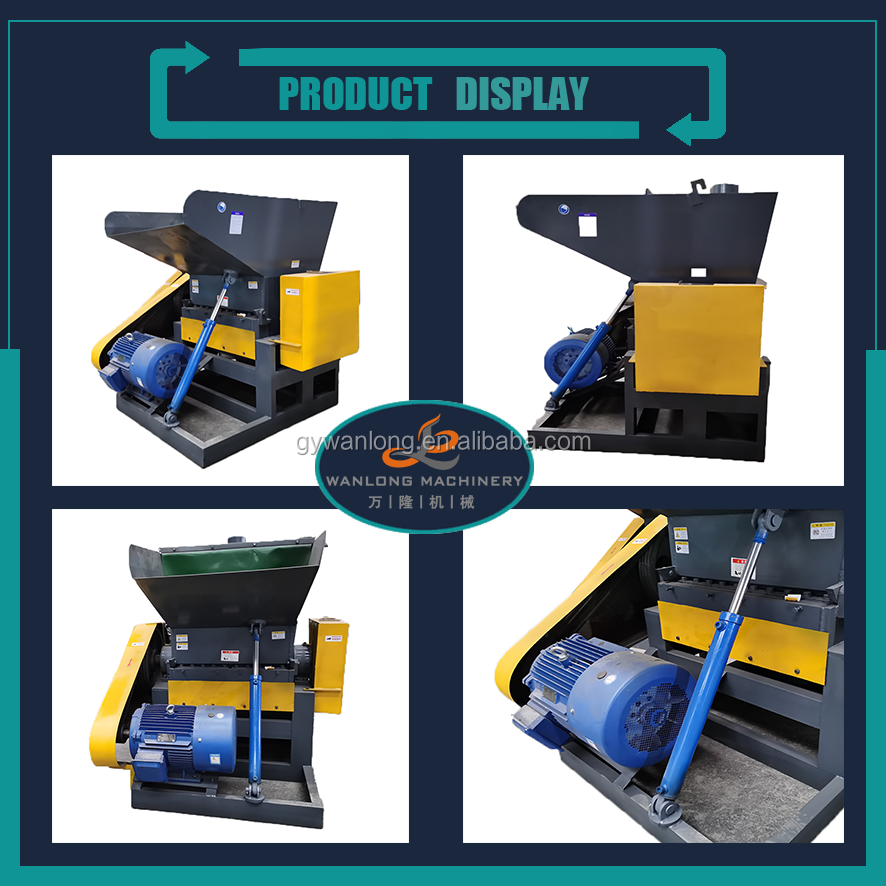

Details Images
Rotary Knife:
Special alloy steel, forging billet, precision machining, heat treatment and multiple freezing heat treatment technologies are adopted for rotary cutter. Its toughness and hardness can be reused to determine cutting performance and service life. The fixed knife adopts the patented hook type installation, optimizes the tool replacement function, and makes the blade maintenance and replacement more efficient.
Scope of application
Application fields:
It is widely used in industrial waste recycling, medical recycling, electronic recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking and other industries.
Applicable materials:
1. Various hollow containers: plastic beverage cans, plastic barrels, iron cans, packaging boxes.
2. Waste household appliances: TV, washing machine, refrigerator shell
3. Pipe material: large pipe, pipe fitting and PE pipe
4. Waste formwork: wooden pallet, plastic pallet and truck pallet
5. Waste tires: Automobile tires, truck tires
6. Scrap metal: automobile shell, aluminum alloy die casting waste, engine shell, gearbox, lead and steel plate with thickness less than 5mm.
7. Food waste, garbage, animal carcass, RDF derivatives, medical waste, biological straw, garden waste.
8. Rubber head material, paper mill rope, waste paper, corrugated paper.

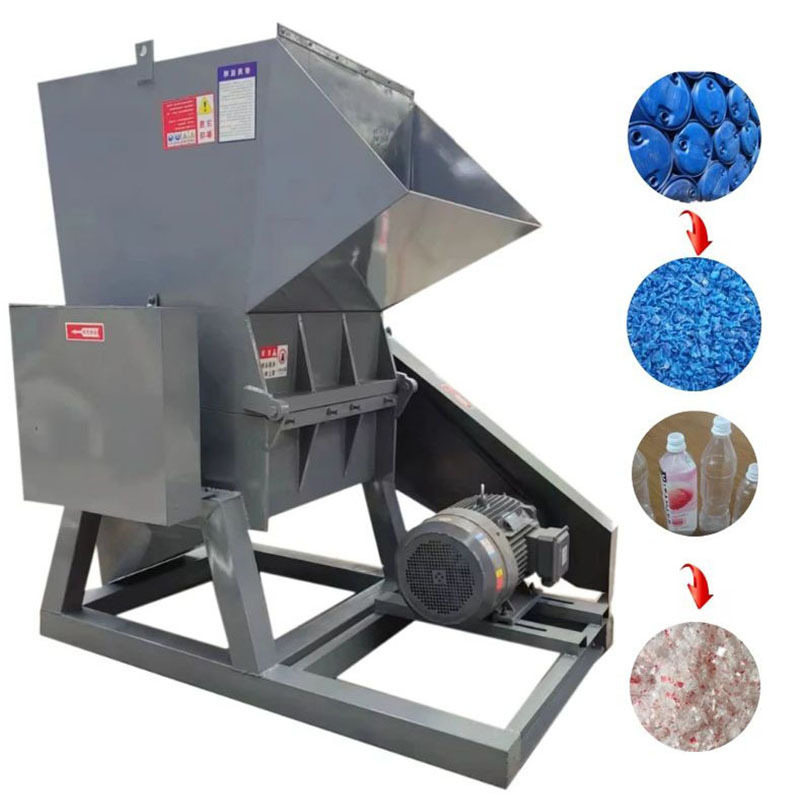

Finished Product
Our Company
Why Choose Us
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. You can also use Trade Assurance by Alibaba for product quality protection, punctual shipment protection and payment protection.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from Alibaba can get a discount. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you help chose suitable products?
A: Yes. We have many experts who have worked in this field for many years. They can help you select the most suitable products according to your actual condition. And they can design proper process flow based on your special situation. If necessary, we can even send professionals to your local place for site planning and work-flow design.
Q: When do you deliver the goods?
A:We usually deliver the goods within 10 days depending on detailed product. We will advise the detailed delivery time according to your specific inquiry.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
