Quick Details
-
Weight:
-
100 KG, 2000KG
-
Dimension(L*W*H):
-
120x120x80cm, 7000*1200*1600mm
-
Model No.:
-
RE-700 Box Washer
-
Material:
-
Stainless Steel 304
-
Conveying speed:
-
0-15m/min adjustable
-
Water consumption:
-
About 500L/h
-
Capacity:
-
500-800pcs/h
-
Voltage:
-
220V/380V
-
Power(W):
-
2.2kw-18kw
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
zzreally
-
Type:
-
chicken cage washing cleaning machine
-
Weight:
-
100 KG, 2000KG
-
Dimension(L*W*H):
-
120x120x80cm, 7000*1200*1600mm
-
Model No.:
-
RE-700 Box Washer
-
Material:
-
Stainless Steel 304
-
Conveying speed:
-
0-15m/min adjustable
-
Water consumption:
-
About 500L/h
-
Capacity:
-
500-800pcs/h
-
Voltage:
-
220V/380V
-
Power(W):
-
2.2kw-18kw
Poultry cage washing machine/ plastic chicken house washing machine
Skype:coco.feng0
Box washer Function :
Main parts: conveying system, water tank with filtration, water recirculation pumps, steam heating, spray nozzles, electrical control system.
Working principal: steam is injected to water directly for heating; the spraying nozzles are used in all directions, so crates can be cleaned from different directions; there are three washing sections, 1st section by spraying alkali solution, cleaning temperature 80 degrees; 2nd section by spraying hot water, temperature 80 degrees; 3rd by normal water cleaning and mean while cool the crates before output;
Box washer usage:
Box washer specification:
| Number | Name | Quantity | Material |
| 1 | Body | 1 set | SUS304 |
| 2 | Stainless steel wire belt | 1 set | SUS304 |
| 3 | Stainless steel pipe support | 1 set | SUS304 |
| 4 | Variable-frenquence governor | 1 set | |
| 5 | Motor reducer | 1 set | |
| 6 | Multi-stage pumps | 1 set | |
| 7 | Controller | 1 set | |
| 8 | Bearing | 1 set | SUS304 |
| 9 | Cable | 1 set | fine copper |
| 10 | Nozzle | 1 set | SUS304 |
| 11 | Drive sprocket | 1 set | SUS304 |
| 12 | Temperature | 1 set |
|

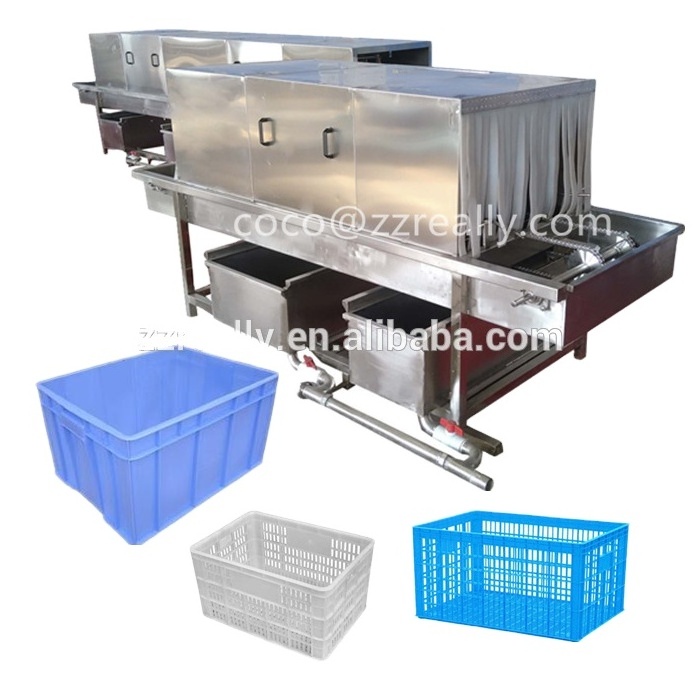

Box washer pictures show:
Working principle of plastic pallets washing machine
1>.The hot water in the box can be moved into Sprinkler pipe by the water pump,and then it can formed to high pressure water spraying in the baskets
2> this basket can be washed through three water tanks ,the firstly it’s washed in the Alkali water tank,then washed by the hot water, and then the clear water. After the three tanks ,the basket can be washed more cleaner
Our factory
Our certification
If you have any questions about our chicken cage washing machine, please feel free to contact us!
