Quick Details
-
Brand Name:
-
Hongjin
-
Model Number:
-
HJ-950, UVC254
-
Range:
-
254
-
Wavelength coverage:
-
248nm~262nm
-
Peak wavelength:
-
254nm
-
Irradiance measuring span:
-
3999uW/cm2, 39.99mW/cm2
-
Resolution ratio:
-
1uW/cm2
-
Parasitic:
-
light beyond ultraviolent band: <0.1%
-
Accuracy:
-
±5%+2 words
-
Sampling rate:
-
2.5 times per second
-
Weight:
-
350 g (probe included)
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
Hongjin
-
Model Number:
-
HJ-950, UVC254
-
Range:
-
254
-
Wavelength coverage:
-
248nm~262nm
-
Peak wavelength:
-
254nm
-
Irradiance measuring span:
-
3999uW/cm2, 39.99mW/cm2
-
Resolution ratio:
-
1uW/cm2
-
Parasitic:
-
light beyond ultraviolent band: <0.1%
-
Accuracy:
-
±5%+2 words
-
Sampling rate:
-
2.5 times per second
-
Weight:
-
350 g (probe included)
Product Description
Product Features:

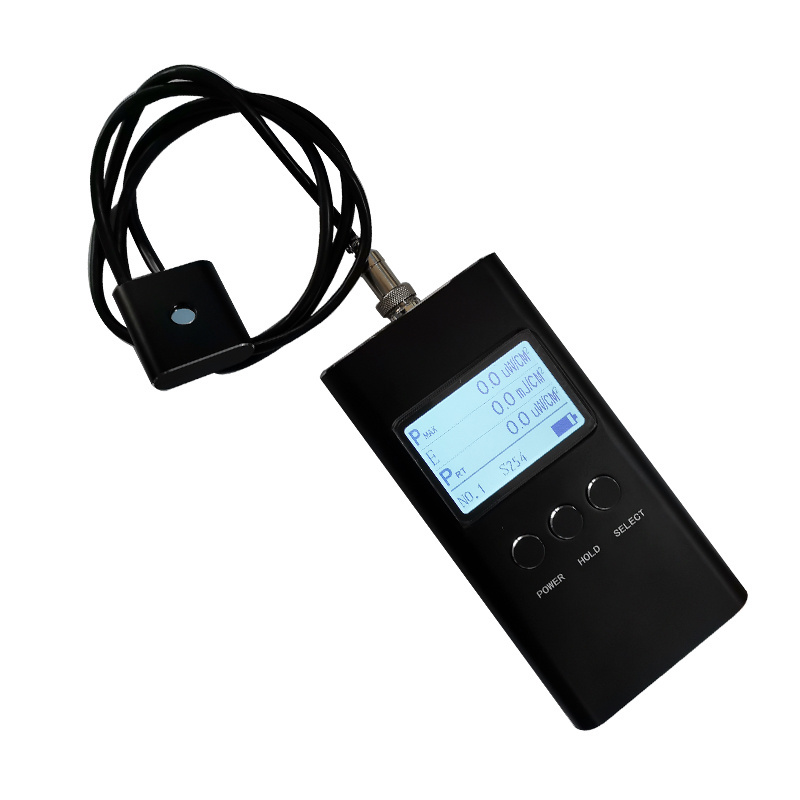

1. Professional and quality UV meter
2. Narrow-band spectrum248nm~262nm, 254nm peak wavelength
3. Large scale integrated circuit ensures high precision and stability
4. UV probe comprises of visible light insulation diaphragm, narrow-band optical filter and gallium arsenide sensor.
5. Shell of aluminium alloy probe is equipped with fixed screw holes, which facilitates to measure to properly install the probe with ease.
6. Width of measuring span, 1uW/cm2~39.99mW/cm2
Technical Parameters
| Accuracy | ±10% |
| Response time | 1 second |
| Working environment Temperature | (0~40) |
| Size and weight | 180mm×80mm×36mm 0.2kg |
| Power | 9V battery(6F22)1pc |
