Nude Solar Panel(Electrical Performance):
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1.5years
-
Brand Name:
-
LLSolar
-
Model Number:
-
LL-YT400W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
59*93CM
-
Product name:
-

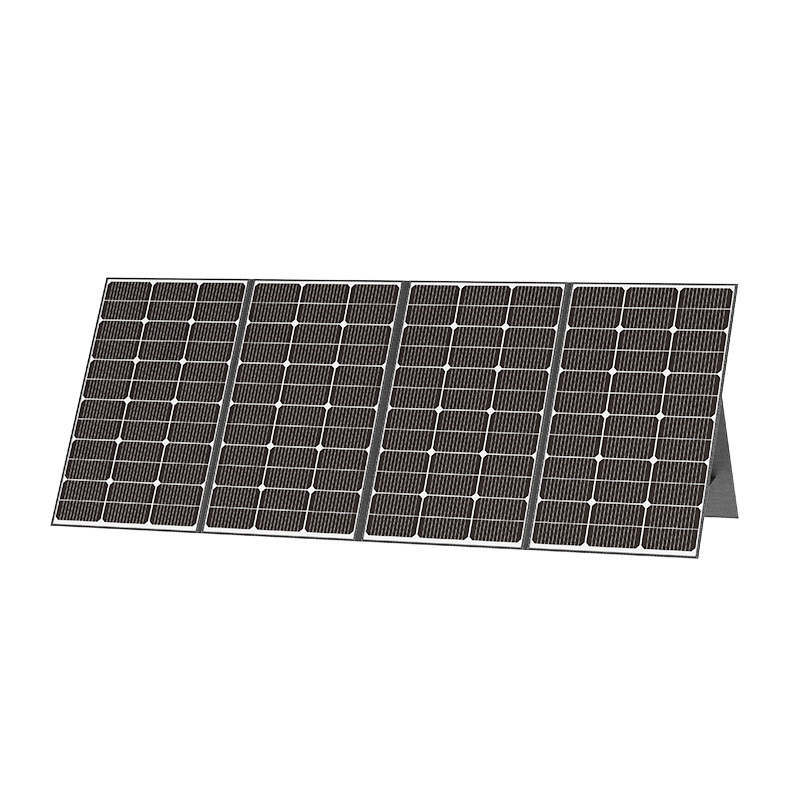

Portable 400 watt solar panel
-
Solar cell efficiency:
-
up to 23%
-
Keyword:
-
Ultra light and thin
-
Material:
-
ETFE+EVA+Solar cell+EVA+Compound Fiber Material+Waterproof fabric
-
Efficiency:
-
23%
-
Folded Size:
-
59*93*5CM
-
Unfolded Size:
-
233.8*93CM
-
Junction Box:
-
2M MC4 ,14AWG
-
Operate Temperature:
-
-20 - 85 centigrade
-
Application:
-
charge for power station,24V battery,outdoor activities
-
Certificate:
-
CE ROHS FCC UL PSE CA65
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, All Black, Flexible, Foldable
-
Panel Efficiency:
-
23%
-
Warranty:
-
1.5years
-
Brand Name:
-
LLSolar
-
Model Number:
-
LL-YT400W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
59*93CM
-
Product name:
-
Portable 400 watt solar panel
-
Solar cell efficiency:
-
up to 23%
-
Keyword:
-
Ultra light and thin
-
Material:
-
ETFE+EVA+Solar cell+EVA+Compound Fiber Material+Waterproof fabric
-
Efficiency:
-
23%
-
Folded Size:
-
59*93*5CM
-
Unfolded Size:
-
233.8*93CM
-
Junction Box:
-
2M MC4 ,14AWG
-
Operate Temperature:
-
-20 - 85 centigrade
-
Application:
-
charge for power station,24V battery,outdoor activities
-
Certificate:
-
CE ROHS FCC UL PSE CA65
Products Description
Parameter:
Output Item
|
The accurated data
|
Output Power(@STC)
|
420.0 W ±5%
|
Open Voltage(@STC)
|
48.9V ±5%
|
Standard Voltage(@STC)
|
40.3V ±5%
|
Standard Current(@STC)
|
10.4A ±5%
|
Short Circuit(@STC)
|
11.4A ±5%
|
Advantage:
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 12V battery,power station;
6)With handle and stand to adjust angle to sunshine;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)Compact size design and easy to take along;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days
Details shown
1)with bag for pack with cable ;
2)with waterproof connector;
3)The conjunction box is inside of the waterproof bag and special cable included;
4)Suitable handle to take anywhere;
Hottest Selling of folding solar panel series:
|
|
|
|
|
|
|||||
ITEMS NO.
|
LL-YT60W
|
LL-YT120
|
LL-YT120
|
LL-YT210
|
LL-YT400
|
|||||
Max power
|
60W(2 folds)
|
120W(2 folds)
|
120W(4 folds)
|
200W(4 folds)
|
400W(4folds)
|
|||||
Cells Type
|
Monocrystalline Silicon
|
Monocrystalline Silicon
|
Monocrystalline Silicon
|
Monocrystalline Silicon
|
Monocrystalline Silicon
|
|||||
Power tolerance
|
±3%
|
±3%
|
±3%
|
±3%
|
±3%
|
|||||
Cells efficiency(%)
|
23%
|
23%
|
23%
|
23%
|
23%
|
|||||
Max voltage(Vmp)
|
19.44V
|
19.44V
|
19.44V
|
19.44V
|
19.44V
|
|||||
Max current(IMP)
|
3.086A
|
6.172A
|
6.172A
|
10.802A
|
10.4A
|
|||||
Open circuit voltage(Voc)
|
24.48V
|
24.48V
|
24.48V
|
24.48V
|
48.9V
|
|||||
Short-circuit current(Isc)
|
3.333A
|
6.665A
|
11.666A
|
11.666A
|
11.4A
|
|||||
Output Port
|
DC+USB-A + USB-C(with PD45W)/MC4 /SAE/Anderson option
|
DC+USB-A + USB-C(with PD45W) /MC4 /SAE/Anderson option
|
DC+USB-A + USB-C(with PD45W) /MC4 /SAE/Anderson option
|
DC+USB-A + USB-C(with PD45W) /MC4 /SAE/Anderson option
|
DC+USB-A + USB-C(with PD45W) /MC4 /SAE/Anderson option
|
|||||
Accessories
|
1)DC5521 to DC5521(2M ,18AWG), 2)10 in 1 connectors
|
1)DC to MC4 cable 2)1 drag 6 connectors
|
1)DC to MC4 cable 2)1 drag 6 connectors
|
1)DC to MC4 cable 2)1 drag 6 connectors
|
1)DC to MC4 cable 2)1 drag 6 connectors
|
|||||
Unfolded size
|
110*47CM/43.31*18.50inch
|
110*61CM/43.31*24.02inch
|
181.2*47CM/71.34*18.50Inch
|
222*61CM/87.4*24.02inch
|
233.8*93CM/92.05*36.61inch
|
|||||
Folded size
|
47*48*3.1CM/18.5*18.90*1.22inch
|
61*59.7*3.1CM/24.02*23.50*1.22inch
|
49*47*4.2CM/19.29*18.50*1.65
|
61*59.7*4.2CM/24.02*23.50*1.65inch
|
59*93*5CM/23.23*36.61*1.97inch
|
|||||
Unite Product Weight
|
1.7KG/4.32Ibs
|
2.8kg/6.2Ibs
|
3.6kg/7.92Ibs
|
5.3kg/11.66Ibs
|
9.86kg/21.69Ibs
|
|||||
PCS/CTNS
|
4PCS/CTN
|
4PCS/CTN
|
3PCS/CTN
|
3PCS/CTN
|
2PCS/CTN
|
|||||
Operating Temperature(℃):
|
-40℃~+85℃
|
|
|
|
|
|||||
Best Working Temperature
|
+25℃
|
|
|
|
|
|||||
Power temperature coefficient
|
-0.39 to -0.29 %/℃
|
|
|
|
|
|||||
Voltage temperature coefficient
|
-0.29%/℃
|
|
|
|
|
|||||
Current temperature coefficient
|
+0.05%/℃
|
|
|
|
|
|||||
Nominal Operating Cell Temperature
|
45 ± 2℃
|
|
|
|
|
|||||
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃
|
|
|
|
|
|
Manufactuer Process Show
1.
Solar cell cutted by automatic laser machineaccurately ,based on the solar panel power design,test added;
2.
The cutted solar cells was connected and welded accurately by automic welded machine on complex film,test added;
3.
The connected solar cells with EVA was laminated by automatic lamination machine well ,test added;
4.
The glue edge was cutted accurately by laser
machine to modify the solar panel well;
machine to modify the solar panel well;
Patent and Certification.
1)All of our hot selling solar panels are with patent ,EU & USA pantent ,which will authorize our customers to sell all around the world;
2)We have gotten CE,Rohs,FCC,PSE,UL,UKCA,CA65 certification that was full to safely global selling.
FAQ
Q1:Are you a manufacturing in solar panel industry?
A:We are the manufacturers for 11 years since 2013.
Q2:What are the advantages of your company?
A:1)We have stable supply chain and rich experience;
2)Strong R&D strength;
3)Controll product quality by many process of test;
4)Much Shorter Leading time than many others, less than 5 days for neutral products,15 to 20 days for bulk order.
Q3:Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
Q4:What’s kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.
2)Utility model of China and Appearance Patent of Europe.
Q5:Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
Q6:How can you deal with the anti-dumping on solar to USA?
A: DDP trade term to deliver to your appointed address within 25 days by sea,while 14 days by air,all of the ADD and CVD risk
endured by ourselvies.
Q7:How do you ensure quality?
A: 1)High quality of material;
2)Many test during many manufacture process with quality system enforced;
3)Last test result of 100% products confirmed and sent to customers before package;
4)Rich experience on package of infilling or compact pallet;
Q8:How long is the warranty? How to maintain the quality problem? How to deal with the quality problem?
A:1) We can supply 18 months warranty;
2)For minor problem,guidance to instruct to check and test.New items replacement solution if needed;
Q9:What can be noted when choos different watts of solar panels?
A: We will supply reasonable recommendation when devices demand given ,because of all of our sales have professional training and
rich experience;
Q10:What can be noted when using our solar panel?
A:1)Please unfolded the solar panel first to ensure the sunshine can be aimed at the face of solar panel that the solar cells can
be shown,besides,the solar panel can be taken as a power souce,without power storage function;
2)The solar panel need to be exposed fully under sunshine,not covered by window or put in the shade or inside of house.
A:We are the manufacturers for 11 years since 2013.
Q2:What are the advantages of your company?
A:1)We have stable supply chain and rich experience;
2)Strong R&D strength;
3)Controll product quality by many process of test;
4)Much Shorter Leading time than many others, less than 5 days for neutral products,15 to 20 days for bulk order.
Q3:Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
Q4:What’s kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.
2)Utility model of China and Appearance Patent of Europe.
Q5:Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
Q6:How can you deal with the anti-dumping on solar to USA?
A: DDP trade term to deliver to your appointed address within 25 days by sea,while 14 days by air,all of the ADD and CVD risk
endured by ourselvies.
Q7:How do you ensure quality?
A: 1)High quality of material;
2)Many test during many manufacture process with quality system enforced;
3)Last test result of 100% products confirmed and sent to customers before package;
4)Rich experience on package of infilling or compact pallet;
Q8:How long is the warranty? How to maintain the quality problem? How to deal with the quality problem?
A:1) We can supply 18 months warranty;
2)For minor problem,guidance to instruct to check and test.New items replacement solution if needed;
Q9:What can be noted when choos different watts of solar panels?
A: We will supply reasonable recommendation when devices demand given ,because of all of our sales have professional training and
rich experience;
Q10:What can be noted when using our solar panel?
A:1)Please unfolded the solar panel first to ensure the sunshine can be aimed at the face of solar panel that the solar cells can
be shown,besides,the solar panel can be taken as a power souce,without power storage function;
2)The solar panel need to be exposed fully under sunshine,not covered by window or put in the shade or inside of house.
