Quick Details
-
Brand Name:
-
YNDB
-
Model Number:
-
B5L5
-
Safety standard:
-
other
-
Color:
-
Black
-
Brand:
-
YND
-
Certificate:
-
CE
-
Quality:
-
High Qualtiy
-
Type:
-
Dental light
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Brand Name:
-
YNDB
-
Model Number:
-
B5L5
-
Safety standard:
-
other
-
Color:
-
Black
-
Brand:
-
YND
-
Certificate:
-
CE
-
Quality:
-
High Qualtiy
-
Type:
-
Dental light

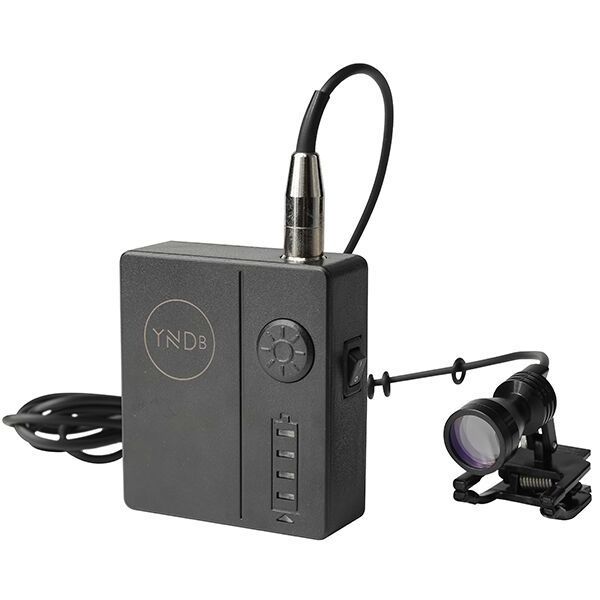

Dental Equipment Led Dental Head Light for loupes
| Model | B5L5 | |
| Optical data | LED type | White high-performance LED (3Watts) |
| Typical colour temperature CCT | 6,300K | |
| Colour Rendering Index CRI | Approximately 70 | |
| Typical luminous flux | 31,000 lux (WD 250mm) | |
| Typical illumination diameter | 70mm (WD 250mm) | |
| Average LED life cycle |
30,000 hours (luminous flux at 70% of
the maximum) |
|
| Electrical data |
Operating voltage /
current |
3.3V /550mA |
| Power consumption | Max. 1.8watts | |
| Working time | 8hours (Max power) | |
| Battery cycle life | >700cycles (3.7V/4400mAh ) | |
| Charging time | <10hours | |
| LED dimming | Push-button switch (25%, 50%,75%,100% Level) | |
| High temperature cut-out | Cooling | Passive |
| Temperature | Temperature control of the LED | |
| External wide range power supply | Primary | AC100 - 240 volts, 50-60 Hz, max. 0.35A |
| Secondary | 5.0V 1A | |
| Dimensions | LED illumination device (D x W x H) | Ø 16mm x 18mm |
| LED Unit Weight |
10.0g (without filter)
|
|
| Battery pack (D x W x H) | 24mm x 66mm x 73mm (Plastic case ) | |
| Battery Weight | 140g | |
| Charger (D x W x H) | 61x 40 x 32 mm (without plug) | |
| Charger Weight | 69 g (without plug) | |
| Protection Class | IP protection class | IP 20 |
| Cable Flexing test | Over 10,000.0 times | |
| Operating conditions | Ambient temperature | 0°C~40°C |
| Relative humidity | 85% max. | |
| Transport and storage conditions | Temperature | —20°C .. +40 ℃ |
| Relative humidity | 10 ... 95 % (non-condensing) |
1."Reasonable price,delivery on time,good services" is our business principle
2.Small order and mixed items are available.
3.Fast delivery
4.Competitive price and good quality.
5.samples and products according to customers' requirement.
Packaging :ca rton box,Aluminum case,nylon case,we can pack according to your requirement
Shipping :Generally, we choose DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products .
Charger certification: UL ,CE, FCC
