Quick Details
-
Brand Name:
-
Fangpusun
-
Model Number:
-
MPPT60
-
Work Time (h):
-
24
-
Max PV Power:
-
4500W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE ROHS ISO9001
-
Warranty:
-
2 YEARS
-
Nominal Battery Voltages:
-
12, 24, 36, 48, or 60 VDC (Single model)
-
PV Open Circuit Voltage (VOC):
-
150 VDC absolute maximum coldest conditions / 145 VDC start-up
-
Power Conversion Efficiency:
-
98.1% @ 60 Amps in at 48 VDC System voltage - Typical
-
Charging Regulation:
-
Five Stages: Bulk, Absorption, Float, Silent and Equalization
-
Remote Display and Controller:
-
Optional Mate or Mate2 with RS232 Serial Communications Port
-
Operating Temperature Range:
-
Minimum -40° to maximum 60° C
-
Voltage Regulation Set points:
-
10 to 80 VDC user adjustable with password protection
-
Environmental Rating:
-
Indoor Type 1
-
Weight:
-
6.5kgs
-
Dimensions:
-
40 x 14 x 10 cm
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fangpusun
-
Model Number:
-
MPPT60
-
Work Time (h):
-
24
-
Max PV Power:
-
4500W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE ROHS ISO9001
-
Warranty:
-
2 YEARS
-
Nominal Battery Voltages:
-
12, 24, 36, 48, or 60 VDC (Single model)
-
PV Open Circuit Voltage (VOC):
-
150 VDC absolute maximum coldest conditions / 145 VDC start-up
-
Power Conversion Efficiency:
-
98.1% @ 60 Amps in at 48 VDC System voltage - Typical
-
Charging Regulation:
-
Five Stages: Bulk, Absorption, Float, Silent and Equalization
-
Remote Display and Controller:
-
Optional Mate or Mate2 with RS232 Serial Communications Port
-
Operating Temperature Range:
-
Minimum -40° to maximum 60° C
-
Voltage Regulation Set points:
-
10 to 80 VDC user adjustable with password protection
-
Environmental Rating:
-
Indoor Type 1
-
Weight:
-
6.5kgs
-
Dimensions:
-
40 x 14 x 10 cm

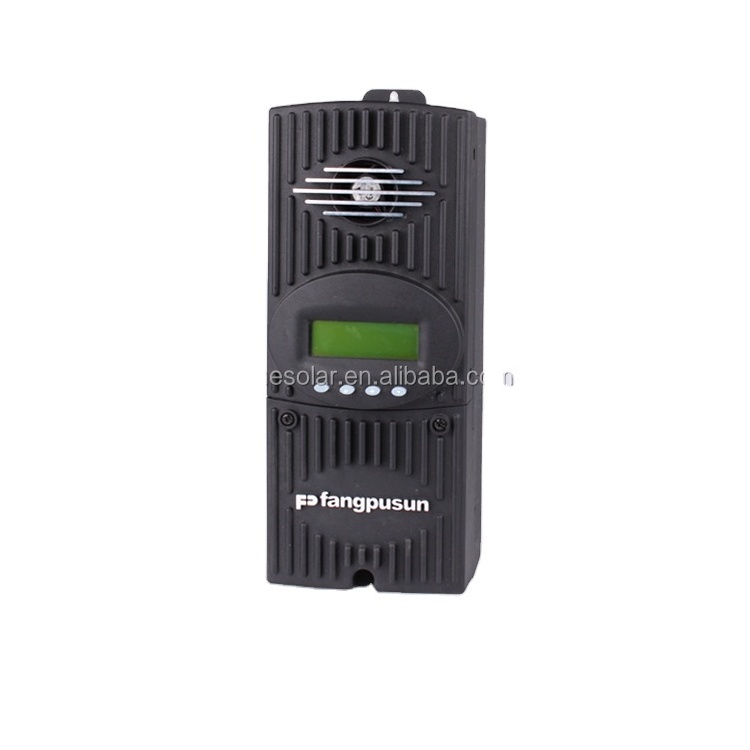

fangpusun FLEXmax MPPT
MPPT60 MPPT80
The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from fangpusun.The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).
Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.
FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.
Product features
Increases PV Array Output by up to 30%
Advanced Continuous Maximum Power Point Tracking
Full Power Output in Ambient Temperatures up to 104°F (40°C)
Battery Voltages from 12 VDC to 60 VDC
Programmable Auxiliary Control Output
Built-in 128 days of Data Logging
Fully Network Integrated and Programmable
Displays
Text LCD display for operating parameters,fault messages,self test
Options
Menu-driven operation
Programming by buttons
Certificates
Compliant with European Standards(CE)
RoHS compliant
Made in China
|
Nominal Battery Voltages |
12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up) |
|
Maximum Output Current |
60 amps @ 104° F (40°C) with adjustable current limit |
|
Maximum Solar Array STC Nameplate |
12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts |
|
NEC Recommended Solar Array STC Nameplate |
12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts |
|
PV Open Circuit Voltage (VOC) |
150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum |
|
Standby Power Consumption |
Less than 1 Watt typical |
|
Power Conversion Efficiency |
98.1% @ 60 Amps in at 48 VDC System voltage - Typical |
|
Charging Regulation |
Five Stages: Bulk, Absorption, Float, Silent and Equalization |
|
Voltage Regulation Set points |
10 to 80 VDC user adjustable with password protection |
|
Equalization Charging |
Programmable Voltage Setpoint and Duration - Automatic Termination when completed |
|
Battery Temperature Compensation |
Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell |
|
Voltage Step-Down Capability |
Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input |
|
Programmable Auxilary Control Output |
12 VDC output signal which can be programmed for different control applications
|
|
Status Display |
3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total |
|
Remote Display and Controller |
Optional Mate or Mate2 with RS232 Serial Communications Port |
|
Network Cabeling |
Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires) |
|
Data Logging |
Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production |
|
Hydro Turbine Applications |
Consult factory for approved Turbines |
|
Positive Ground Applications |
Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications) |
|
Operating Temperature Range |
Minimum -40° to maximum 60° C
|
|
Environmental Rating |
Indoor Type 1 |
|
Conduit Knockouts |
One 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottom |
|
Weight - Unit |
11.65 lbs (5.3 kg) |
|
- Shipping |
13.64 lbs (6.0 kg) |
|
Dimensions - Unit |
13.5 x 5.75 x 4" (40 x 14 x 10 cm) |
|
- Shipping |
18 x 11 x 8" (46 x 30 x 20 cm) |
|
Options |
Remote Temperature Sensor (RTS), HUB 4,
|
|
Menu Languages |
English & Spanish |
Box Packing as below picture, 2Pcs per carton.
Box measurment: 510*220*285mm
Carton measurment: 550*405*285mm
G.W.: 14.58Kgs/ Carton
we also can supply OEM service, design customer's LOGO on the color box, MOQ100Pcs per model.
