Quick Details
-
Max. Spindle Speed (r.p.m):
-
2600 r.p.m
-
Max. Weight of Workpiece(kg):
-
8000kg
-
Spindle Bore(mm):
-
320 m'm
-
Width of bed (mm):
-
1250 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
3500
-
Travel (X Axis)(mm):
-
1400 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
3950*6300*3950
-
Model Number:
-
CQ5235
-
Voltage:
-
380V±10% 50HZ
-
Weight (KG):
-
28000
-
Marketing Type:
-
double column vertical lathe
-
Name:
-
double column vertical lathe
-
Table diameter:
-
2250mm
-
Max. cutting diameter of the workpiece:
-
3500mm
-
Maximum height of work:
-
2000mm
-
Maximum weight of work:
-
8000kg
-
Maximum total cutting force:
-
5500kg
-
Beam travel:
-
1250mm
-
Beam moving speed:
-
350mm/min
-
Machine size:
-
3950mm*6300mm*3950mm
-
Machine weight:
-
28000kg
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
3500
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
2600 r.p.m
-
Max. Weight of Workpiece(kg):
-
8000kg
-
Spindle Bore(mm):
-
320 m'm
-
Width of bed (mm):
-
1250 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
3500
-
Travel (X Axis)(mm):
-
1400 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
3950*6300*3950
-
Model Number:
-
CQ5235
-
Voltage:
-
380V±10% 50HZ
-
Weight (KG):
-
28000
-
Marketing Type:
-
double column vertical lathe
-
Name:
-
double column vertical lathe
-
Table diameter:
-
2250mm
-
Max. cutting diameter of the workpiece:
-
3500mm
-
Maximum height of work:
-
2000mm
-
Maximum weight of work:
-
8000kg
-
Maximum total cutting force:
-
5500kg
-
Beam travel:
-
1250mm
-
Beam moving speed:
-
350mm/min
-
Machine size:
-
3950mm*6300mm*3950mm
-
Machine weight:
-
28000kg

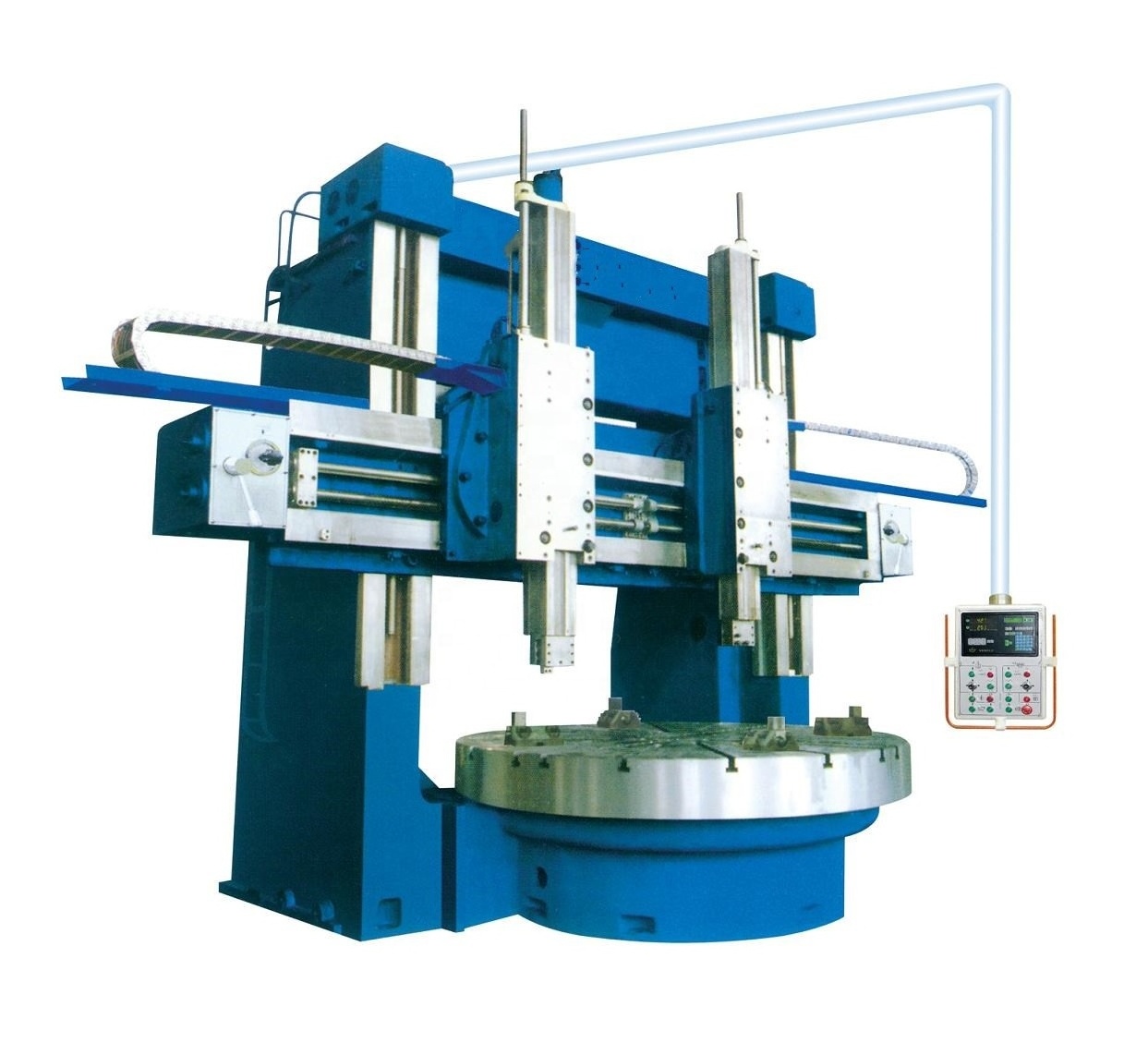

Factory Direct sales double column vertical lathe CNC vertical lathe CNC special machine vertical lathe CK5225Q
This series of double post upright car has a vertical tool rest and a side tool rest. Suitable for high speed steel tools and carbide tools processing all kinds of ferrous metals, non-ferrous metals and some non-metallic materials, can turn the inner cylinder, outer cylinder, end face, inner cone, outer cone and grooving, drilling, reaming, and reaming.
The worktable adopts hydrostatic guide rail, and the spindle radial adopts high-precision NN30 type (D class) bearing, which has high rotation accuracy and large bearing capacity.
After strict manual aging and vibration aging, the casting of double column vertical turning machine ensures the rigidity and stability of the machine tool. The use of advanced ultra-audio quenching process, so that the machine life is longer. Electrical control by PLC, high reliability.
The double column vertical gear box adopts 40Cr grinding gear, which has high precision and low voice. Hydraulic parts, electrical parts all use domestic famous manufacturers products, high reliability.
The sliding surface of double column vertical car guide rail adopts plastering treatment to improve wear resistance. Guide lubrication adopts centralized oil supply, which is very convenient. The standard equipment is equipped with grating digital display configuration of famous domestic manufacturers.
