Quick Details
-
Power:
-
3000, 3KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
950*600*1100MM
-
After-sales service:
-
online and offline support
-
Place of origin:
-
Shanghai,China
-
Weight::
-
300KG
-
Capacity:
-
300-500kg/h
-
Material:
-
304 S/S
-
Width:
-
Customized
-
MOQ:
-
1 set
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DARIBO
-
Voltage:
-
380 V, 380V
-
Power:
-
3000, 3KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
950*600*1100MM
-
After-sales service:
-
online and offline support
-
Place of origin:
-
Shanghai,China
-
Weight::
-
300KG
-
Capacity:
-
300-500kg/h
-
Material:
-
304 S/S
-
Width:
-
Customized
-
MOQ:
-
1 set
-
Certification:
-
CE ISO9001

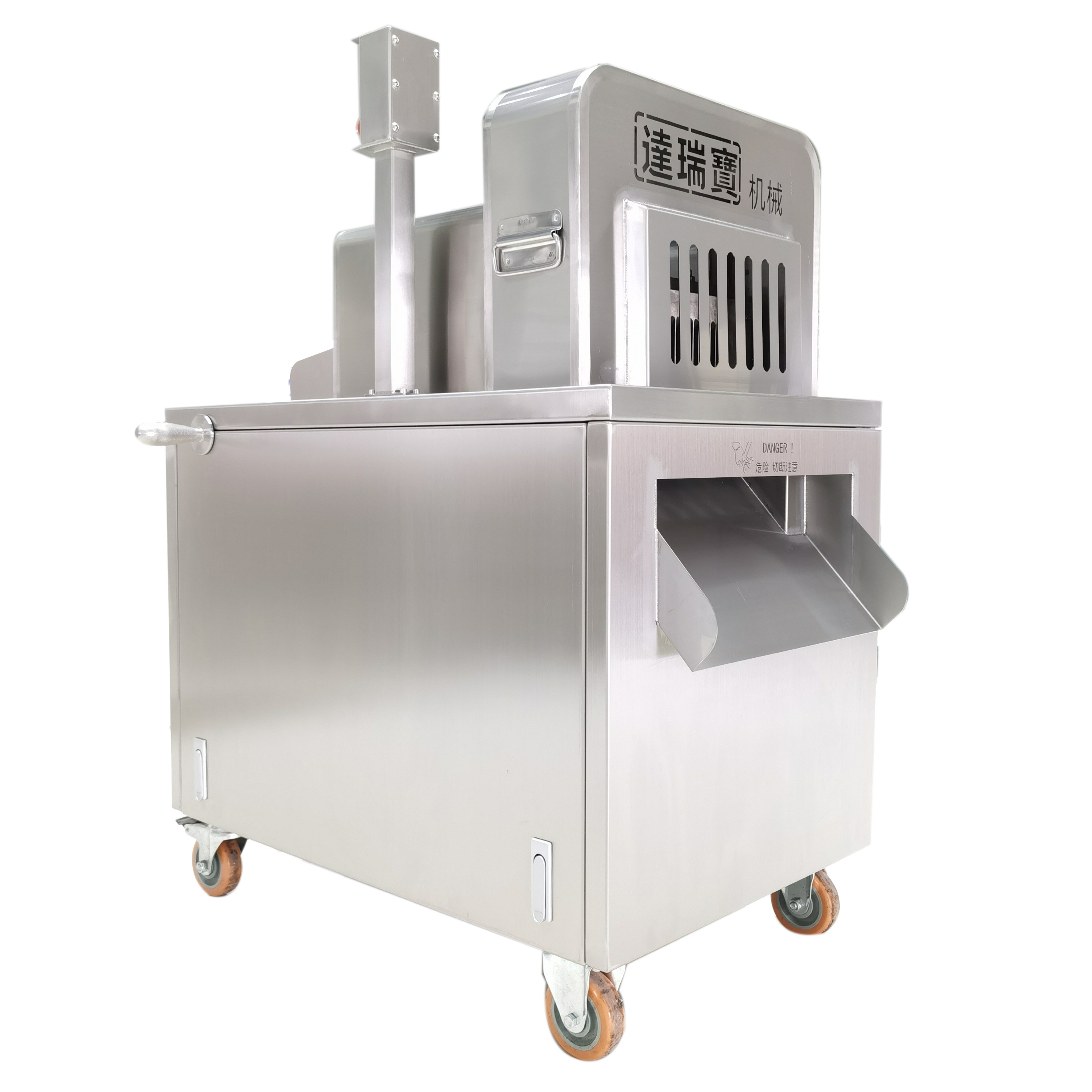

Factory Price Frozen Meat Dicing Machine Chicken Duck Fish Beef Meat and Bone Cutting Machine Custom Cube Size Meat Cutter
| Condition of meat | DRB-QK300 |
| Raw meat | |
| Cooked meat | |
| Cartilage meat | √ |
| Bony meat | √ |
| Partial freezing meat | √ |
| Frozen meat | √ |
P S: The table cell with "√"means that our machine can give the best performance on this specific condition of meat.
2 Customization is SUPPORTED.
We will try our best to do ANYTHING as long as you can FIGURE OUT.
| Model |
DRB-QK300 |
| Capacity |
350-500KG/H |
|
Voltage |
380V |
|
Power |
3KW |
|
Inlet dimesnsion(W*H) |
300*70MM |
|
Width of Cube |
25 MM |
|
Length of Cube |
17-35MM |
|
Material |
304 Stainless Steel |
|
Dimension |
950*600*1100MM |
|
Weight |
300KG |
1 PROFESSIONAL meat cutting technology.
1.1 The LENGTH of finished product is adjustable by the following device.
(PS:The WIDTH of finished product is not adjustable,which is subject to the machine's design.
The HEIGHT of finished product is not adjustable,which depends on the meat's thickness. )
1.1 Direct cutting tools ! Make meat more cubic !
Compared with the rotational cutting tool, this machine adopts direct cutting tools to cut meat more completely and with less noise. (The noise value in normal operation is lower than the national environmental protection noise value.)
1.2
Multiple sets of upper compression feed belt ! Nightmare of irregularity !
The new structure is specially designed for irregular materials. According to the irregular height of the material, the machine can automatically adjust the height of the press wheel, so as to achieve a single cutting molding.
2. HIGH safety standards.
2.1 A utomatic device ! Make machine has own strength.
Automatic lubrication system; Automatic alarm stop for lacking of oil.
Automatic circulation heat dissipation of motor air inlet.
2.2 D esign of protecting products
The machine's electric control system is equipped with electricity leakage protection, motor overcurrent protection, phase loss protection, automatic oil supply system , oil shortage protection,etc., to ensure the fact that the products are reliably protected in the harsh power grid environment.
2.3 Design of protecting operator
Independent safety protection cover and safety protection induction switch design can ensure the personal safety of operators during normal operation.
3. EASY to clean and operate.
3.1 This machine is one-key operation.
3.2 As an independent device, the feeding device can be quickly disassembled and cleaned. Meanwhile, meat and bone fragments and sewage are discharged from the sewage pipe and discharge port.
