Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MING
-
Dimension(L*W*H):
-
1.4*1*1.8
-
Weight:
-
1.5 KG
-
Power:
-
2.2KW
-
Warranty:
-
1 Year
-
Commodity name:
-

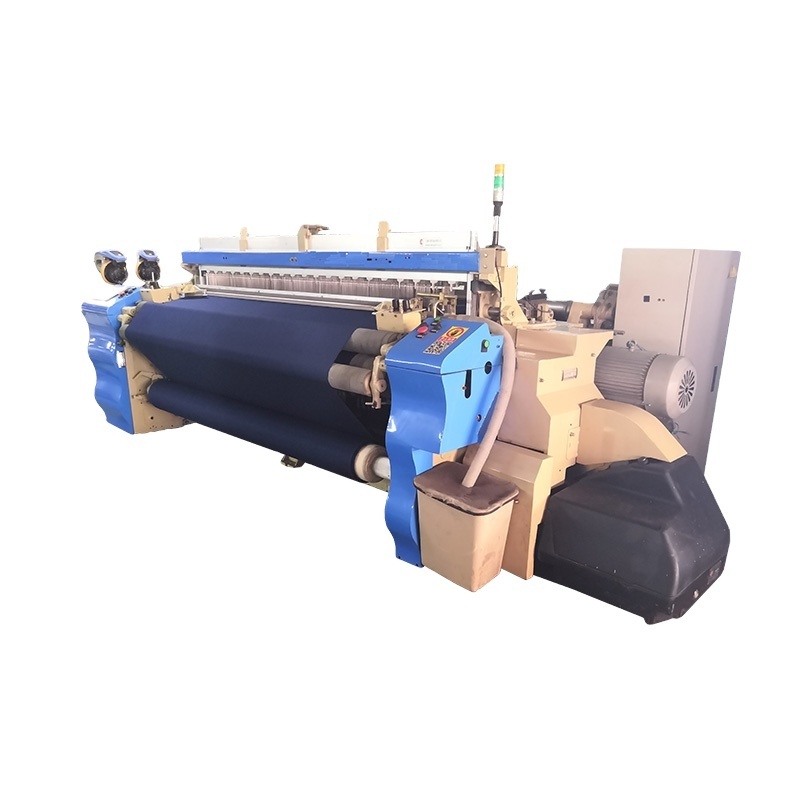

Inbuilt compressor Independent air jet loom weaving machine
-
Reed width:
-
140~360cm
-
Shedding:
-
Dobby Shedding
-
Machine type:
-
cotton loom machine
-
Colors:
-
2~6 colors
-
Speed:
-
800-1200 RPM
-
Export Markets:
-
India, Turkey, Russia, Uzbekistan, Indonesia, Egypt
-
Related product:
-
MA710 Economic air jet loom
-
Function:
-
Jeans, Denim,Bedding, Shirting, 100% cotton fabric
-
Capacity:
-
700 sets/month
Quick Details
-
Type:
-
Air Jet Loom
-
Production Capacity:
-
95%-100%
-
Application:
-
Fabric making
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MING
-
Dimension(L*W*H):
-
1.4*1*1.8
-
Weight:
-
1.5 KG
-
Power:
-
2.2KW
-
Warranty:
-
1 Year
-
Commodity name:
-
Inbuilt compressor Independent air jet loom weaving machine
-
Reed width:
-
140~360cm
-
Shedding:
-
Dobby Shedding
-
Machine type:
-
cotton loom machine
-
Colors:
-
2~6 colors
-
Speed:
-
800-1200 RPM
-
Export Markets:
-
India, Turkey, Russia, Uzbekistan, Indonesia, Egypt
-
Related product:
-
MA710 Economic air jet loom
-
Function:
-
Jeans, Denim,Bedding, Shirting, 100% cotton fabric
-
Capacity:
-
700 sets/month
|
Specifications of MA9210 High Speed Air Jet Loom
|
|
|
Optional
|
||
|
Reed width
|
Nominal
|
150,170,190,210,230,250,280,340cm
|
|
||
|
|
Effective
|
nominal:0--60cm(l 50-250cm) 0--80cm ( >280cm)
|
|
||
|
Working range
|
|
short yarn):nel00-ne2.5
filament):22dtex-1350dtex
|
|
||
|
Weft selection
|
|
1, 2, 4 or 6 colors
|
|
||
|
Motor
|
Start mode
|
Start motor at high speed
|
|
||
|
|
|
Push-button start, stop, f/r slow move
|
|
||
|
|
|
Push-button switch handed
|
|
||
|
|
Power
|
2.8Kw, 3.0Kw, 3.8Kw, 4.5Kw
|
|
||
|
Weft insertion
|
Method
|
Main nozzle+swing nozzle+sub nozzle+abnormality lock
|
Weft brake
|
||
|
|
Control
|
Import high-frequency solenoid valve,computer program contol
|
|
||
|
|
Supporting spray solenoid-valve
|
Supporting spray solenoid valve integrated with flow cavity
|
|
||
|
|
Measuring weft storage
|
Electric control loop separate weft storage
|
Ballooning prevention device
|
||
|
Beating
|
|
Double side tank oil-bath type four-bar beating-up motion,six-bar beating-up for 280cm and above
|
|
||
|
|
|
Multi-sleysword solid beating-up warp and weft system
|
|
||
|
|
|
Multi-supporting base, balance weight
|
|
||
|
Shedding
|
|
Crank type flat shedding
|
|
||
|
|
|
Positive cam shedding at bottom
|
|
||
|
|
|
Electric dobby shedding
|
|
||
|
|
|
Electronic jacquard shedding
|
Double-warp beam
|
||
|
Let-off
|
Flange diameter
|
Electric servo continuous let-off
|
|
||
|
|
|
Positive twin back beam
|
|
||
|
|
|
800mm
|
1000mm
|
||
|
Take-up
|
Take up method
|
Electric servo continuous take-up
|
|
||
|
|
Take up method
|
On loom take up diameter(Max dia:600mm)
|
Outside loom take up diameter(Max dia:1000mm)
|
||
|
|
Temple
|
Upper
|
|
||
|
Selvedge
|
|
Leno yarn by planetary gear
|
|
||
|
Lubrication
|
|
For main driving parts: oil-bath type, centralized filling oil(grease)
|
|
||
|
|
Weft breakage
|
Reflecting doule feeler device
|
|
||
|
|
Warp breakage
|
Electric warp stop device
|
|
||
|
|
Others
|
Selvedge, yarn end treatment, end-broken stop motion
|
|
||
|
|
Shutdown display
|
Screen display, multi-functional shutdown display lights
|
|
||
|
Weft cutter
|
|
Mechanical cutter
|
Electric cutter
|
||
|
Electric control system
|
|
High-deficiency, large screen, vga color image display touch human-computer interface
|
|
||
Are you a factory or a trading company?
-We are the original manufacturer since 2002, we have our own factory, covering an area of 10000 square meters.
What is the service life of the machine?
-The life of the machine is at least 10 years, and it needs good care and regular maintenance.
Do you have machines in stock?
-We don’t have any stock. All the machines are produced after we receive the deposit.
How long is the delivery time?
-It’s usually about 30 days.
Do you have a local agent?
-We have agents in some countries. But in some countries where there are no agents, customers can buy directly from us.
How long is the warranty period of the machine?
-Usually the warranty period is one year, and we will give away the wearing parts.
Will you provide service after the machine is out of warranty?
-Yes, we still provide free technical support even after the warranty period.
What is the output of your company?
-We can produce 800 machines every month.
Which countries have your machines been sold to?
-United States, Argentina, Ecuador, India, Turkey, Pakistan, Bangladesh, Indonesia, South Korea, Russia, Uzbekistan, Pakistan, etc
Can I be your agent?
-Of course, we welcome people with strength to cooperate, become our agent, and carry out marketing and after-sales service work
in the local area, so as to achieve win-win cooperation.
What are the advantages of your machine compared to other suppliers?
-In terms of raw materials and components, we have strict procurement regulations and quality standards.
-In terms of production process and management system, we have a complete and strict production management system.
-In terms of quality inspection, each of our machines has undergone at least three quality inspections by different personnel and
machine operation tests before delivery.
Can I get a discount on the price?
-We always offer the lowest price based on excellent quality. If your order is large, we will give you the best discount.
If the parts of the machine are damaged and I don’t have any parts on hand, how will you send them to me?
-If we have a local agent, we will send someone to help you repair and replace the parts immediately. Otherwise, we will send the
parts to you by air.
Do you intend to provide OEM and ODM services?
-Of course, OEM and ODM services are favored with us. We are the original manufacturer. We have a research and development team of
10 people.
What machines do you produce?
-We are textile machinery manufacturer, our main machines are water jet looms, air jet looms, plastic weaving loom, etc.
-We are the original manufacturer since 2002, we have our own factory, covering an area of 10000 square meters.
What is the service life of the machine?
-The life of the machine is at least 10 years, and it needs good care and regular maintenance.
Do you have machines in stock?
-We don’t have any stock. All the machines are produced after we receive the deposit.
How long is the delivery time?
-It’s usually about 30 days.
Do you have a local agent?
-We have agents in some countries. But in some countries where there are no agents, customers can buy directly from us.
How long is the warranty period of the machine?
-Usually the warranty period is one year, and we will give away the wearing parts.
Will you provide service after the machine is out of warranty?
-Yes, we still provide free technical support even after the warranty period.
What is the output of your company?
-We can produce 800 machines every month.
Which countries have your machines been sold to?
-United States, Argentina, Ecuador, India, Turkey, Pakistan, Bangladesh, Indonesia, South Korea, Russia, Uzbekistan, Pakistan, etc
Can I be your agent?
-Of course, we welcome people with strength to cooperate, become our agent, and carry out marketing and after-sales service work
in the local area, so as to achieve win-win cooperation.
What are the advantages of your machine compared to other suppliers?
-In terms of raw materials and components, we have strict procurement regulations and quality standards.
-In terms of production process and management system, we have a complete and strict production management system.
-In terms of quality inspection, each of our machines has undergone at least three quality inspections by different personnel and
machine operation tests before delivery.
Can I get a discount on the price?
-We always offer the lowest price based on excellent quality. If your order is large, we will give you the best discount.
If the parts of the machine are damaged and I don’t have any parts on hand, how will you send them to me?
-If we have a local agent, we will send someone to help you repair and replace the parts immediately. Otherwise, we will send the
parts to you by air.
Do you intend to provide OEM and ODM services?
-Of course, OEM and ODM services are favored with us. We are the original manufacturer. We have a research and development team of
10 people.
What machines do you produce?
-We are textile machinery manufacturer, our main machines are water jet looms, air jet looms, plastic weaving loom, etc.
