Quick Details
-
Production Capacity:
-
100%
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100X1100X1300mm
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Product name:
-
aluminum window corner crimping machine
-
Service:
-
Service Machinery Overaseas
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380V 50 Hz
-
Input Power:
-
1.5kw
-
Profile size:
-
90x120 mm
-
After warranty service:
-
Video thchnical support
-
Local service location:
-
None
-
Function:
-
Aluminum Profile Corner Combining
Quick Details
-
Brand Name:
-
Care Machinery
-
Voltage:
-
380V 50HZ
-
Weight:
-
300 kg
-
Production Capacity:
-
100%
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100X1100X1300mm
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Product name:
-
aluminum window corner crimping machine
-
Service:
-
Service Machinery Overaseas
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380V 50 Hz
-
Input Power:
-
1.5kw
-
Profile size:
-
90x120 mm
-
After warranty service:
-
Video thchnical support
-
Local service location:
-
None
-
Function:
-
Aluminum Profile Corner Combining

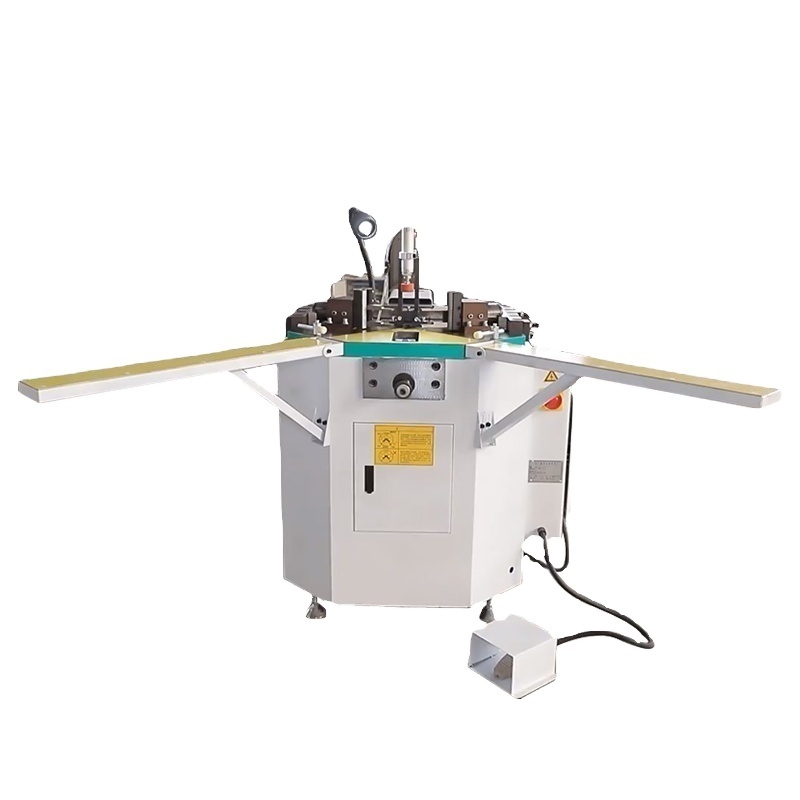

Window machine supply corner combining machine for aluminum doors profile corner crimping machine
Products Description
The corner combining machine is used for 90° fabricating of aluminum window. Adopt new mechanical linkage device, realize complete synchronous corner combining. Up and down adjustable locating device, suitable for various section and sized profile. Left and right punching heads adopt hardness synchronous feeding device, avoid deformation and make sure firm connection.
Product Parameters
|
Power
|
1.5KW
|
|
Voltage
|
380V/50HZ
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Air consumption
|
20L/min
|
|
Profile crimping height
|
Max. 120mm
|
|
Profile crimping width
|
Max. 90mm
|
|
Hydraulic
|
15Mpa
|
|
Capibility of oil box
|
20L
|
|
Crimping accuracy
|
≤0.15mm
|
|
Dimension
|
1100*1100*1300mm
|
|
Weight
|
300kg
|
Details Images
01.
Aluminum window and door comer forming machine is used for aluminum frame and sash corner crimping,especially for the high-quality profile, such as thermal bridging profile.
02.
03.
comer deform and enhance the corner connection efficiently.
04.
