Quick Details
-
Material:
-
PVC
-
Size:
-
85.5*54mm
-
Thickness:
-
0.84mm
-
Surface Finish:
-
Lamination Glossy
-
Color:
-
White
-
Printing:
-
CMYK Offset Printing
-
Chip:
-
jcop21 36
-
Type:
-
contact
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Csm brand
-
Model Number:
-
jcop21 36k
-
Material:
-
PVC
-
Size:
-
85.5*54mm
-
Thickness:
-
0.84mm
-
Surface Finish:
-
Lamination Glossy
-
Color:
-
White
-
Printing:
-
CMYK Offset Printing
-
Chip:
-
jcop21 36
-
Type:
-
contact

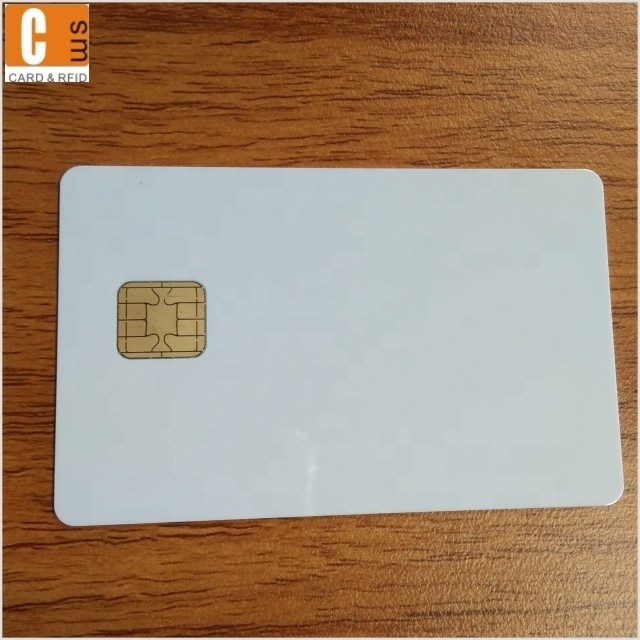

Product Name: High quality JCOP21 36K java chip card white blank card for custom printing 86*54mm j2a040
Parameter
------------------------------------------------------------------------------------------------
|
Material |
PVC (Optionals:PET/ABS/PETG/Transparent PVC,etc) |
|
Dimension |
CR80,85mm(L)×54mm(W) [ or customzied ] |
|
Thickness |
0.84mm [ 0.8mm/0.86mm/0.9mm,or customzied ] |
|
Printing |
White blank,Offset printing,silk screen printing,digital printing,spot color printing/metalic silver & gold printing,UV printing,OVIprinting, Rainbow printing,Watermark printing,etc |
|
Surface finish |
Glossy/Matte/Frosted or customzied |
|
Working Temp. |
-25 ℃ ~+70 ℃ |
|
Chip Type |
Jcop21 36k ,J2a040 |
|
Interface |
Contact |
|
ISO Protocol |
ISO7816 |
|
Available Crafts |
Signature panel,QR code,Barcode,magnetic stripe, ID hole,hologram,DOD uv Printing,Emboss,Laser engraving,watermark ,gold/silver foiled,ink jet printing, stratch off, combine,etc. |
Key feather
JCOP Version: jcop v2.4.1 R3
Communication: ISO7816,T=0,T=1,(communicationspeed,223.2kbit/s)
EEPROM :40KByte
ROM(free for Applets,up to KByte): 76.
APDU Buffer(RAM/Bytes):1462.
--------------------------
JC & GP
--------------------------
Java Card Version :v2.2.2
VGP CIR:2.1.1
Global Platform:2.1.1
SCP Secure Channel Protocol: SCP01 /SCP02
--------------------------
Cryptography
--------------------------
DES/TDES(bit):56,112,168
AES:256bit
RSA:2048bit
SEED:128bit
SHA-1/2
MD5
Random Number Generation
RSA Key Generation
------------------------------
Additional Feature
------------------------------
Logical Channels:1
RMI Remote Method
SSD Supplementary Security Domain support
Extend Length APDU
Custom ROM Masking
All Delivery Types Wafer and Module(as available for SmartMX Familly)
----------------------------------
Certification & Approvals
----------------------------------
EMVCo (HW approval)
VISA
MasterCard PIC+ CAST
Common Criteria EAL5+
