Quick Details
-
Model Number:
-
MD-SW
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
16bar
-
Product type:
-
MD-SW Automatic digital adjusting water pump switch
-
Pressure Range:
-
0-6bar 0-10bar
-
Connecting Thread:
-
G1/4, G1/2, G3/8
-
Max Working Temperature:
-
60 ℃
-
Frequency:
-
50/60HZ
-
Application:
-
Water
-
Max.Current:
-
10 A
-
Mounting:
-
Radial Direction Mounting
-
Rated Voltage:
-
220V-240V 10V-120V
-
Proctection Rating:
-
200,000 times
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240V
-
Place of Origin:
-
China
-
Brand Name:
-
Meokon
-
Model Number:
-
MD-SW
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
16bar
-
Product type:
-
MD-SW Automatic digital adjusting water pump switch
-
Pressure Range:
-
0-6bar 0-10bar
-
Connecting Thread:
-
G1/4, G1/2, G3/8
-
Max Working Temperature:
-
60 ℃
-
Frequency:
-
50/60HZ
-
Application:
-
Water
-
Max.Current:
-
10 A
-
Mounting:
-
Radial Direction Mounting
-
Rated Voltage:
-
220V-240V 10V-120V
-
Proctection Rating:
-
200,000 times
-
Certification:
-
CE

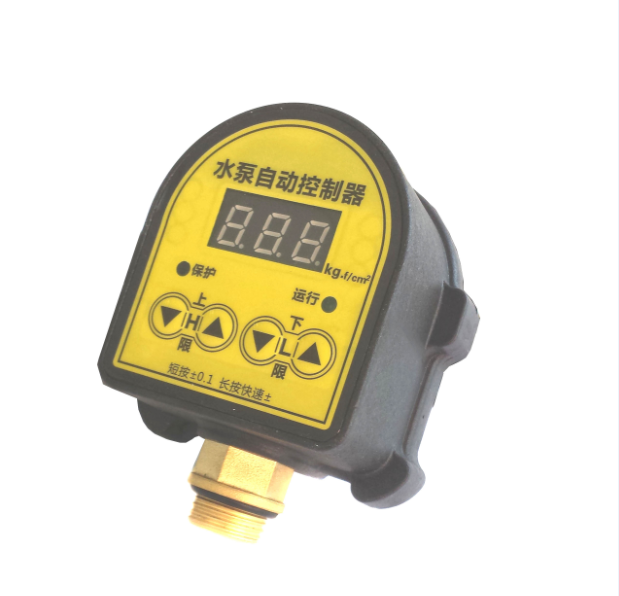

MD-SW automatic digital adjusting water pump pressure switch is specially designed for water pump. Comparing to the thread/mechanical adjustment, we use electronic control, which is easier for operation. It uses microcomputer chip to control various functions intelligently and reliable.
FEATURES:(Adjusting water pump pressure switch)
-
Digital and pressure adjustable, precise and easy to operate.
-
Integrated water shortage protection
-
Unload protection,
-
Rotor blocking protection and anti-frequent start function,
-
Integrated pressure sensor which is stable, long life and no contact
SPECIFICATION(Adjusting water pump pressure switch)
| Range |
0 ~ 6bar 0-10bar |
| Over Pressure | 200% |
| Load Capacity | 220VAC 10A |
| Operating Temperature | -20~ 80℃ |
| Compensation Temperature | -10 ~60 ℃ |
| Sampling Frequency | 3 times/sec |
| Measurement Medium | Water |
| Pressure Connection | G1/2 G1/4 G3/8 |
| Connector Material | Copper |
| Shell |
Engineering Plastic |
| Supply | 220VAC,240VAC |
| Weight | 0.5Kg |
APPLICATION(Adjusting water pump pressure switch)
-
Residential life water supply
-
Underground water
-
Tap water pressure increase
-
Piping hot water pressure increase
-
Hot water heater water supply
