Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SSR CNC
-
Voltage:
-
380V, 50HZ
-
Dimension(L*W*H):
-
3200mm*2010mm*1800mm
-
Power (kW):
-
11
-
Weight (KG):
-
1410
-
Table Structure:
-
Vacuum table+Aluminum T-slot
-
X Y Axis Transmission:
-
High precision rack gear
-
Z Axis Transmission:
-
Germany NEFF ball screw
-
X Y Z Axis Guide:
-
Taiwan imported HIWIN square rail
-
Tool magazine:
-
8 pcs in a line
-
Max. Traveling Speed:
-
75000mm/min
-
Driving System:
-
Japan imported YASKAWA servo motors and drivers
-
Net Weight/Gross Weight:
-
1410KGS/1580KGS
-
Dust Collector:
-
With
-
Auto Tool Sensor:
-
With
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SSR CNC
-
Voltage:
-
380V, 50HZ
-
Dimension(L*W*H):
-
3200mm*2010mm*1800mm
-
Power (kW):
-
11
-
Weight (KG):
-
1410
-
Table Structure:
-
Vacuum table+Aluminum T-slot
-
X Y Axis Transmission:
-
High precision rack gear
-
Z Axis Transmission:
-
Germany NEFF ball screw
-
X Y Z Axis Guide:
-
Taiwan imported HIWIN square rail
-
Tool magazine:
-
8 pcs in a line
-
Max. Traveling Speed:
-
75000mm/min
-
Driving System:
-
Japan imported YASKAWA servo motors and drivers
-
Net Weight/Gross Weight:
-
1410KGS/1580KGS
-
Dust Collector:
-
With
-
Auto Tool Sensor:
-
With
-
Certification:
-
CE

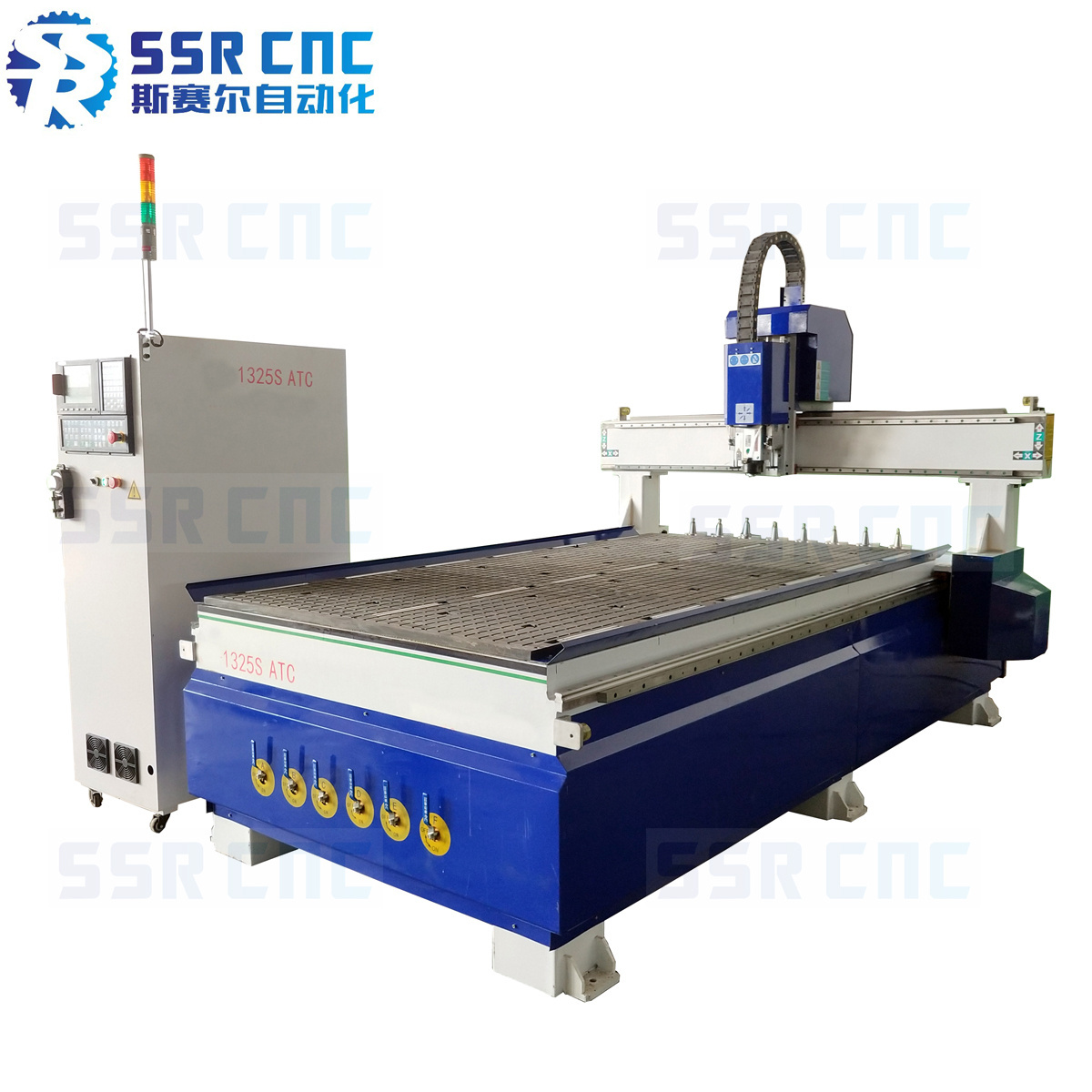

automatic tool change cnc router machine atc machine/cnc machine center 1325 router with ATC
Features:
-With 8pcs linear type automatic tool changer system, meet customer’s different working requirements. 10pcs, 12pcs or more magazines are optional
-With vacuum table and powerful vacuum pump, allows you to hold the work-piece on the surface of the table automatically, increases working efficiency.
-Low noise during spindle operation, fine working environment.
-Equipped with High-quality accessories, allows the machine to work 24 hours a day continuously.
-Easy to learn and operate, we will offer special educational video and other educational materials in English.
-Long warranty period
Technical Parameters:
|
Machine Model |
SSR-M1325S |
SSR-M1530S |
|
|
Working Area( X, Y, Z ) |
1300mm*2500mm*300mm |
1500mm*3000mm*300mm |
|
|
Table Size( X,Y ) |
1380mm*3000mm |
1580mm*3500mm |
|
|
Overall Dimensions |
3 2 00 mm* 201 0mm*1 80 0mm |
3 7 00 mm* 221 0mm*1 80 0mm |
|
|
Machine Structure |
Welded steel |
||
|
Table Structure |
Aluminum T-slot+vacuum table with 7.5kw vacuum pump |
||
|
X, Y, Z Guides |
Taiwan imported HIWIN rail guides HG25 |
||
|
X, Y Transmission |
Preci se helical gear rack |
||
|
Z Transmission |
Ball screw |
||
|
Spindle P ower |
9.0KW air cooling |
||
|
Collet |
ER 32 |
||
|
Spindle S peed |
18000 R/min to 24000 R / min |
||
|
Max.Traveling Speed |
75000mm/min |
||
|
Max.Working Speed |
2 5 00 0mm/min |
||
|
Control System |
Taiwan SYNTEC (Taiwan LNC, WEIHONG NK105 optional ) |
||
|
Tool Change Stores |
8 pecs in a line |
||
|
Positioning Accuracy |
≤0.0 2 mm |
||
|
Processing A ccuracy |
±0.0 2 mm |
||
|
Motor |
Servo Motor + Japanese Shimpo Gearbox |
||
|
Driver |
Servo driver |
||
|
Auto Lubrication System |
With |
||
|
Work Zero Sensor X, Y, Z axis |
With |
||
|
Auto H eight S ensor |
With |
||
|
Wave F ilter |
With |
||
|
Dust Collector |
With |
||
|
Working Voltage |
AC380 V, 50HZ |
||
|
Net Weight/Gross Weight |
141 0 KGS / 1 5 8 0 KGS |
1570 KGS / 1 7 6 0 KGS |
|
|
Package Size |
3 32 0mm*2 0 80mm* 195 0mm |
3 82 0mm*2 2 80mm* 195 0mm |
|
|
Warranty |
24 months |
||
Applicable Materials:
The Machine is suitable for working with materials such as: all kinds of woods , all kinds of plastics, composite, plywood, MDF, polystyrene, wax, PVC and many other materials. And it can also work with materials such as copper, brass, aluminum, etc.
Applica ble Areas :
-Manufacture of furniture (chairs, cabinets, door facades ...)
-Furniture covers and interior decor
-Advertising sphere (volume letters, emblems, logos ...)
- Cliche stamps, molds and much more
Working Samples:
Detailed Pictures:
- Auto tool sensor:
- 8pcs tool changer:
- Taiwan SYNTEC 6MA controller:
- Control Cabinet: We use Japanese imported YASKAWA servo motors and drivers:
- Taiwan HIWIN square rail, high quality, longer using life:
Details determine sucess or failure
1. We use international standard exporting plywood package, which is fumigation-free
2. We offer item FOB, CIF, CFR, DDU, EXW by sea:
- FOB: Customer need to find shipping forwarder by himself, take machine from China sea ports
- CIF: We will find shipping find shipping forwarder for customer, arrange sea delivery for customer from China sea port to customer's country sea port, buy sea insurance for customer
- CFR: Under CFR item, customer need to buy sea insrance by himself, other is sampe as CIF item
- DDU: Under DDU item, we arrange machine delivery from our factory address to customer receiving address
- EXW: Customer need to arrange take machine from our factory and arrange all from China sea port to customer's country sea port
3. We can also offer delivery by air for small package machine
