Quick Details
-
Place of Origin:
-
CHINA
-
Product Name:
-
15 kw 3 phase diesel generator
-
Alternator:
-
Brushless Alternator
-
Engine:
-
water cooled
-
Controller:
-
digital control Panel
-
Color:
-
customer's request
-
Fuel Tank:
-
10H fuel tank
-
Manufacturer:
-
ENG power
-
Noise level:
-
60db
-
Warranty time:
-
1 Year/1000Hours
-
Delivery time:
-
20 days
Quick Details
-
Rated Voltage:
-
220/380v
-
Rated Current:
-
30a
-
Frequency:
-
50HZ
-
Place of Origin:
-
CHINA
-
Product Name:
-
15 kw 3 phase diesel generator
-
Alternator:
-
Brushless Alternator
-
Engine:
-
water cooled
-
Controller:
-
digital control Panel
-
Color:
-
customer's request
-
Fuel Tank:
-
10H fuel tank
-
Manufacturer:
-
ENG power
-
Noise level:
-
60db
-
Warranty time:
-
1 Year/1000Hours
-
Delivery time:
-
20 days
15 kw 3 phase diesel generator
Parameter:
|
Genset Model |
EN Super Smart and Low Noise Diesel Genertor |
|||
|
Rated Power (kw) |
8--30 |
|||
|
Generator |
Frequency (Hz) |
50/60 |
||
|
Rated voltage |
440V/254V , 400 / 230V, 380 / 220, 240 / 120 |
|||
|
Power Factor |
0.8/1 |
|||
|
Noise level |
66db ( 7 meters away) |
|||
|
Engine |
Model |
China Quchai (8kw—25kw) |
China Yangdong (13-32kw) |
|
|
Cooling System |
Closed Water Cooling |
|||
|
Starting method |
Electric Start |
|||
|
Alternator |
Brand |
Brushless Alternator |
||
|
Power factor |
0.8/1 |
|||
|
Phase) |
3-phase, 4-wire |
|||
|
Connection : Y or other type connection |
Voltage regulation : AVR |
|||
|
Rated speed : 1,500rpm / 1,800rpm |
Protection clas s: IP23 |
|||
|
Excitation : harmonic excitation or phase compound or brushless |
||||
|
1.0% voltage regulation (max.) in static conditions |
||||
|
Dimension |
Overall dimensions (L×W×H)(mm) |
|
|
|
|
Control panel:
|
The panel is provided with:
|
|||
|
Standard Accessories :
|
1) Vibration absorber between engine ,alternator and base frame 2) 12V battery with battery cables and rack , battery charger 3) Standard radiator mounted on skid 4) Circuit breaker 5) Industry silencer with flanged flexible connection and piping 6) 12 hours fuel tank 7) Tool kit bag 8) English operation / maintenance manuals |
|||
Rated output
: 8kw -32kW
1) Rated voltage: 440V/254V , 400 / 230V, 380 / 220, 240 / 120
2) Rated frequency: 50 / 60Hz
3) Power factor: 0.8/1.0
Noise level: 66dB(7 meter away)
Engine
1) Rated power: Chinese engine
2) Cooling method: closed water cooling
3) Starting method: electric start

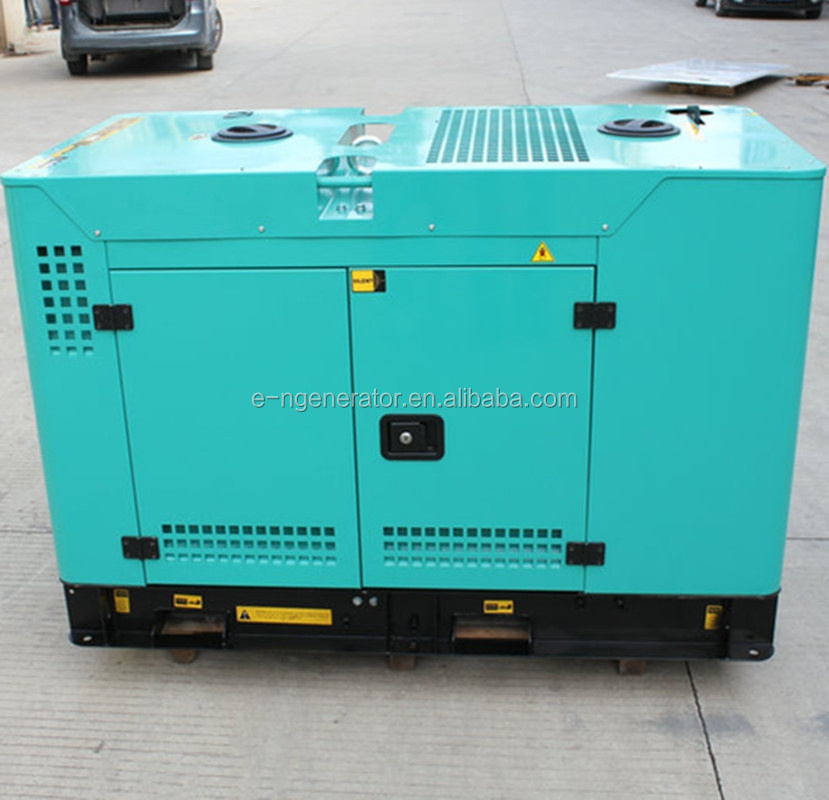

E.N power Silent type Genset picture as follows :
Sound proof canopy:
1 ) With steel sheet
2 ) Stainless steel locks
3 ) Control panel viewing window for monitoring the status of the generator set
4 ) Good ventilation system and anti-heat radiation struction
5 ) Effective anti-vibration devices to ensure the geneartor set run steadily
6 ) Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7 ) Emergency stop button mounted outside
8 ) Side lockable door easy for maintenance and installation
9 ) Lube oil and cooling water drains piped to exterior of the canopy
*All EN Generator we manufactured base on Europe CE,ISO9001,ISO14001 standard.
