- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XZY
-
Model Number:
-
XHZ-55*47
-
Depth:
-
900
-
Weight Capacity:
-
1000KG/level
-
Width:
-
1500
-
Height:
-
2000
-
Beam levels:
-
4
-
Upright frame:
-
55*47*1.8
-
Beams:
-
80*50*1.5
-
Beam Legnth:
-
L1800mm
-
Usage:
-
Storage carton goods
-
Loading capacity:
-
600kg/layer
-
Steel Panel:
-
0.8mm
-
Delivery time:
-
15 Days
-
HS CODE:
-
7308900000
-
Certification:
-
CE TUV
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XZY
-
Model Number:
-
XHZ-55*47
-
Depth:
-
900
-
Weight Capacity:
-
1000KG/level
-
Width:
-
1500
-
Height:
-
2000
-
Beam levels:
-
4
-
Upright frame:
-
55*47*1.8
-
Beams:
-
80*50*1.5
-
Beam Legnth:
-
L1800mm
-
Usage:
-
Storage carton goods
-
Loading capacity:
-
600kg/layer
-
Steel Panel:
-
0.8mm
-
Delivery time:
-
15 Days
-
HS CODE:
-
7308900000
-
Certification:
-
CE TUV
Size: H3000*W2700*D900 Load: 2000kg/level 2levels
Size: H4000*W270*D900 Load: 2000kg/level 3levels
Size: H4500*W270*D900 Load: 2000kg/level 3levels
Size: H6000*W2700*D900 Load: 2000kg/level 4levels
Beam : 110*50*1.5
Post: 90*70*2.0
|

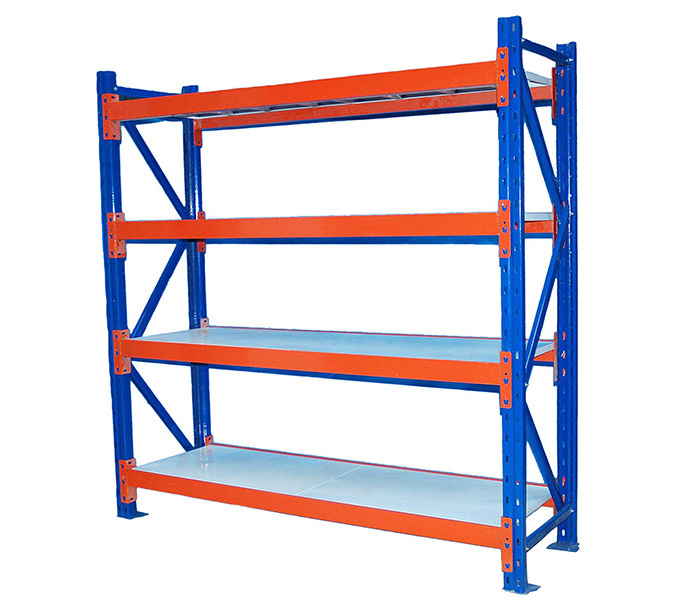

Product Name
|
Heavy duty Selective Pallet Racking warehouse Rack
|
|
Material
|
Steel Q235B
|
|
Color
|
Blue/Orange
|
|
Certificate
|
CE/ISO9001/TUV/ROHS
|
|
Load Capacity
|
1000kg/level, can be 2/3/4 levels
|
|
Fob Port:
|
NanJing or Shanghai
|
|
Treatment:
|
Powder Coated
|
|
Used
|
Warehouse storage
|
|
Upright section
|
Upright Frame Size
|
Beam Layers
|
Loading Capacity
|
|
80*60*2.0
|
H3000*D900
|
2
|
6000KGS
|
|
90*60*2.0
|
H4000*D900
|
3
|
8000KGS
|
|
90*70*2.0
|
H5500*D900
|
3
|
9500KGS
|
|
100*67*2.0
|
H7500*D900
|
4
|
11000KGS
|
|
120*75*2.0
|
H9000*D900
|
5
|
15000KGS
|
Factory
Warehouse
Our Warehouse
Workshop
Our workshop
Certificate
Our Certificate
Packing Details : standard export packaging or according to the customer's requirement
Delivery Details : in 20 days after order confirmed and payment been received.
1. Special logistics packaging
2. beam packing
3. post packing
4. Pallet packing
5. Corner Protector
6.Loading
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-20 days,It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
