Quick Details
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Phuong Nam Phat
-
Model Number:
-
Dry container
-
Name:
-
Container side panel
-
Thickness:
-
2mm
-
Material:
-
Corten-A steel
-
Corrugation:
-
5 Corr. 4 corr
-
Type:
-
galvanized roof panels
-
Color:
-
Grey
-
Size:
-
2x1116x2400/2700mm
-
Usage:
-
Container wall
-
Port:
-
HCMC
Quick Details
-
Project Solution Capability:
-
total solution for projects, Cross Categories Consolidation
-
Application:
-
container, Container panel roof, container plates
-
Design Style:
-
Modern
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Phuong Nam Phat
-
Model Number:
-
Dry container
-
Name:
-
Container side panel
-
Thickness:
-
2mm
-
Material:
-
Corten-A steel
-
Corrugation:
-
5 Corr. 4 corr
-
Type:
-
galvanized roof panels
-
Color:
-
Grey
-
Size:
-
2x1116x2400/2700mm
-
Usage:
-
Container wall
-
Port:
-
HCMC
Drawing (CAD)
Products Description

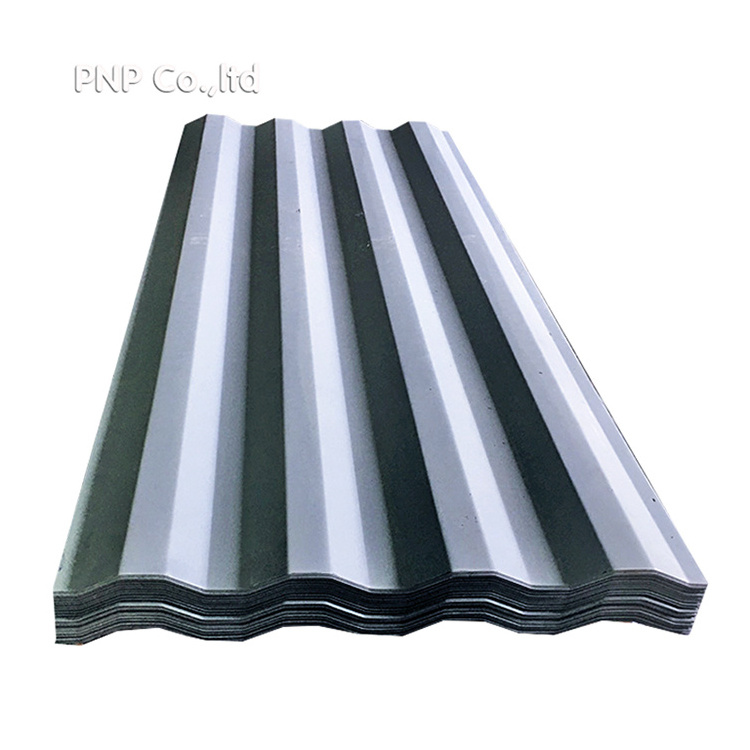

Phuong Nam Phat Co., LTD specializes in producing container spare parts, container flooring plywood, loading and unloading equipment. Regarding the container Side panel size, there is have corrugated steel panels use for sidewall, We have 2 size 1116 x 2400mm or 1116 x 2700mm with 2 type thickness 1.6mm and 2.0mm.
Specification of product
|
Produce Name
|
Container side panel
|
|
Brand name
|
Phuong Nam Phat Co., LTD
|
|
Country of origin
|
Viet Nam
|
|
Material
|
SPA-H (Corten-A steel) or Mild Steel
|
|
Size
|
2/ 1.6 x 1116 x 2400/ 2700mm
|
|
Thickness
|
1.6/2mm
|
|
Technique
|
Hot Rolled
|
|
Dimension
|
ISO Standard/ 20ft/40ft
|
|
Type
|
20ft 40ft container building
|
|
Weight
|
33.2 -49.8kg
|
|
Function
|
Hard
|
|
Condition
|
New 100%
|
|
Surface Treatment
|
Galvanized
|
|
Structure
|
Steel Plates
|
|
Application
|
Widely used in container manufacturing, container housing, and so on.
|
|
Special Use
|
High-strength Steel Plate
|
|
Price
|
very cheap with the high quality container side panel
|
|
MOQ
|
100 pcs/ Contact us to detail amount you need.
|
|
Other related products
|
Container panel (tole): roof panel, side panel; container posts and rail: bottom side rail, cross member, front corner post, rear corner, spreader, top side rail, door sill container...; Container twist lock, corner casting: roof bow, screws, twist lock, tarpaulins and container flooring plywood.
|
Product packaging
|
Product Packaging
|
|
|
|
Packaging
|
a. Packing according to standard international export. The permissible gross weight of most 20' and 40' standard containers is 30,480kg.
b. 50 pcs are packed into one pallet, 10 pallets into one 20ft container
c. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and then package into the pallet. All the steps made carefully and test by engineers.
|
|
|
Mix order in to container:
|
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping. One-Stop Purchasing is our main Service.
|
|
|
Shipping
|
a, Shipping methods: Sealine and ship to any countries in the world.
b, Locking and Sealing: Security seal used in conjunction with locking mechanism in order to seal the containers for security purposes. These seals are numbered and often color coded.
c, Destinations Port: Worldwide and can be delivered to anywhere.
|
|
|
MOQ
|
10 pcs
|
|
|
Delivery Time
|
14 days
|
|
|
Port
|
Cat Lai - HCMC
|
|
