Quick Details
-
Model Number:
-
VTS300
-
Output:
-
Analog Sensor
-
Theory:
-
Resistance Sensor
-
Usage:
-
Temperature Sensor
-
Type:
-
RTD
-
Sensor:
-
PT100/PT1000
-
Accuracy:
-
Class A or Class B
-
Probe Material:
-
Stainless Steel, Copper, Copper Plated Nickel etc
-
Others:
-
Customized available
-
Certification:
-
CE,ROHS
Quick Details
-
Warranty:
-
1 Year, 1 Year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Votesen
-
Model Number:
-
VTS300
-
Output:
-
Analog Sensor
-
Theory:
-
Resistance Sensor
-
Usage:
-
Temperature Sensor
-
Type:
-
RTD
-
Sensor:
-
PT100/PT1000
-
Accuracy:
-
Class A or Class B
-
Probe Material:
-
Stainless Steel, Copper, Copper Plated Nickel etc
-
Others:
-
Customized available
-
Certification:
-
CE,ROHS
Product Description

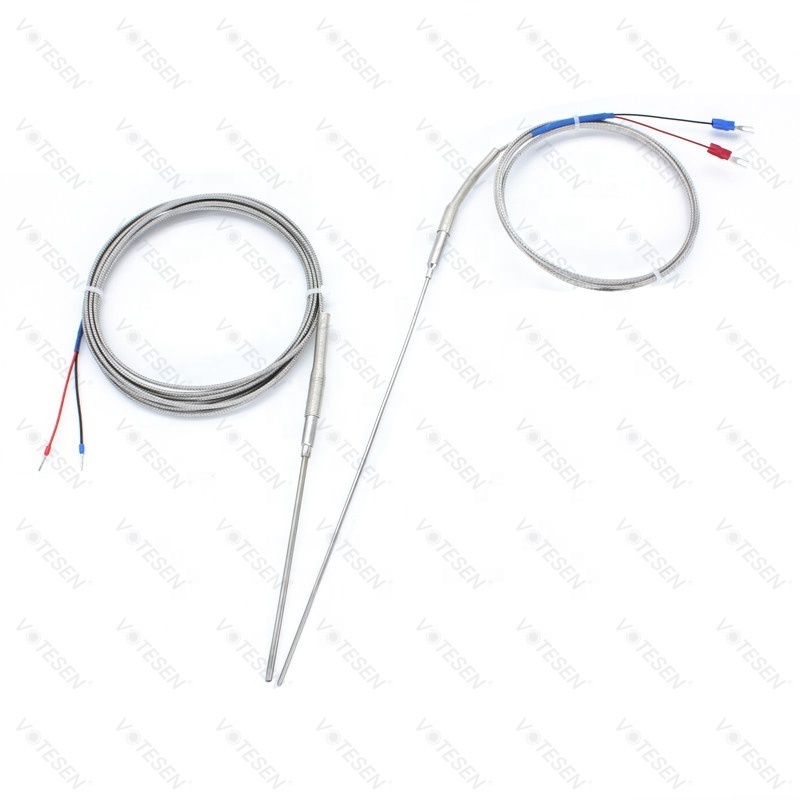

Thermocouple
Thermocouple consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes.
K Type Thermocouples are known as general purpose thermocouple due to its low cost and temperature range.
Product Feature
Difference in Thermocouple Types
Each calibration has a different temperature range and environment, although the maximum temperature varies with the diameter of the wire used in the thermocouple. Although thermocouple calibration dictates the temperature range, the maximum range is also limited by the diameter of the thermocouple wire. That is, a very thin thermocouple may not reach the full temperature range.
|
Calibration
|
Temperature Range
|
Standard Limits Of Error
|
Special Limits Of Error
|
|
J
|
0° to 750°C (32° to 1382°F)
|
Greater of 2.2°C or 0.75%
|
Greater of 1.1°C or 0.4%
|
|
K
|
-200° to 1250°C (-328° to 2282°F)
|
Greater of 2.2°C or 0.75%
|
Greater of 1.1°C or 0.4%
|
|
E
|
-200° to 900°C (-328° to 1652°F)
|
Greater of 1.7°C or 0.5%
|
Greater of 1.0°C or 0.4%
|
|
T
|
-250° to 350°C (-418° to 662°F)
|
Greater of 1.0°C or 0.75%
|
Greater of 0.5°C or 0.4%
|
Product Customized
|
Sensor
|
Thermocouple Type K, J, T, N, E
|
|
Housing
|
Stainless Steel
|
|
Cable Material
|
PFA, Stainless Steel Braided, Fiberglass, PTFE, Silicone, TPE, Mica etc
|
|
Connector
|
Fork terminal, thermocouple mini plug
|
|
Probe Length
|
50cm, 70cm, 85cm, 1M etc
|
|
Cable Length
|
0.5M, 1M, 2M or other length customizable
|
Remarks: We can customized the temperature sensor based on your requirements.
Customer Feedback
How to order?
Send us the below details and we will be able to assist you based on your requirements.
2. Thermocouple Type:
3. Application
4. Probe type and dimension
5. Cable material
6. Cable length
7. Wire end/connector
3. Application
4. Probe type and dimension
5. Cable material
6. Cable length
7. Wire end/connector
