HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher
HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher

HSM Granite Soil Crusher Machines Double Roller Crushing Coal Crusher

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
HSM
Dimension(L*W*H):
4210*1630*1260mm
Weight:
2950 KG
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
soil grinding machines
Company type:
Manufacture
Cost:
Low cost
Motor:
Made in china or according to your need
Color:
As requested
Material-out size(mm):
0-2mm, can be adjusted
Aftersale-service:
Lifetime warranty
Installation:
Under engineer's guide

Quick Details

Application:
cement /chemcial industry /electric industry, Stone, ore, rock, coal, etc
Capacity(t/h):
10-40t/h
Place of Origin:
Henan, China
Brand Name:
HSM
Dimension(L*W*H):
4210*1630*1260mm
Weight:
2950 KG
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
soil grinding machines
Company type:
Manufacture
Cost:
Low cost
Motor:
Made in china or according to your need
Color:
As requested
Material-out size(mm):
0-2mm, can be adjusted
Aftersale-service:
Lifetime warranty
Installation:
Under engineer's guide
Products Description
It is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite
direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs. Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the machine frame and held against it by springs.
Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it.
Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.
Product introduction
Spring roll crusher has achieved a breakthrough in the equipment manufacture of aggregate production . Fine crushing sand making machine ,also named as double roller crusher or roller sand making machine, runs by driving two motors and two pairs of rollers to grind the material fed. Double roller crusher can operate crushing material
less than 80mm as well as the finished product size 50 mesh - 20mm.

The small roller crusher is used to produce and process artificial sand. It adopts the rolling crushing principle and can perform coarse, medium and fine crushing on materials with medium and high hardness, such as common coal, limestone, slag, coke, etc. Simple structure, environmental protection and energy saving, high efficiency, cobblestones can be used as important sand and gravel aggregates for housing construction, roads, railways and other engineering projects after processing and crushing.
It has a large crushing ratio and high crushing efficiency. High, easy maintenance and so on.
Application
Applicable materials:River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on
Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Product Paramenters
model
Roll diameter (mm)
Roll width (mm)
Feeding size (mm)
Capacity (t/h)
Power (kw)
Dimension LxWxH (mm)
2PGT400x250
(p400
250
<25
2-10
2x5.5
2100x910x780
2PGT400x400
(p400
400
<25
5-12
2x7.5
2250x1100x780
2PGT610x400
(p610
400
<30
5-20
2x15
3320x1300x1050
2PGT750x500
(p750
500
<30
10-40
2x18.5
3670x1450x1210
2PGT800x600
(p800
600
<40
12-50
2x22
3750x1610x1250

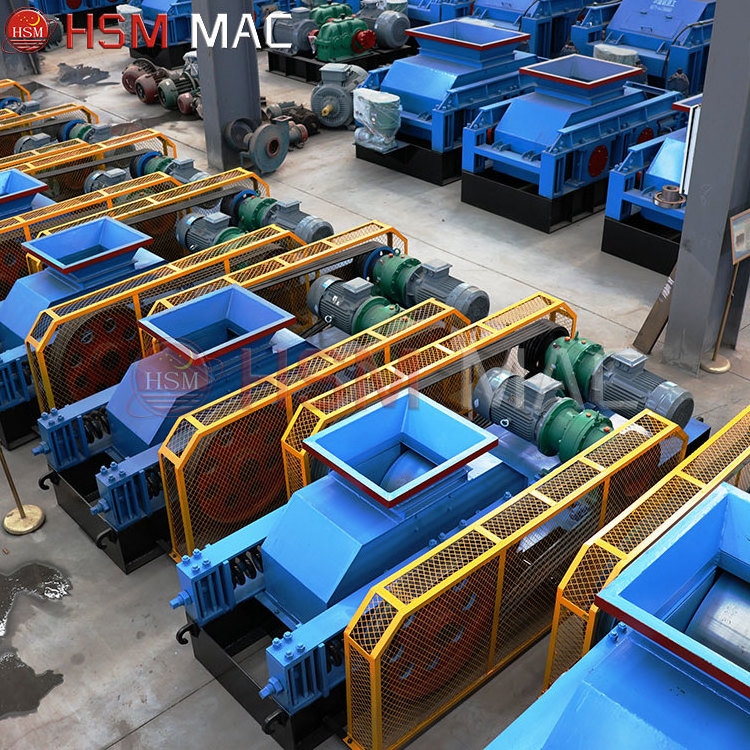

Details Images
Reasons for choosing us
1. Compared with hammer sand making machine, double roller sand making machine does not need to replace wearing parts.
2.The finished product features pretty shape, well gradation, low over-crushing rate and high output.
3. Fine crushing sand making machine is superior to hammer crusher and impact crusher, and the average service life of its roller sleeve is more than 2 years.
4．Roller skin contains high content of chromium, manganese and other rare metal materials.
Adjustable discharge size.
Advantages
1.easy to operation
2.1-5mm adjustable discharge size
3.20 cm thick roller skin,no wear parts in 3year
4.low over-crushing rate,high capacity
5.no screen bottom,no blocking problem
6.Suitable for upgrading old sand factories
