- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
Other
-
Brand Name:
-
SUFU
-
Model Number:
-
SFM120w
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1025*675*35
-
Max. Power:
-
120W
-
Certificate:
-
TUV/CE/ISO
-
Frame Material:
-
Anodized Aluminum Alloy
-
Solar cells:
-
Monocrystalline
-
Front Cover(Material/Thickness):
-
Tempered & Low Iron Glass/3.2mm
-
Encapsulate:
-
Ethylene Vinyl Acetate
-
rated voltage:
-
18.4
-
rated current:
-
5.43
-
Product name:
-
100 w 12 Volts Monocrystalline Solar Panel solar plate 100 watt price
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
mono
-
Panel Efficiency:
-
80%
-
Warranty:
-
Other
-
Brand Name:
-
SUFU
-
Model Number:
-
SFM120w
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1025*675*35
-
Max. Power:
-
120W
-
Certificate:
-
TUV/CE/ISO
-
Frame Material:
-
Anodized Aluminum Alloy
-
Solar cells:
-
Monocrystalline
-
Front Cover(Material/Thickness):
-
Tempered & Low Iron Glass/3.2mm
-
Encapsulate:
-
Ethylene Vinyl Acetate
-
rated voltage:
-
18.4
-
rated current:
-
5.43
-
Product name:
-
100 w 12 Volts Monocrystalline Solar Panel solar plate 100 watt price

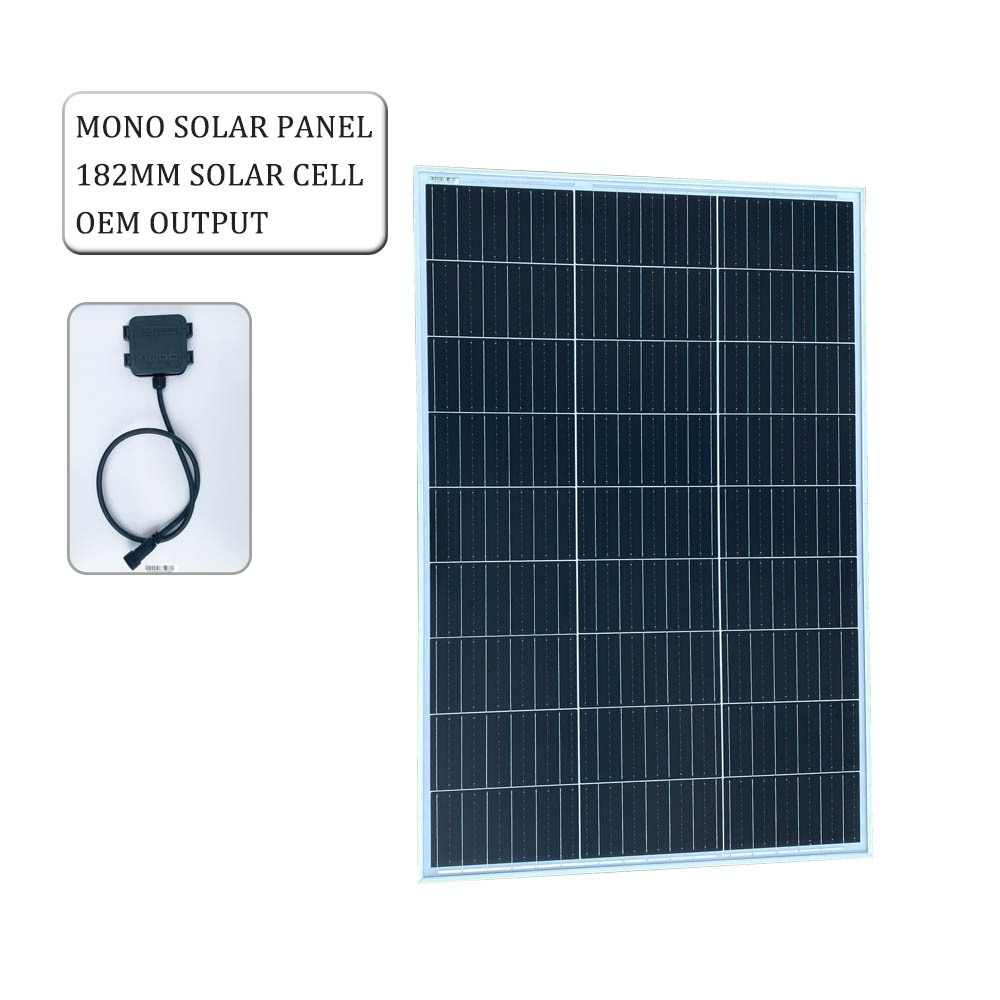

100 w 12 Volts Monocrystalline Solar Panel solar plate 100 watt price in china
High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
|
ELECTRICAL CHARACTERISTICS(STC*)
|
|
|
|
Model No.
|
SF120M10
|
|
|
Power Tolerance(%)
|
0～+3%
|
|
|
NOCT
|
45±2℃
|
|
|
Pmax Temperature Coefficient
|
-0.46%/℃
|
|
|
Voc Temperature Coefficient
|
-0.346%/℃
|
|
|
Isc Temperature Coefficient
|
0.065%/℃
|
|
|
Operating Temperature
|
-40~+85℃
|
|
|
MECHANICAL CHARACTERISTICS
|
|
|
|
Solar Cells
|
32(4×8)Mono-crystalline silicon Solar Cells 182×91mm
|
|
|
Front Glass
|
3.2mm(0.13in) high-transmission tempered glass
|
|
|
Encapsulate
|
EVA(Ethylene-Vinyl Acetate)
|
|
|
Frame
|
Double-layer anodized aluminium alloy
|
|
|
Junction Box
|
IP67 rated,with serviceable bypass diodes
|
|
|
Cables
|
UV resistant solar cable (Optional)
|
|
|
Connectors
|
MC4 compatible connectors (Optional)
|
|
|
Dimensions(L×W×H)
|
780×766×25mm
|
|
|
Weight
|
8.8Kg
|
|
|
Max.Load
|
Wind Load:2400Pa/Snow Load:5400Pa
|
|
100 w 12 Volts Monocrystalline Solar Panel solar plate 100 watt price in china
100 w 12 Volts Monocrystalline Solar Panel solar plate 100 watt price in china
`Install,vertify the details of environmental conditions,PV modules selection guide.
`Comprehensive technical training and support.
`Installation and acceptance of technical guidance service.
`Trouble diagnosis,trouble clearing technical service.
`Install PV modules,problem sloving,opration,maintenance and other training services.
`Provide a variety of specific spare parts as requested.
