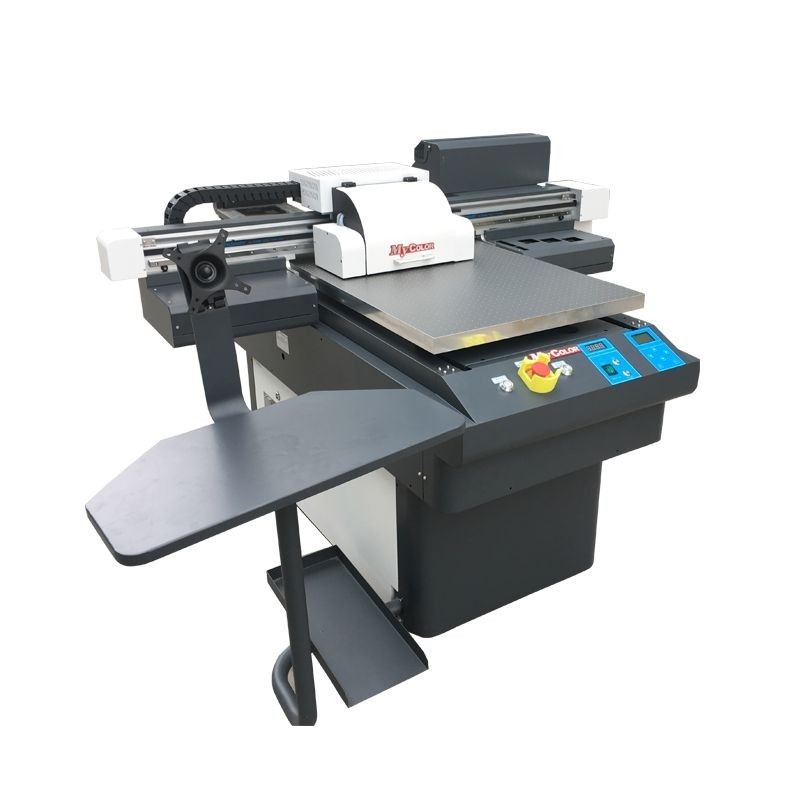

MYCOLOR Uv 6090 Digital Flatbed Uv Printer A1 For Personalized Gift Space-saving1440*720 Dpi For Sales is widely used for printing phone case, golf ball, pens, USB flash disk, Key chains, Pendants, Lighters, Paper box, coffee packages,photos, wallet, mugs,cups,bottles, etc. It is a universal printer for all kinds of personized demands, no matter what the material is.even on metal, glass, acrylic, ceramic, wood, plastic, ABS, PVC, etc are all ok. Because the UV ink is cured on the material surface by the LED UV lamp immediately!
|
Mobile Phone Case Making Machine/Cell Phone Case Printing Machine/3D Uv Printer
|
|
|
|
|||
|
Printer heads
|
Item NO.
|
TX800/DX10
|
|
|||
|
|
Number
|
2 print heads
|
|
|||
|
|
Top printed resolution
|
720*1440DPI
|
|
|||
|
Medium
|
Medium thickness
|
cm
|
15
|
|||
|
|
Medium compatibility
|
Any print media
|
|
|||
|
|
Medium variety
|
Glass/metal/Acrylic/ceramic/leather/wood/PVC/ABS/plastic/etc
|
|
|||
|
Power
|
Power consume
|
W
|
1200
|
|||
|
|
Power Supply
|
AC
|
110/220V,50/60HZ
|
|||
|
|
Power connector
|
Three-socket
|
|
|||
|
Operation environment
|
Temperature
|
Degrees
|
20-28
|
|||
|
|
Humidity
|
RH
|
40-60
|
|||
|
Ink
|
Ink color
|
7 colors
|
CMYK/LC/LM+W
|
|||
|
|
Ink type
|
UV Ink
|
|
|||
|
|
Ink supply system
|
Continuous ink supply system
|
|
|||
|
|
Ink capacity
|
1000mL of each bottle
|
|
|||
|
|
Ink consume
|
10-30mL per color for 1 sqm
|
|
|||
|
Print area
|
Max printing area
|
cm
|
90*60
|
|||
|
Image format
|
BMP/TIFF/JPG/EPS/PDF/CAD/PSD
|
|
|
|||
|
Drying system
|
LED UV lamp cured
|
|
|
|||
|
Connect
|
Network
|
|
|
|||
|
Language
|
Chinese/English
|
|
|
|||
|
Printing software/RIP
|
Photoprint
|
|
|
|||
|
Warranty
|
one year except print heads
|
|
|
|||
1)High precious
2) White ink and color ink is jetted at the same time
3) Two one-piece LED UV lamp.
4) Auto thickness adjusted
5) Heavy duty
6) Auto alarm on ink
7)Motor in white ink tank,no block heads
8)6 color printing, natural printed result.
Name: TX800/DX10 print heads
Original: Japan
1)Two TX800 print heads, one for color ink and one for white ink.
2)Color ink and white ink is printed at the same time.
3)180*6=1080 nozzles make top 720*1440 DPI.
4)CMYK/LC/LM 6 colors make the print result more natural
5)The third print head for varnish is available.
6)6-9 months lifspan if the maintainance is well.
Name:
Ink tank
Original:
China
1)1000mL per tank make sure long time ink supply
2)CMYK/LC/LM+W ink
3)Black ink system protect uv ink
4)Motor on white ink tank, make the white ink more smooth and no block heads
5)Auto-alarm device will remind you to add more ink if it is almost run out.
Name:
Boards
Original:
China
1)Boards is from Guanzhou which is reliable
2) Multi-power supply system is more stable
Name:
Guide rail
Brand:
Hiwin
Original:
Taiwan
1)The guide rail is Hiwin from Taiwan which is high precious.
2)Belt is from Germany,good quality.
3)High precious raster, 180 per inch.
Name: Chain
Original: Germany
1)Import chain protect data line,uv line and cooler tube.
2)fold 10000000 times
Name: Printer body frame
Original: China
1) Full steel body frame, Weight:270KG
2)One go milling to make high precious.
Name: Working table
Original: China
1)60*90cm format.
2)Aluminum material is very strong and light.
3)Vacuum holds will suck media when printing.
Name: Intelligent Control Panel
Original: China
1)Fun button, Emergency button,Host button on the left.
2)Manual & Auto thickness adjust panel
3)Printer control panel
Name: Infrared device
Original:Japan
1)Measure the thickness of media
2)Adjust the height automatically
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
1730*1720*1400mm(L*W*H)
|
|
|
Weight
|
370KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size:1730*1720*1400mm,L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
