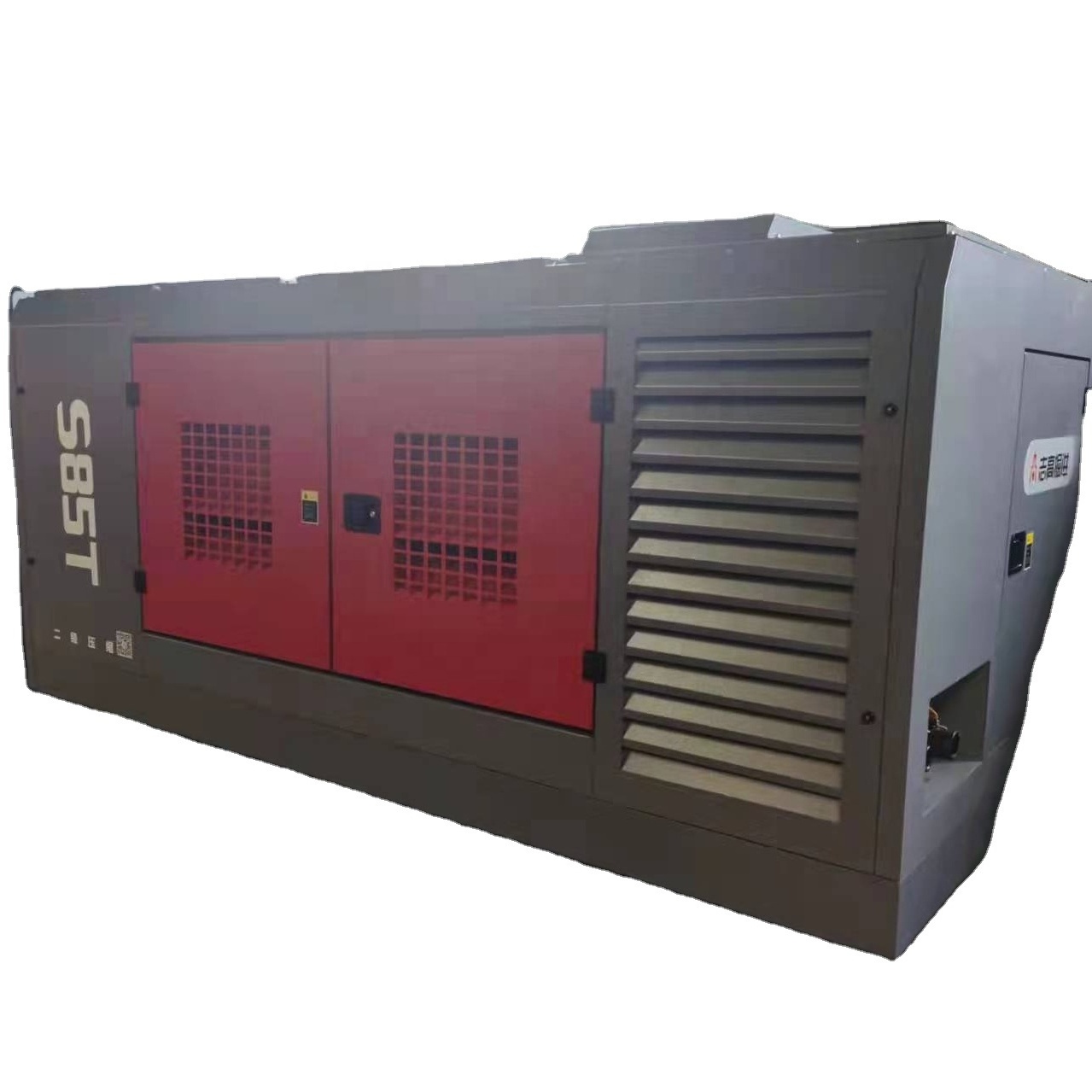

Zhigao 228KW 22 bar China mobile diesel screw portable air compressor for water well drilling rig

Zhigao 228KW 22 bar China mobile diesel screw portable air compressor for water well drilling rig

FOB Reference Price: Get Latest Price

≥1 Sets

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 3560*1830*2050 mm

Weight:: 3560kg

Working Pressure:: 22 BAR

Air capacity:: 24 m3/min

Warranty of core components:: 1 years

Product name:: water well drilling diesel screw air compressor 18 bar

Application:: water well drilling

Usage:: Provide Comressed Air

Rated power:: 228 kw

Diesel engine model:: Yuchai

Emission Standards:: Tier III

Working pressure:: 22 bar

Air Flow:: 850 cfm

Cylinder:: 6 pcs

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Zega

Model Number:: S85T

Voltage:: 380V

Dimension(L*W*H):: 3560*1830*2050 mm

Weight:: 3560kg

Working Pressure:: 22 BAR

Air capacity:: 24 m3/min

Warranty of core components:: 1 years

Product name:: water well drilling diesel screw air compressor 18 bar

Application:: water well drilling

Usage:: Provide Comressed Air

Rated power:: 228 kw

Diesel engine model:: Yuchai

Emission Standards:: Tier III

Working pressure:: 22 bar

Air Flow:: 850 cfm

Cylinder:: 6 pcs

Product Overview

Zhigao 228KW 22 bar China mobile diesel screw portable air compressor for water well drilling rig

ZEGA diesle engine fixed air compressors also can be customized to 4 wheels,stationary type.

This series of products are designed for φ115-224 mm borehole drilling rigs and related compressed air stations required by water well, geothermal and other projects;

Under the premise of adhering to the excellent characteristics of mobile air compressors, the series products have been upgraded and optimized for the continuous use of the products and the characteristics of the transportation size requirements, the products are more durable, and the fuel consumption is lower.

The whole system product adopts TIER III engines.

FEATURES AT A GLANCE

S85D hot sale model

Yuchai 228kw big diesel engine TIER III

2 compression stage

mainly used for water well drilling works

long service life

better after sale service

PLC controller

Famous brand parts

Compact structure

PRODUCT SPECIFICATIONS

Model	Air Flow (m3/min)	Rated Pressure (bar)	Diesel Engine	Air End	Dimension(LWH) mm	Weight (kg)
S60+	18	18	162 kw Yuchai	1 compression stage	322016702000	3000
S85T	24	22	228 kw Yuchai	2compression stage	356018302050	3560
S95CD+	29	25	295kw Yuchai	2 compression stage	395020002300	4700
S98D+	30	24	162 kw Yuchai	2 compression stage	396020002000	4600
S100D+	31	25	309 kw Yuchai	2 compression stage	396020002000	4600
S125D	36	30	410 kw Cummins	2 compression stage	422020002300	5600
