- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2300*1300*4300mm
-
Warranty:
-
1 year
-
Power:
-
7.5kw
-
Weight:
-
1.15t
-
Certification:
-
CE ISO
-
name:
-
pallet hydraulic press machine
-
type:
-
cold press type
-
Heating temperature:
-
150 degree
-
Pallet density:
-
850kg/cubic meter
-
Capacity:
-
120-144pce per day(16 hours)
-
Time for enough pressure:
-
35 seconds
-
Time for one piece:
-
450 seconds
-
Lifting oil cylinder:
-
Diameter 100*2
-
Feeding way:
-
Manual feeding
-
delivery time:
-
3-7 working days
Quick Details
-
Brand Name:
-
SL
-
Model Number:
-
SL-800
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2300*1300*4300mm
-
Warranty:
-
1 year
-
Power:
-
7.5kw
-
Weight:
-
1.15t
-
Certification:
-
CE ISO
-
name:
-
pallet hydraulic press machine
-
type:
-
cold press type
-
Heating temperature:
-
150 degree
-
Pallet density:
-
850kg/cubic meter
-
Capacity:
-
120-144pce per day(16 hours)
-
Time for enough pressure:
-
35 seconds
-
Time for one piece:
-
450 seconds
-
Lifting oil cylinder:
-
Diameter 100*2
-
Feeding way:
-
Manual feeding
-
delivery time:
-
3-7 working days
hot sell and heigh quality press machinehydraulic
( the best way of recycling the waste wood )

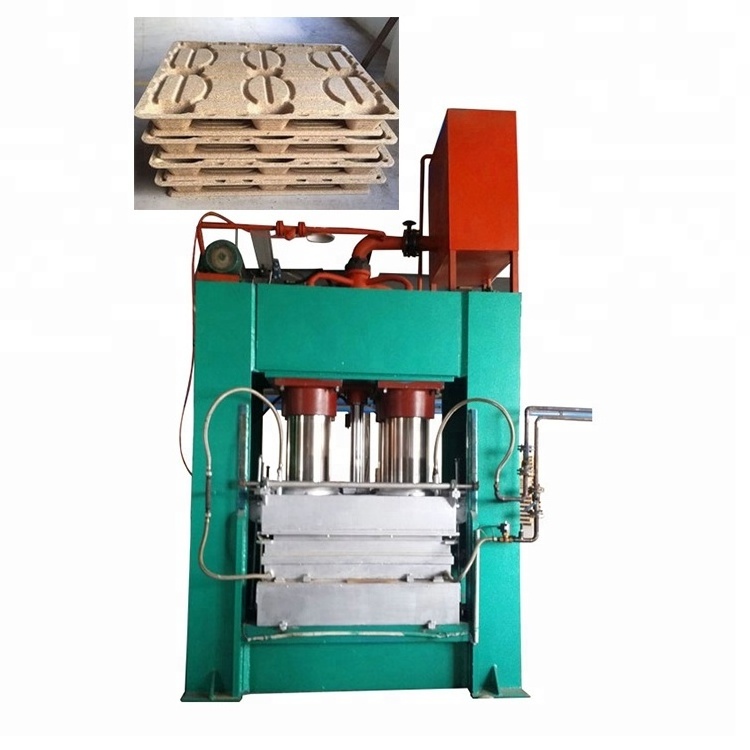

Wood pallet machine Description:
The mould press pallet machine is one of our main products, which meets with environmental
protecting requirements. With the advantages of light, good integrity, no nails and thorns, on-toxic and tasteless, non-rot, easy to clean, on combustion, no spark, waterproof, anti-explosion and anti-skid, guarantine-free, high recycling value and so on, it has been widely used in the storage and transportation
of many industries such as food tobacco, pharamaceutical, chemical, machinery, electronic a
ppliances, texcile, auto parts, beer and others, which is highly improving the work efficiency.
Wood pallet machine Parameter:
Model |
SLSP- 800 |
Pressure |
800Ton |
Hydraulic oil cylinder diameter |
320 |
Hydraulic oil cylinder quantity |
4 |
Feeding way |
Manual feeding |
Lifting oil cylinder |
Diameter 100*2 |
Heating temperature |
150 degree |
Main motor |
7.5kw |
Pallet density |
850kg/cubic meter |
Capacity |
120-144pce per day(16 hours) |
Time for enough pressure |
35 seconds |
Time for one piece |
450 seconds |
Pallet size |
Pallet size less than 1300*1250mm(can make 2-3 letter on mould) |
Weight |
11500kg |
dimension |
2300*1300*4300mm |
wood pallets processing steps
1. crush wood wastes into woo sawdust shavings wood wools;
2. dry the sawdust, wood wools and shavings;
3. mix the glue with the wood sawdust and wools;
4. press under the high temperature and high pressure for few minutes.
Note: include one set mould (any moulds size you like). We make mould according your design.
The machine can change mould to make different size of pallets.
The moulds can be designed according to the customer’s requirements
One set mould include: upper mould and lower mould, total about 3 ton.
if you like our machine , please contact me freely
