Quick Details
-
Brand Name:
-
Kmpa
-
Model Number:
-
AVS3P
-
Product Name:
-
Single Phase home appliance electric power stabilizer
-
Nominal Voltage:
-
230V
-
Current Rating:
-
16Amps
-
Frequency:
-
50/60Hz
-
Certification:
-
CE
-
Under/over-voltage disconnect:
-
185V/260V
-
Under/Over-voltage reconnect:
-
190V/258V
-
Spike Protection:
-
160J
-
Wait Time:
-
10secs to 10mims
-
MOQ:
-
10pcs
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kmpa
-
Model Number:
-
AVS3P
-
Product Name:
-
Single Phase home appliance electric power stabilizer
-
Nominal Voltage:
-
230V
-
Current Rating:
-
16Amps
-
Frequency:
-
50/60Hz
-
Certification:
-
CE
-
Under/over-voltage disconnect:
-
185V/260V
-
Under/Over-voltage reconnect:
-
190V/258V
-
Spike Protection:
-
160J
-
Wait Time:
-
10secs to 10mims
-
MOQ:
-
10pcs
1.Description of AVS 3P
The output is a single volt-free changeover contact, rated 16A. This is intended to an external contactor, control circuit, start/stop system or alarm. If the voltage on any one phase goes above or below the pre-set limits(the 'window'), then the AVS will switch off. Once the voltage returns within the indow limits, the AVS will wait for a pre-set time, and continue to check the voltages, before automatically turning the load on. The over voltage, under voltage and delay settings are all adjustable using controls in the terminal compartment of the AVS 3P. If the voltage is not in the range of 185V-260V(320V-450V three phase). The electronic and electrical equipment are likely to be damaged.
| Nominal Voltage | 230V |
| Current Rating | 16Amps |
| Frequency | 50/60Hz |
| Under-voltage Disconnect | 185/260V |
| Under-voltage Reconnect | 190/258V |
| Spike Protection | 160J |
| Wait Time | 10secs to 10mims |
| Weight | 150g |
| Measurement | 42x30x48cm |
| PCS/CTN | 30 |

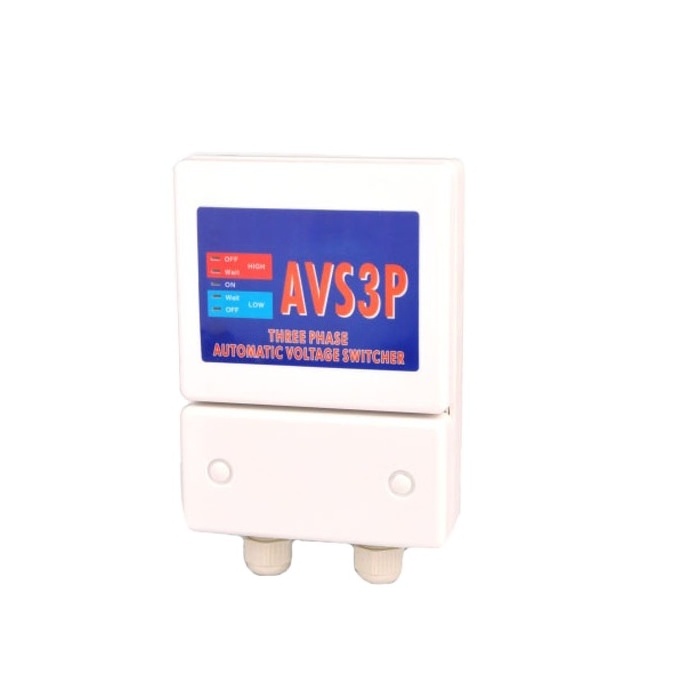

2.Pictures of
AVS 3P
