Quick Details
-
Filling Accuracy:
-
0.001
-
Voltage:
-
220V/110V/380V/440V
-
Place of Origin:
-
China
-
Brand Name:
-
supermax
-
Dimension(L*W*H):
-
1800*800*2400mm
-
Weight:
-
300 KG
-
Name:
-
Beer keg washer and filler machine equipment
-
Keywords:
-
Beer Can Filling Sealing Machine
-
After-sales Service Provided:
-
Online support
-
Material:
-
SUS304/SUS316
-
Control system:
-
PLC,HMI or Touch panel;Semi-automatic
-
Heating method:
-
Electric/steam
-
Payment Way:
-
TT,L/C,ONE-TOUCH,Trade Assurance
-
Service:
-
Local installation and training service supplied
-
Certification:
-
CE ISO
Quick Details
-
Machinery Capacity:
-
Other
-
Packaging Material:
-
Wood
-
Filling Material:
-
Beer, Water
-
Filling Accuracy:
-
0.001
-
Voltage:
-
220V/110V/380V/440V
-
Place of Origin:
-
China
-
Brand Name:
-
supermax
-
Dimension(L*W*H):
-
1800*800*2400mm
-
Weight:
-
300 KG
-
Name:
-
Beer keg washer and filler machine equipment
-
Keywords:
-
Beer Can Filling Sealing Machine
-
After-sales Service Provided:
-
Online support
-
Material:
-
SUS304/SUS316
-
Control system:
-
PLC,HMI or Touch panel;Semi-automatic
-
Heating method:
-
Electric/steam
-
Payment Way:
-
TT,L/C,ONE-TOUCH,Trade Assurance
-
Service:
-
Local installation and training service supplied
-
Certification:
-
CE ISO
Product Information

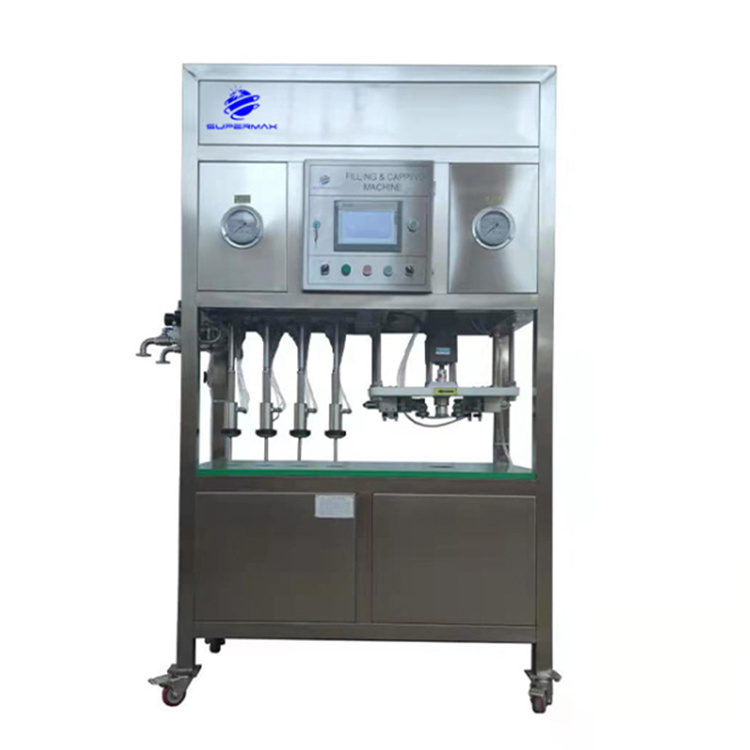

Function: Filler beer cans
1. Main features:
1, programmable controller whole process automatic control.
2, PLC adopts Germany Siemens.
3. Adopt 7-inch touch screen.
4, according to customers to provide bottle type (330/500/1LPET/1.5LPET/1L tinplate, etc.)
5. All parameters can be modified without shutdown.
6, The flling machine buffer tank into the wine and CO2 standby pressure automatic control.
7, the equipment flling area operation with automatic and manual control procedures.
8, equipment wine loss can be ignored, the flling amount is consistent.
9, the highest output of similar equipment.
10, with automatic CO2 pressure standby function.
11. Customized 4heads, 6 heads, 8heads.
|
Machine Size
|
1285mm*650mm*19800mm
|
|
Packing size
|
1420mm*720mm*2150mm
|
|
Net weight
|
155kg
|
|
Gross weight
|
233kg
|
|
Filling method
|
Upright filling
|
|
Capacity
|
300-400 cans/h
|
|
voltage
|
3phase 380V 50Hz or customized
|
|
Beer loss
|
5＜‰
|
|
Buffer tank capacity
|
25L
|
|
Buffer tank
|
with goggles at both ends
|
|
Buffer tank
|
with insulation layer
|
|
Beer pressure
|
0.12～0.15Mpa
|
|
Total power
|
300W
|
|
CO2 pressure
|
≥0.2Mpa
|
|
Cylinder valve pressure
|
0.4～0.5Mpa
|
|
Cylinder valve pressure
|
0.4～0.5Mpa
|
|
CO2 filling pressure valve pressure
|
0.1～0.15Mpa
|
